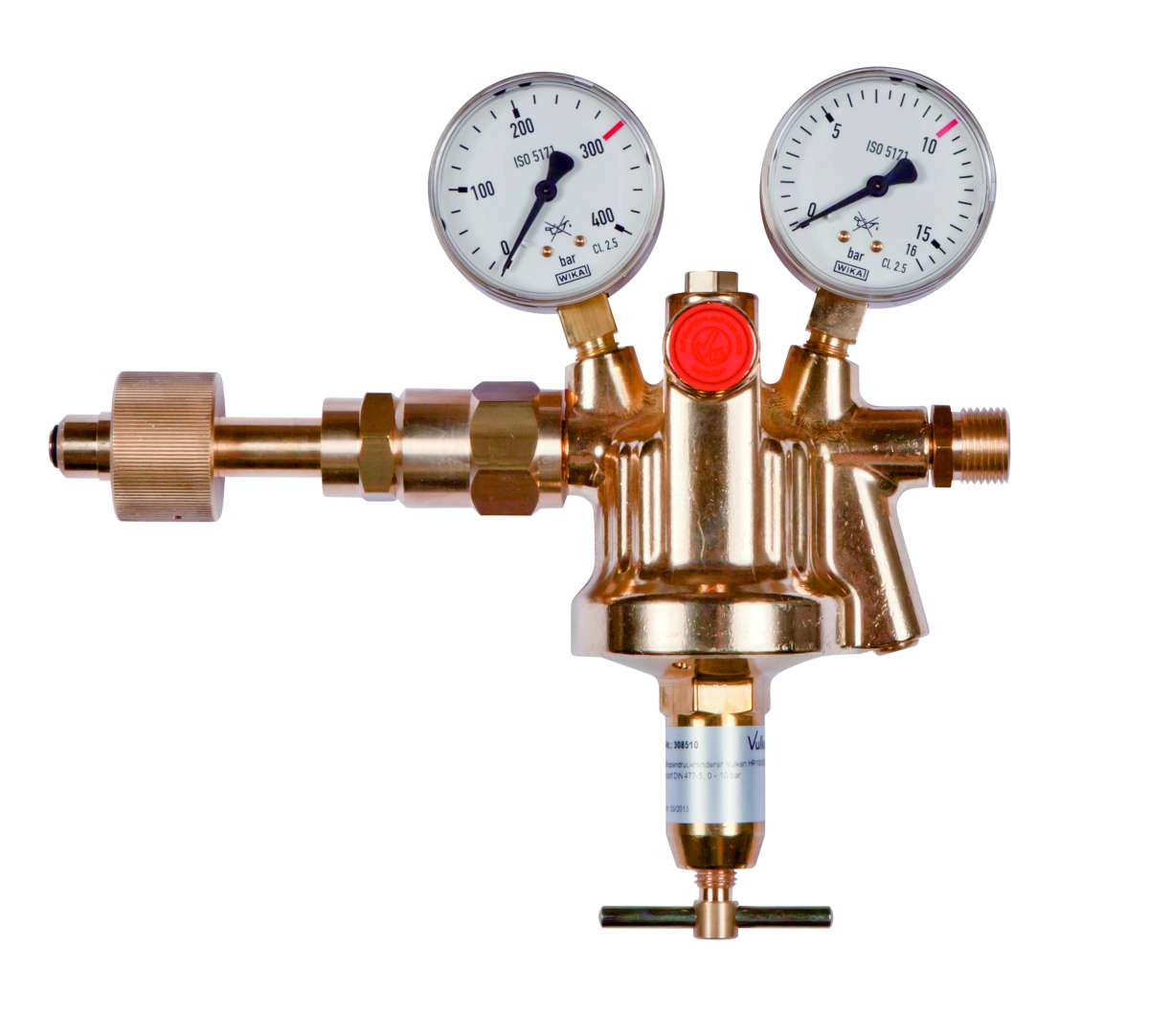

Main ribbed regulator Vulkan HR10/200 Effect Compressed air, 0-10 bar

Main ribbed pressure reducer Vulkan HR10/200 Effect compressed air, 0-10 bar according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure under all working conditions, with safety pressure gauges according to DIN ISO 5171. Maximum inlet pressure: 200 bar. Output pressure: 0 – 10 bar adjustable. Maximum output: 90 Nm?/h at 10 bar back pressure. Inlet: G 5/8 RH screw according to DIN 477-1, No. 13. Outlet: G1/2RHak according to DIN EN 560. Inlet pressure gauge: 0 – 315/200 bar. Outlet pressure gauge: 0 – 16/10 bar. Width x Height x Depth: 240 x 220 x 85 mm. This main ribbed pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 207518 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 207518-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 207518-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 207518-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 207518-8M for Technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 207518-10M For technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 207518-12M For technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 207518-15M For technical gases up to 4.5, with standard membrane, compression fitting VA 15mm 207518-18M For technical gases up to 4.5, with standard membrane, compression fitting VA 18mm 207518-MM For pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 207518-MM-800 For pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 207518-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 207518-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 207518-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 207518-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 207518-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 207518-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 207518-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
