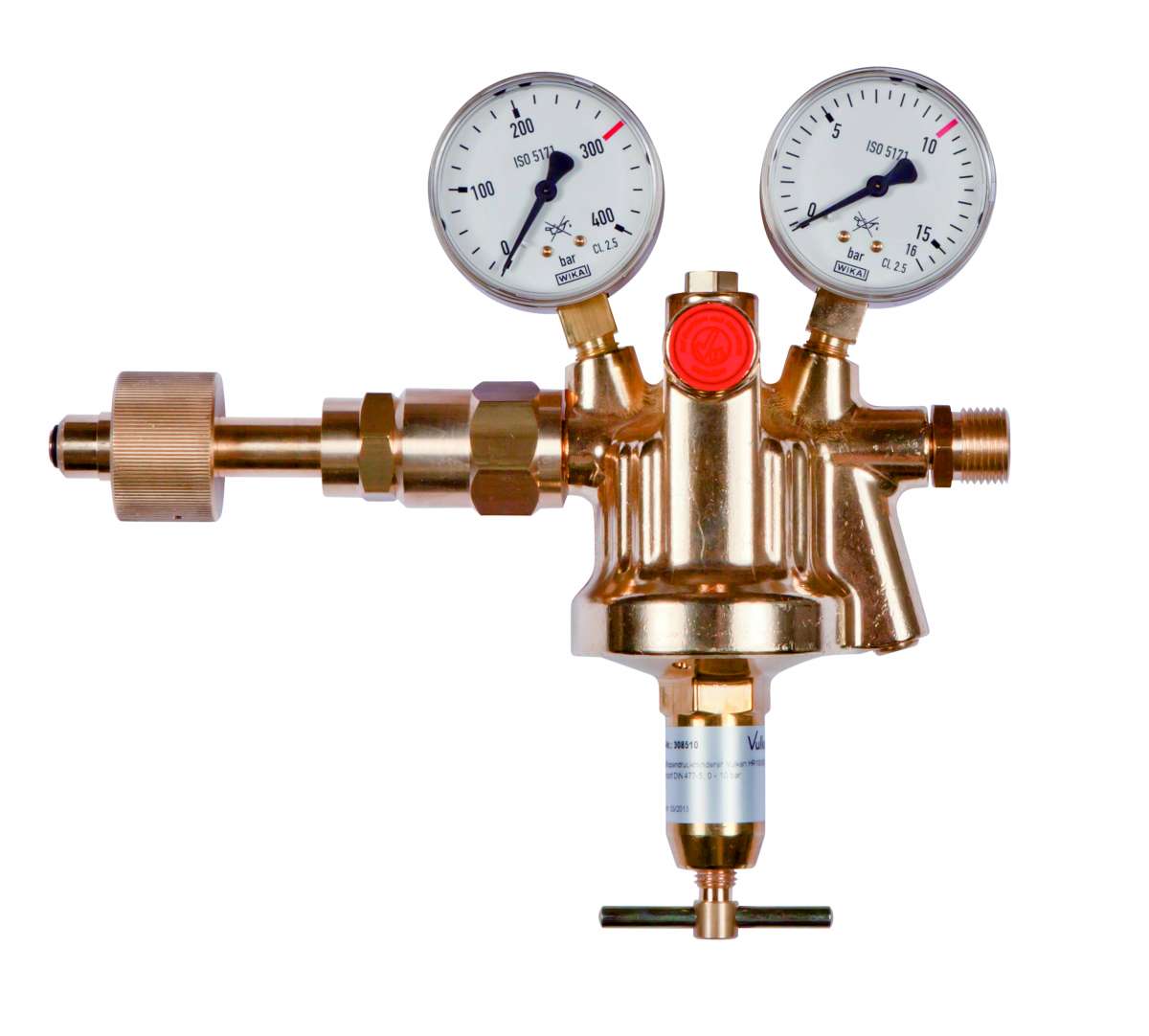

Main ribbed regulator Vulkan HR10/200 Effect Helium, 0-10 bar

Main finned pressure reducer Vulkan HR10/200 Effect Helium, 0-10 bar according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant outlet pressure under all operating conditions, with safety gauges according to DIN ISO 5171. Maximum inlet pressure: 200 bar. Output pressure: 0 – 10 bar adjustable. Maximum output: 90 Nm³/h air at 10 bar outlet pressure. Inlet: W21.8x1/14RH U-nut according to DIN 477-1, No. 6. Outlet: G1/2RHak according to DIN EN 560. Inlet pressure gauge: 0 – 315/200 bar. Outlet pressure gauge: 0 – 16/10 bar. Width x Height x Depth: 240 x 220 x 85 mm. This main finned pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 20651826 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 20651826-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 20651826-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 20651826-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 20651826-8M for technical gases up to 4.5, with standard membrane Compression fitting VA 8mm 20651826-10M for technical gases up to 4.5, with standard membrane Compression fitting VA 10mm 20651826-12M for technical gases up to 4.5, with standard membrane Compression fitting VA 12mm 20651826-15M for technical gases up to 4.5, with standard membrane Compression fitting VA 15mm 20651826-18M for technical gases up to 4.5, with standard membrane Compression fitting VA 18mm 20651826-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 20651826-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 20651826-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 20651826-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 20651826-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 20651826-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 20651826-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 20651826-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 20651826-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
