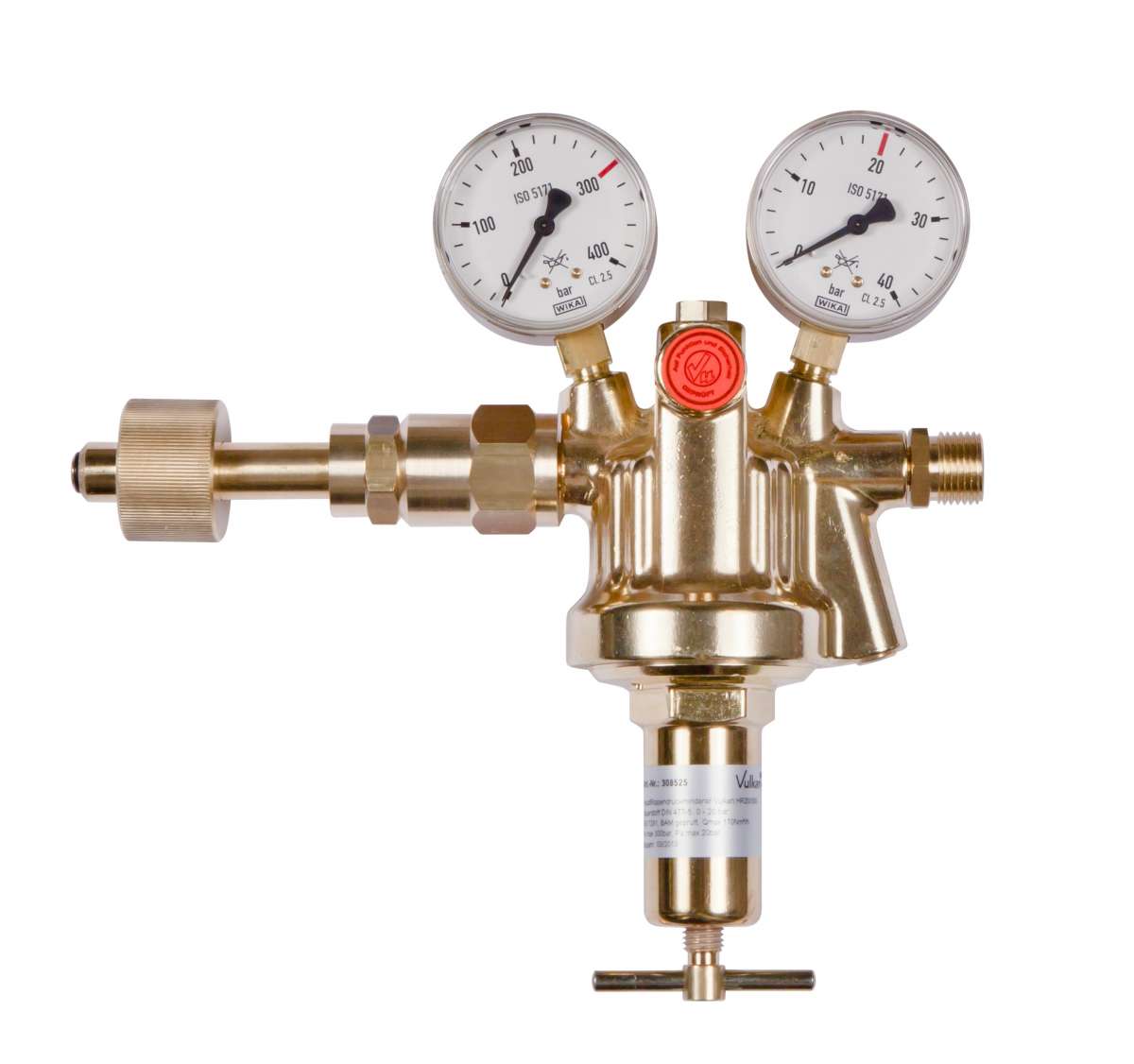

Main ribbed regulator Vulkan HR20/200 EFFECT, 0 -20bar, 170 Nm?/h

Main ribbed pressure reducer Vulkan HR20/200 EFFECT oxygen, 0-20 bar, 170 Nm?/h according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure under all working conditions, burnout tested according to ISO 7291, with safety gauges according to ISO 5171. Maximum inlet pressure: 200 bar. Output pressure: 0 - 20 bar adjustable. Maximum output: 170 Nm?/h compressed air at 20 bar back pressure. Inlet: G3/4 RHf U-nut according to DIN 477-1, No. 9. Outlet: G 1/2 RHak according to EN 560. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 40/20 bar. Width x Height x Depth: 240 x 240 x 85 mm. This main ribbed pressure reducer is Available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 208527 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 208527-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 208527-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 208527-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 208527-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 208527-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 208527-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 208527-15M for technical gases up to 4.5, with standard membrane compression fitting VA 15mm 208527-18M for technical gases up to 4.5, with standard membrane compression fitting VA 18mm 208527-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 208527-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 208527-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 208527-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 208527-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 208527-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 208527-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm 208527-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 15mm 208527-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 18mm
