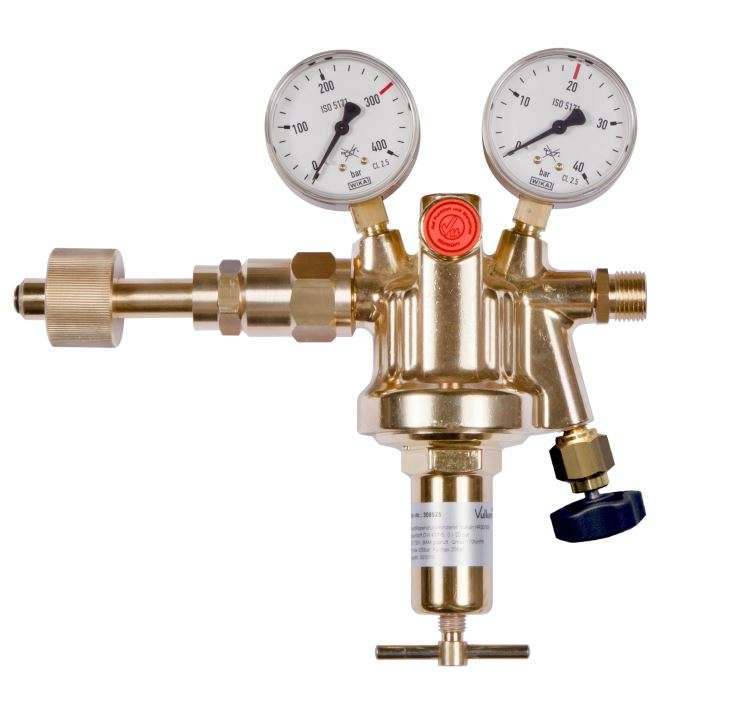

Main ribbed pressure reducer Vulkan HR20/200-SV EFFECT oxygen, 0-20 bar, 170 Nm³/h
Standards & Design:
according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure under all working conditions, burnout tested according to ISO 7291, with safety pressure gauges according to ISO 5171
according to DIN 477-1, No
according to EN 560
Technical data:
• Outlet pressure: 0 - 20 bar adjustable
• Output max: 170 Nm³/h compressed air at 20 bar back pressure
• Inlet: G3/4 RHf U-nut according to DIN 477-1, No
• Outlet: G 1/2 RHak according to EN 560
• Inlet pressure gauge: 0 - 315/200 bar
• Outlet pressure gauge: 0 - 40/20 bar
Dimensions:
Width x Height x Depth: 240 x 240 x 85 mm with mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
Standards & Design:
according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure under all working conditions, burnout tested according to ISO 7291, with safety pressure gauges according to ISO 5171
according to DIN 477-1, No
according to EN 560
Technical data:
• Outlet pressure: 0 - 20 bar adjustable
• Output max: 170 Nm³/h compressed air at 20 bar back pressure
• Inlet: G3/4 RHf U-nut according to DIN 477-1, No
• Outlet: G 1/2 RHak according to EN 560
• Inlet pressure gauge: 0 - 315/200 bar
• Outlet pressure gauge: 0 - 40/20 bar
Dimensions:
Width x Height x Depth: 240 x 240 x 85 mm with mounted Pressure relief/flush valve on 60° outlet #412037, handwheel (star grip) - PA, outlet (side): G1/8 RHif
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
170 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 9 (G 3/4 RH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 40 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
20 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Oxygen (O2)
W (Width) x H (Height) x D (Depth):
240x240x85mm.
