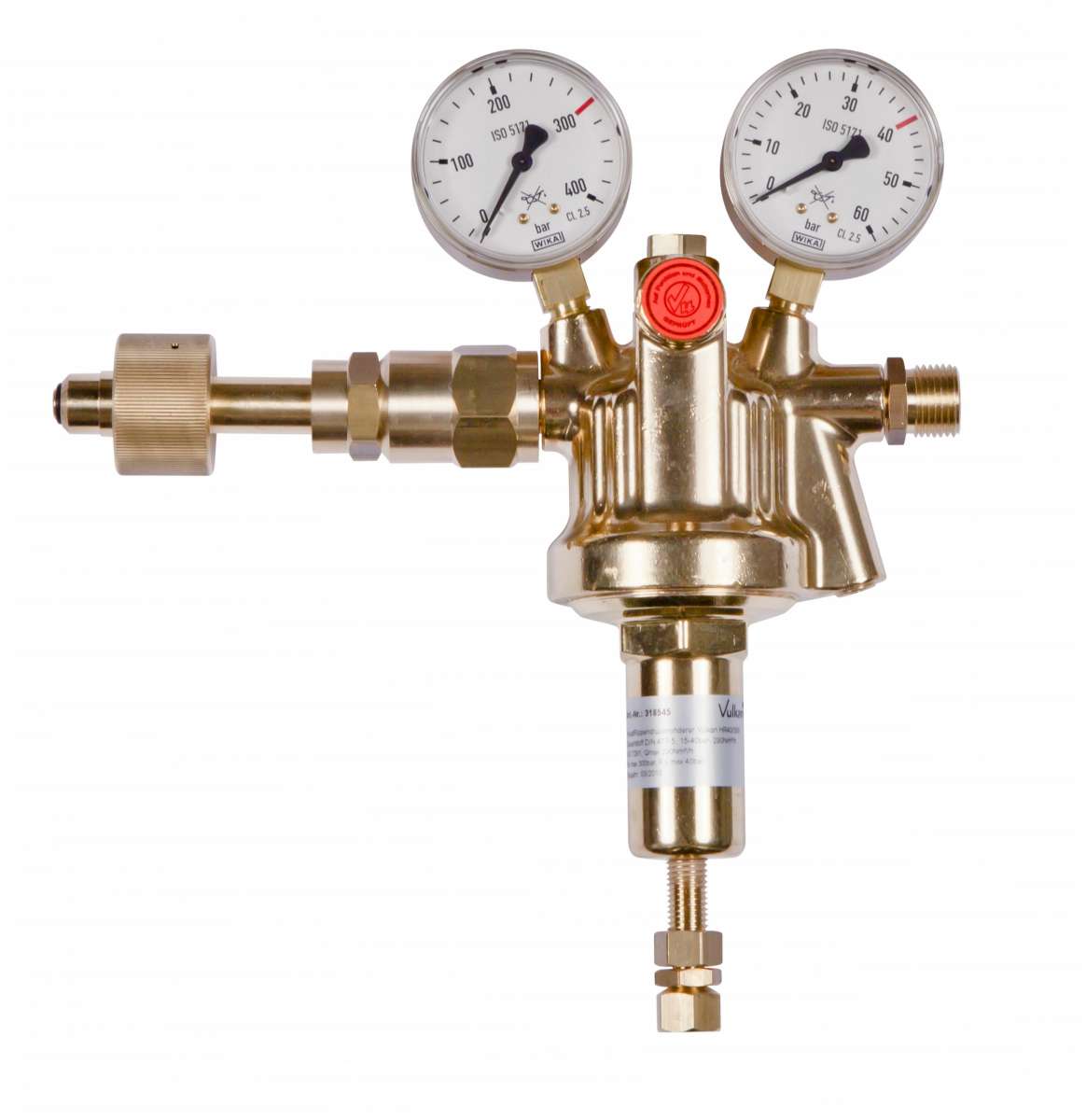

Main ribbed regulator Vulkan HR40/200 EFFECT Compressed air, DIN 477-1, 15-40 bar

Main ribbed pressure reducer Vulkan HR40/200 EFFECT compressed air, DIN 477-1, 15-40 bar according to ISO 7291, single-stage design, burn-out tested according to ISO 7291, with pre-pressure compensation for constant back pressure under all working conditions, with safety gauges according to ISO 5171, max. inlet pressure: 200 bar, outlet pressure: 15 – 40 bar adjustable, max. output: 290 Nm?/h at 40 bar back pressure. Inlet: G 5/8 RH HA screw according to DIN 477-1, No. 13, outlet: G1/2 RHak according to EN 560, inlet pressure gauge: 0 – 315/200 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm. This main ribbed pressure reducer is Available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 207546 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 207546-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 207546-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 207546-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 207546-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 207546-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 207546-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 207546-15M for technical gases up to 4.5, with standard membrane compression fitting VA 15mm 207546-18M for technical gases up to 4.5, with standard membrane compression fitting VA 18mm 207546-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 207546-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 207546-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 207546-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 207546-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 207546-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 207546-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm 207546-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 15mm 207546-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 18mm
