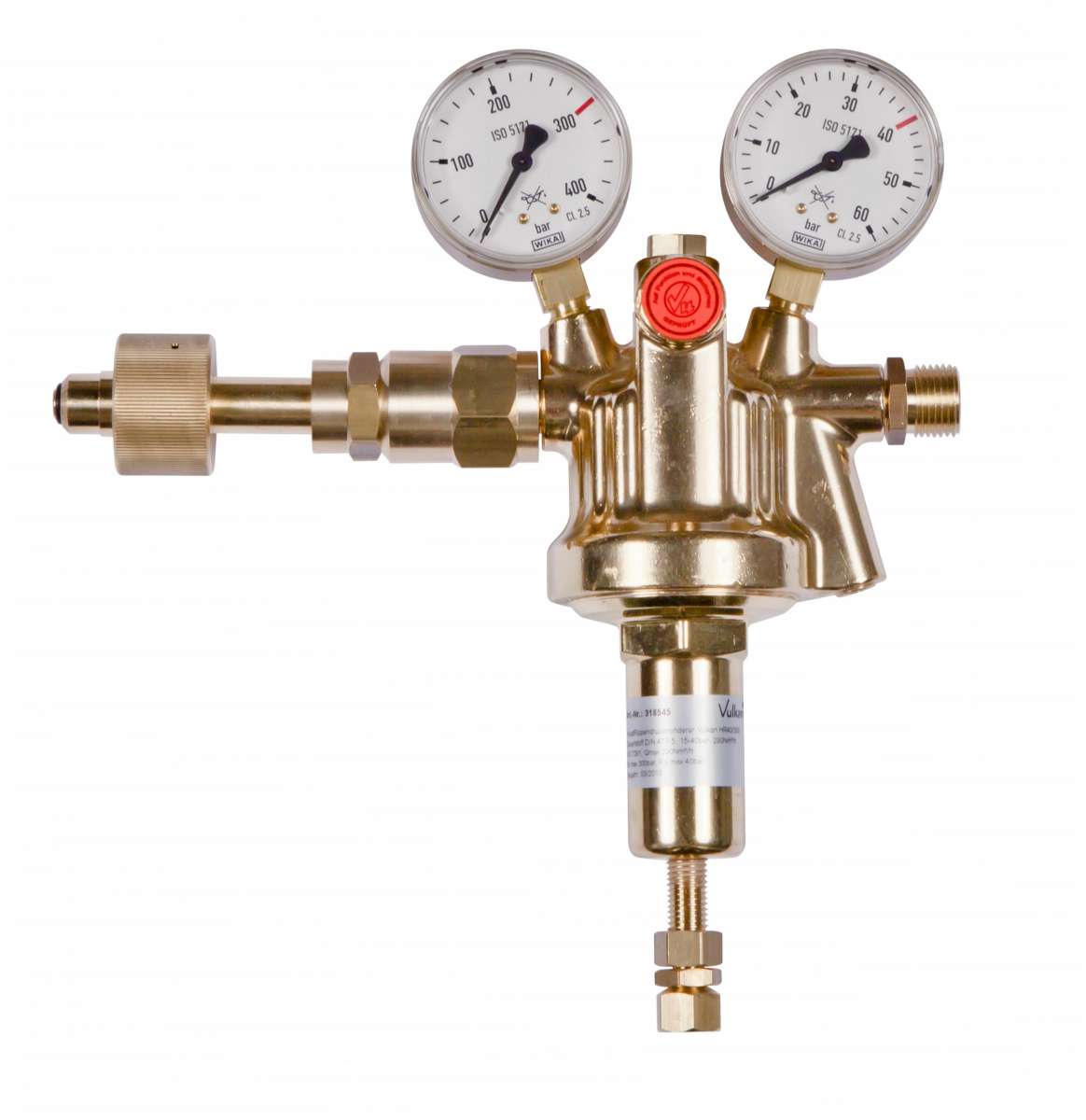

Main ribbed regulator Vulkan HR40/200 EFFECT Oxygen, DIN 477-1, 15-40 bar

Main ribbed pressure reducer Vulkan HR40/200 EFFECT oxygen, DIN 477-1, 15-40 bar according to ISO 7291, single-stage design, burn-out tested according to ISO 7291, with pre-pressure compensation for constant back pressure under all working conditions, with safety pressure gauges according to ISO 5171, with metal diaphragm. Inlet pressure max: 200 bar. Outlet pressure: 15 – 40 bar adjustable. Output max: 290 Nm?/h compressed air at 40 bar back pressure. Inlet: G 3/4 RH U-nut according to DIN 477-1, No. 9. Outlet: G 1/2 RHak according to EN 560. Inlet pressure gauge: 0 – 315/200 bar. Outlet pressure gauge: 0 – 60/40 bar. Width x Height x Depth: 240 x 280 x 85 mm. This main pressure reducer is Available in the following versions, among others: Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 218546-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 218546-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/4" RHk according to EN560 218546-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" RHk according to EN 560 218546-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 218546-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 8mm 218546-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 218546-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm 218546-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 15mm 218546-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 18mm
