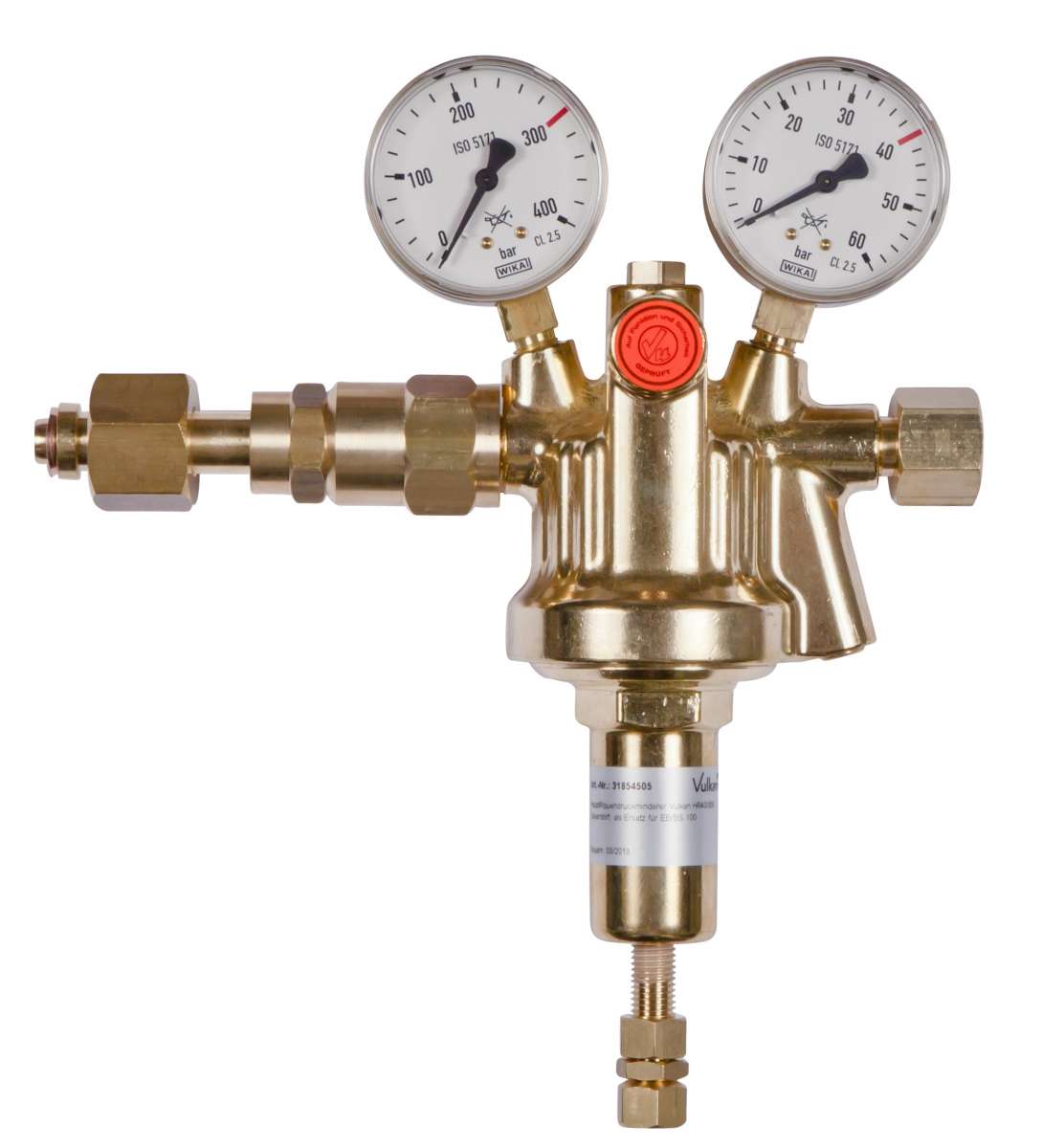

Main fin pressure reducer Vulkan HR40/300 EFFECT Helium, for EB/BS 100/300
Standards & Design:
according to ISO 7291, with metal diaphragm, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, burnout safety tested according to ISO 7291, with safety gauges according to ISO 5171, max
according to DIN EN 560, inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm
Technical data:
• outlet pressure: 15 – 40 bar adjustable, max
• output: 290 Nm?/h air at 40 bar back pressure
• Inlet: M24x1
• outlet: G1/2 RHk U-nut according to DIN EN 560, inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm
• inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm
• outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm
Dimensions:
width x height x depth: 240 x 280 x 85 mm
Standards & Design:
according to ISO 7291, with metal diaphragm, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, burnout safety tested according to ISO 7291, with safety gauges according to ISO 5171, max
according to DIN EN 560, inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm
Technical data:
• outlet pressure: 15 – 40 bar adjustable, max
• output: 290 Nm?/h air at 40 bar back pressure
• Inlet: M24x1
• outlet: G1/2 RHk U-nut according to DIN EN 560, inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm
• inlet pressure gauge: 0 – 400/300 bar, outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm
• outlet pressure gauge: 0 – 60/40 bar, width x height x depth: 240 x 280 x 85 mm
Dimensions:
width x height x depth: 240 x 280 x 85 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
290 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
M 24 x 1.5 RHak (Vareo)
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 60 Bar
Material:
Brass
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
40 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Helium (He)
W (Width) x H (Height) x D (Depth):
240x280x85mm.
