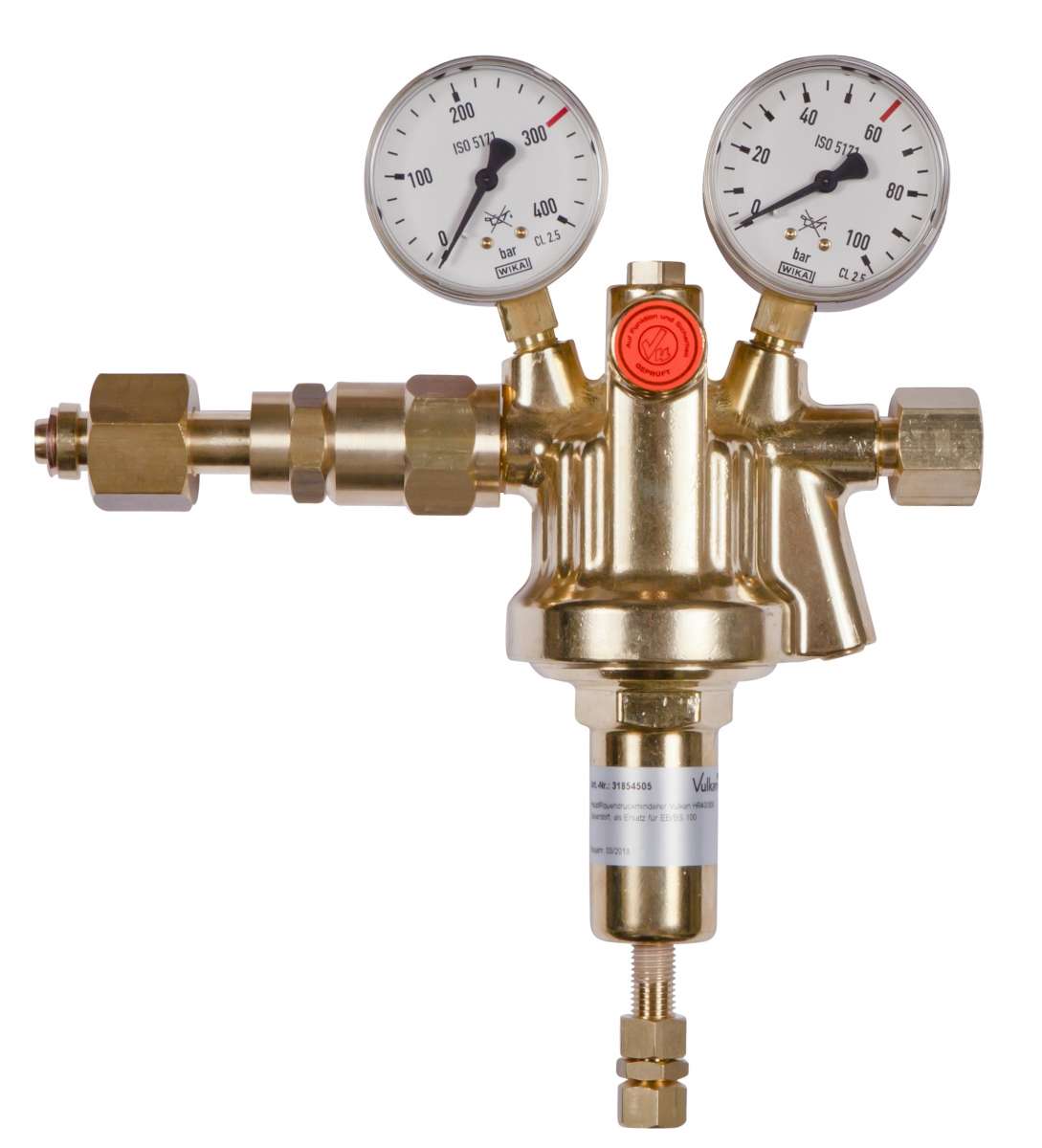

Main ribbed regulator Vulkan HR60/200 EFFECT Helium, DIN 477-1, 15-60 bar

Main finned pressure reducer Vulkan HR60/200 EFFECT Helium, DIN 477-1, 15-60 bar according to ISO 7291, single-stage design, with pre-pressure compensation for constant outlet pressure under all operating conditions, with safety gauges according to ISO 5171, max. inlet pressure: 200 bar, outlet pressure: 15 – 60 bar adjustable, max. output: 450 Nm³/h compressed air at 60 bar outlet pressure. Inlet: W21.8x1/14 RHf U-nut according to DIN 477-1, No. 6, Outlet: G1/2 RHak according to EN 560, inlet pressure gauge: 0 – 315/200 bar, outlet pressure gauge: 0 – 100/60 bar, width x height x depth: 240 x 280 x 85 mm. This main finned pressure reducer is available in the following, among others: Versions: Gas purity/Membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 20656826 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 20656826-800 for technical gases up to 4.5, with standard membrane external thread G1/4" RHk according to EN560 20656826-870 for technical gases up to 4.5, with standard membrane external thread G3/8" RHk according to EN 560 20656826-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 20656826-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 20656826-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 20656826-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 20656826-15M for technical gases up to 4.5, with standard membrane compression fitting VA 15mm 20656826-18M for technical gases up to 4.5, with standard membrane compression fitting VA 18mm 20656826-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 20656826-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 20656826-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 20656826-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 20656826-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 20656826-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 20656826-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 20656826-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 20656826-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
