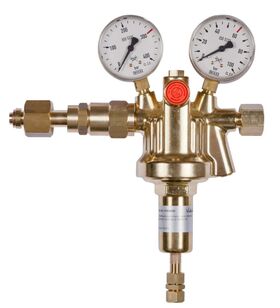

Main ribbed regulator Vulkan HR60/200 EFFECT Inert gas, DIN 477-1, 15-60 bar

Main ribbed pressure reducer Vulkan HR60/200 EFFECT inert gas, DIN 477-1, 15-60 bar according to ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure under all operating conditions, with safety gauges according to ISO 5171, max. inlet pressure: 200 bar, outlet pressure: 15 – 60 bar adjustable, max. output: 450 Nm³/h compressed air at 60 bar back pressure. Inlet: W21.8x1/14 RHf U-nut according to DIN 477-1, No. 6, Outlet: G1/2 RHak according to EN 560, inlet pressure gauge: 0 – 315/200 bar, outlet pressure gauge: 0 – 100/60 bar, width x height x depth: 240 x 280 x 85 mm. This main pressure reducer is available in the following, among others: Versions: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 206568 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 206568-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 206568-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 206568-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 206568-8M for technical gases up to 4.5, with standard membrane Compression fitting VA 8mm 206568-10M for technical gases up to 4.5, with standard membrane Compression fitting VA 10mm 206568-12M for technical gases up to 4.5, with standard membrane Compression fitting VA 12mm 206568-15M for technical gases up to 4.5, with standard membrane Compression fitting VA 15mm 206568-18M for technical gases up to 4.5, with standard membrane Compression fitting VA 18mm 206568-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 206568-MM-800 for pure Gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 206568-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 206568-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 206568-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 206568-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 206568-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 206568-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 206568-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
