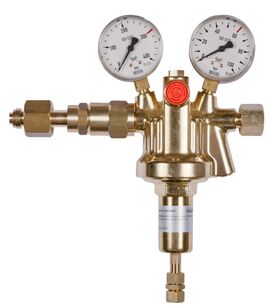

Main ribbed regulator Vulkan HR60/200 EFFECT Oxygen, DIN 477-1, 15-60 bar

Main ribbed pressure reducer Vulkan HR60/200 EFFECT oxygen, DIN 477-1, 15-60 bar according to ISO 7291, single-stage design, burnout safety tested according to ISO 7291, with pre-pressure compensation for constant back pressure under all working conditions, with safety pressure gauges according to ISO 5171, with metal diaphragm. Inlet pressure max: 200 bar. Outlet pressure: 15 – 60 bar adjustable. Output max: 450 Nm?/h compressed air at 60 bar back pressure. Inlet: G 3/4 RH U-nut according to DIN 477-1, No. 9. Outlet: G 1/2 RHak according to EN 560. Inlet pressure gauge: 0 – 315/200 bar. Outlet pressure gauge: 0 – 100/60 bar. Width x Height x Depth: 240 x 280 x 85 mm. This main pressure reducer is Available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 218568 for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 218568-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/4" RHk according to EN560 218568-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" RHk according to EN 560 218568-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 218568-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 218568-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 218568-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 218568-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 218568-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm
