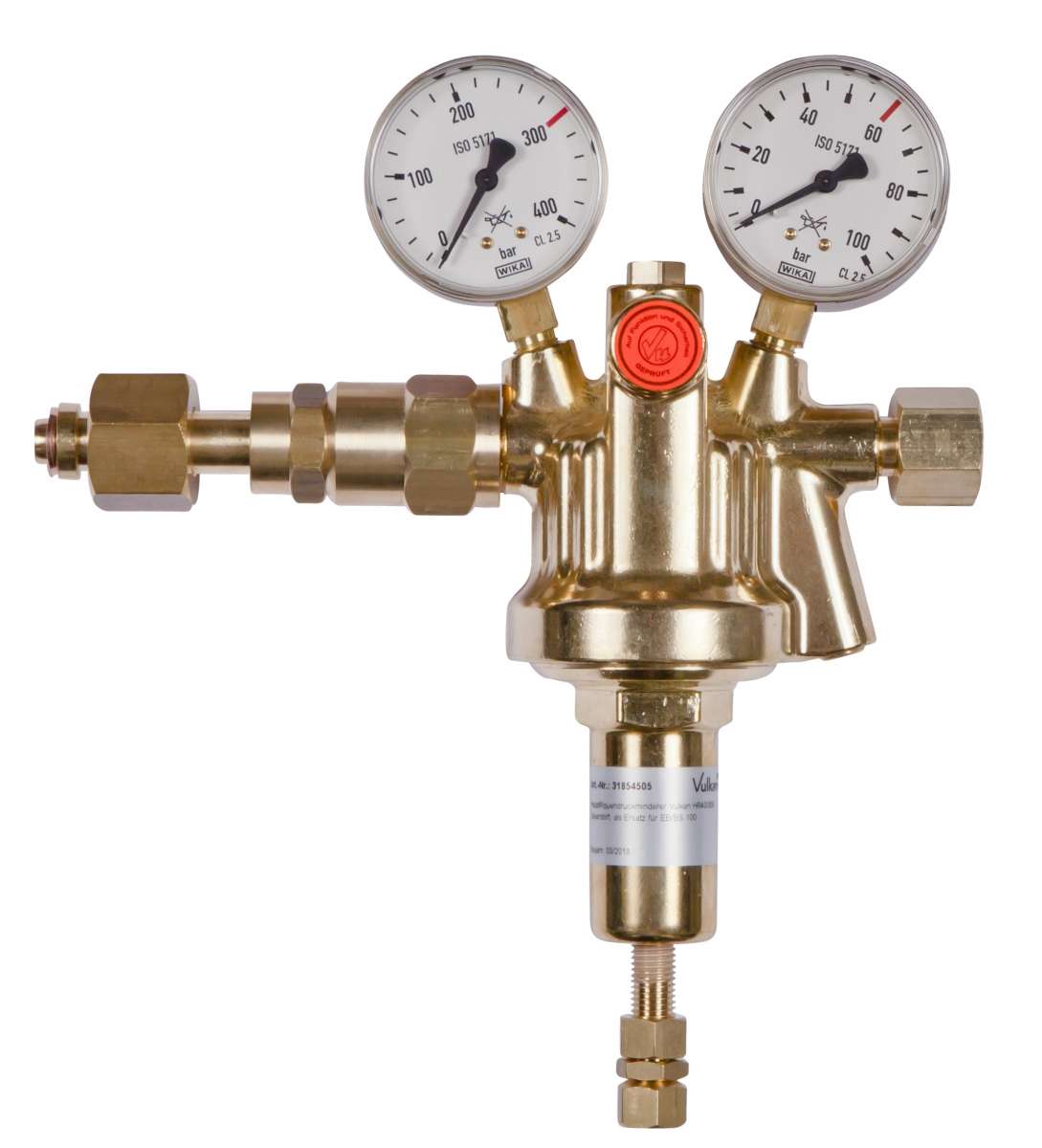

Main ribbed regulator Vulkan HR60/300 EFFECT Oxygen, DIN 477-5, 15-60 bar

Main ribbed pressure reducer Vulkan HR60/300 EFFECT oxygen, DIN 477-5, 15-60 bar according to ISO 7291, single-stage design, burnout safety tested according to ISO 7291, with pre-pressure compensation for constant back pressure under all working conditions, with safety pressure gauges according to ISO 5171, with metal diaphragm. Inlet pressure max: 300 bar. Outlet pressure: 15 – 60 bar adjustable. Output max: 450 Nm³/h compressed air at 60 bar back pressure. Inlet: W30x2RH according to DIN477-5 NR. 59Output: G 1/2 RHak according to DIN EN 560Inlet pressure gauge: 0 – 400/300 barOutlet pressure gauge: 0 – 100/60 barWidth x Height x Depth: 240 x 330 x 85 mm Important note for 300 bar pressure reducers – please check your cylinder connection! Cylinder pressure reducers for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial 3: Difference between 200 bar vs. 300 bar pressure reducers. This main pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 318568 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) G1/2RHak according to EN 560 318568-800 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) External thread G1/4" RHk according to EN560 318568-870 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) External thread G3/8" RHk according to EN 560 318568-6M for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) Compression fitting VA 6mm 318568-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 8mm 318568-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 318568-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm 318568-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 15mm 318568-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 18mm
