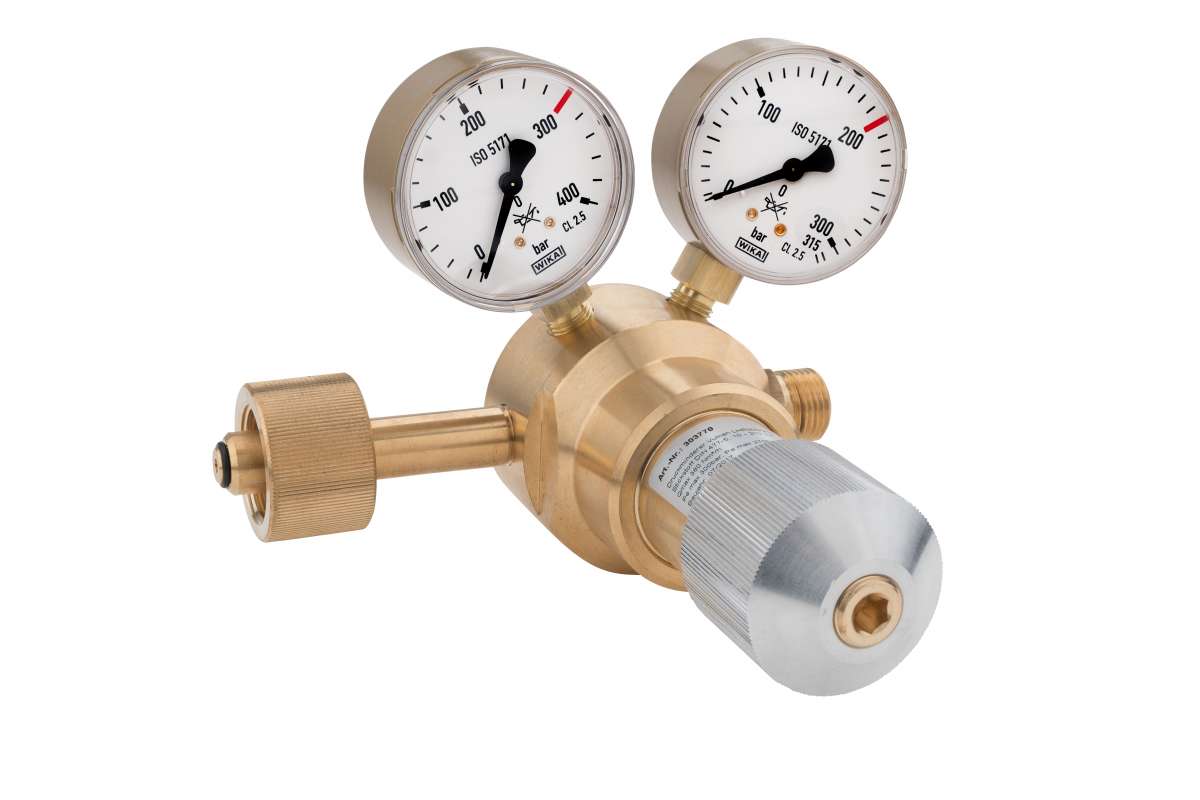

Regulator Vulkan LHR 300/270 Helium DIN 477-5, 10 - 270 bar BSP

Pressure reducer Vulkan LHR 300/270 Helium DIN 477-5, 10 - 270 bar BSP according to ISO 2503, single-stage design, with safety pressure gauges according to ISO 5171. Maximum inlet pressure: 300 bar. Output pressure: 10 - 270 bar adjustable. Maximum output: 380 Nm³/h compressed air at 50 bar outlet pressure. Inlet: W 30x2 RH U-nut according to DIN 477-5. Outlet: G 1/2 RHak according to EN 560. Inlet pressure gauge: 0 - 400 / 300 bar. Outlet pressure gauge: 0 - 400 / 300 bar. Width x height x depth: 150 x 210 x 120 mm. Important note for 300 bar pressure reducers - please check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This main and line pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard:- G1/2RHak according to EN 560 Options (surcharge): Item numberOutlet connection 30671126 G1/2RHak according to EN 560 30671126-800 External thread G1/4" RHk according to EN560 30671126-870 External thread G3/8" RHk according to EN 560 30671126-6M Compression fitting VA 6mm 30671126-8M Compression fitting VA 8mm 30671126-10M Compression fitting VA 10mm 30671126-12M Compression fitting VA 12mm 30671126-15M compression fitting VA 15mm 30671126-18M compression fitting VA 18mm
