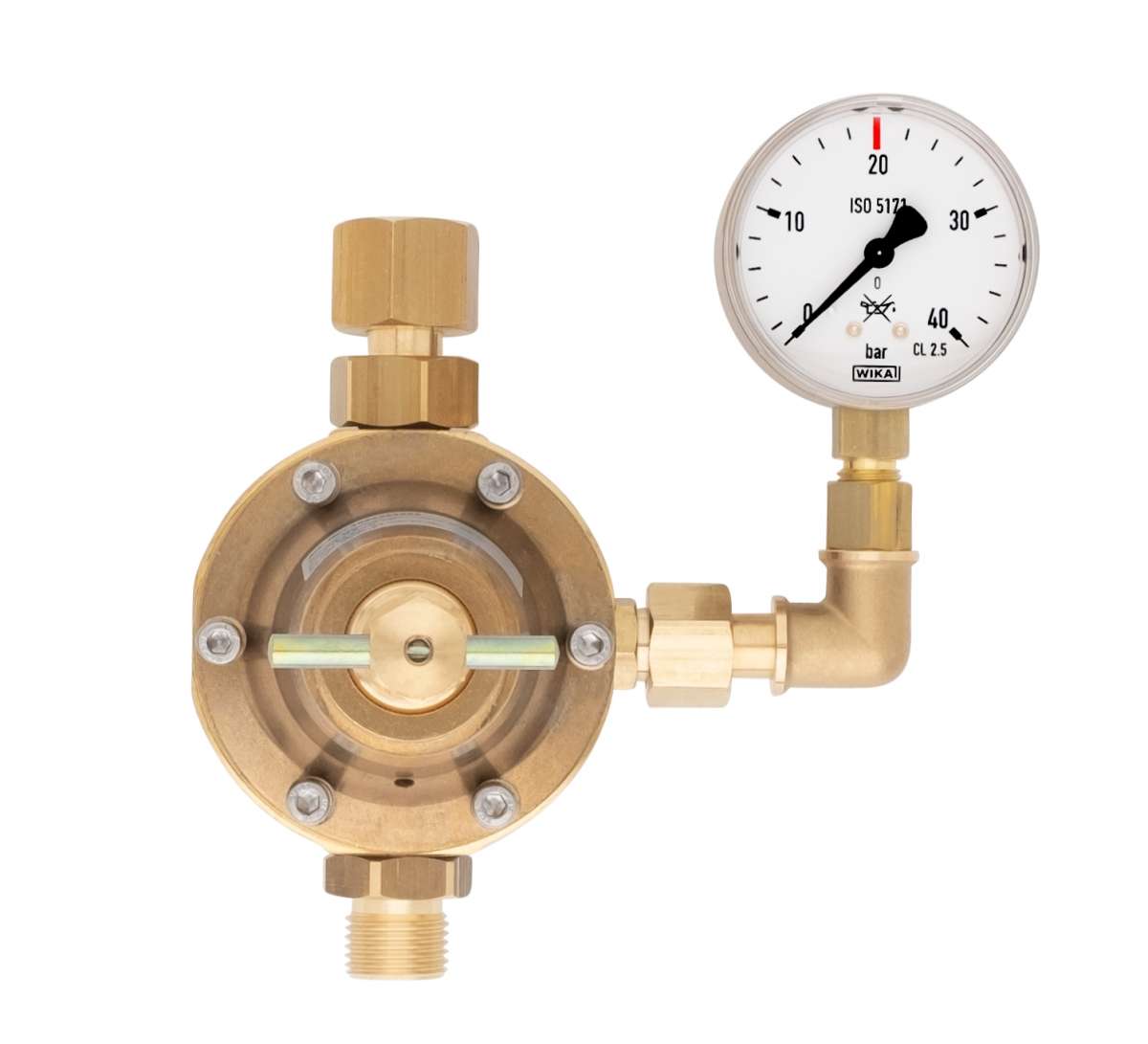

EH40-35 tapping point pressure reducer for fuel gas, 0.5 - 35 bar, with safety pressure gauge according to ISO 5171, with metal diaphragm for gas purity 5.0, inlet pressure: max. 40 bar, outlet pressure: 0.5 - 35 bar, adjustable, max. output: 230 Nm³/h air at 35 bar outlet pressure. Inlet: G1/2 LHk U-nut according to EN 560. Outlet: G1/2 LHak according to EN 560. Working pressure gauge: 0 - 60/40 bar, mounted at a 90° angle. Width x Height x Depth: 90 x 180 x 90 mm. This tapping point pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for pure gases up to gas purity 5.0 with stainless steel diaphragm SS321 (1.4541). Special outlet fitting: Standard: - G1/2 LHak according to EN 560 Options (surcharge): Order number Outlet screw connection 1145303505 G1/2 LHak according to EN 560 1145303505-815 Hose nozzle G3/8" LHk x 6mm 1145303505-814 External thread G3/8" LHk according to EN 560 1145303505-830 External thread G1/2" LHk according to EN 560 1145303505-6M Compression fitting VA 6mm 1145303505-8M Compression fitting VA 8mm 1145303505-10M Compression fitting VA 10mm 1145303505-12M Compression fitting VA 12mm 1145303505-2 Compression fitting VA 1/8" 1145303505-4 Compression fitting VA 1/4"
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
- laser gases
Flow rate:
230 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 60 Bar
Inlet Connection:
G 1/2 RHak (according to EN 560)
Inlet pressure:
40 Bar
Material:
Brass
Outlet Connection:
Compression fitting front 1/4"
Outlet pressure:
40 Bar
Product type:
Tapping Points
Regulation Type:
Single stage
Type of Gas:
Oxygen (O2)
W (Width) x H (Height) x D (Depth):
90x180x90mm.
Outlet pressure:
40Bar
