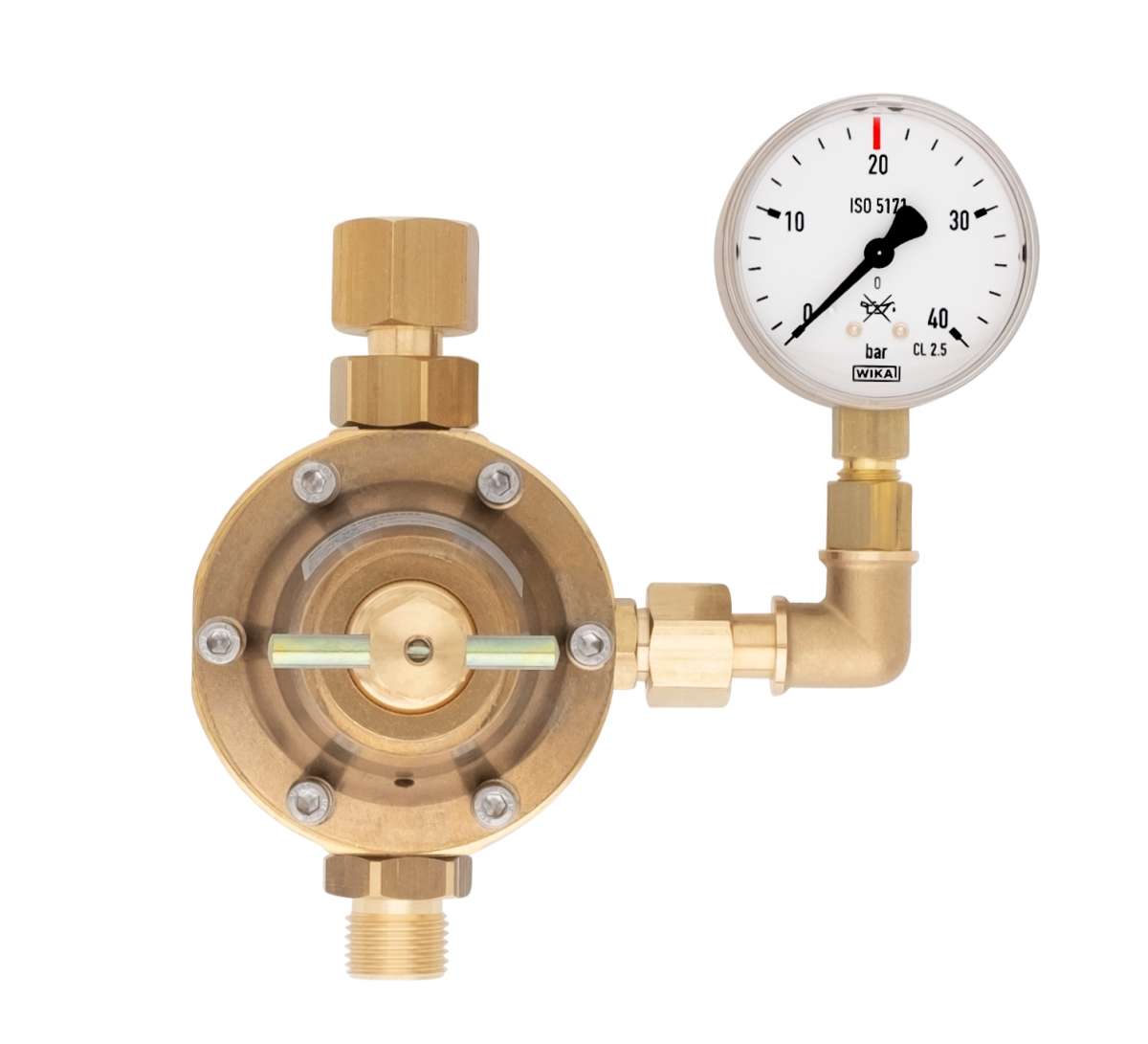

Tapping point pressure reducer EH40-35 Helium 0.5 - 35 bar with safety pressure gauge according to ISO 5171 with metal diaphragm for gas purity 5.0 Inlet pressure: max. 40 bar Outlet pressure: 0.5 - 35 bar adjustable Output max: 230 Nm³/h air at 35 bar outlet pressure Inlet: G1/2 RHk U-nut according to EN 560 Outlet: G1/2 RHak according to EN 560 Working pressure gauge: 0 - 60/40 bar mounted at a 90° angle Width x Height x Depth: 90 x 180 x 90 mm This tapping point pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: for pure gases up to gas purity 5.0 with stainless steel diaphragm SS321 (1.4541) Special outlet fitting: Standard:- G1/2 RHak according to EN 560 Options (surcharge): Item numberOutlet connection 116530263505 G1/2 RHak according to EN 560 116530263505-812 Hose nozzle G3/8" RHk x 9mm 116530263505-800 External thread G1/4" RHk according to EN560 116530263505-870 External thread G3/8" RHk according to EN 560 116530263505-838 External thread G1/2" RHk according to EN 560 116530263505-6M Compression fitting VA 6mm 116530263505-8M Compression fitting VA 8mm 116530263505-10M Compression fitting VA 10mm 116530263505-12M Compression fitting VA 12mm 116530263505-2 Compression fitting VA 1/8" 116530263505-4 Compression fitting VA 1/4"
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
- laser gases
Flow rate:
230 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 60 Bar
Inlet Connection:
G 1/2 RHak (according to EN 560)
Inlet pressure:
60 Bar
Material:
Brass
Outlet Connection:
Compression fitting front 12 mm
Outlet pressure:
40 Bar
Product type:
Tapping Points
Regulation Type:
Single stage
Type of Gas:
Oxygen (O2)
W (Width) x H (Height) x D (Depth):
90x180x90mm.
Outlet pressure:
40Bar
