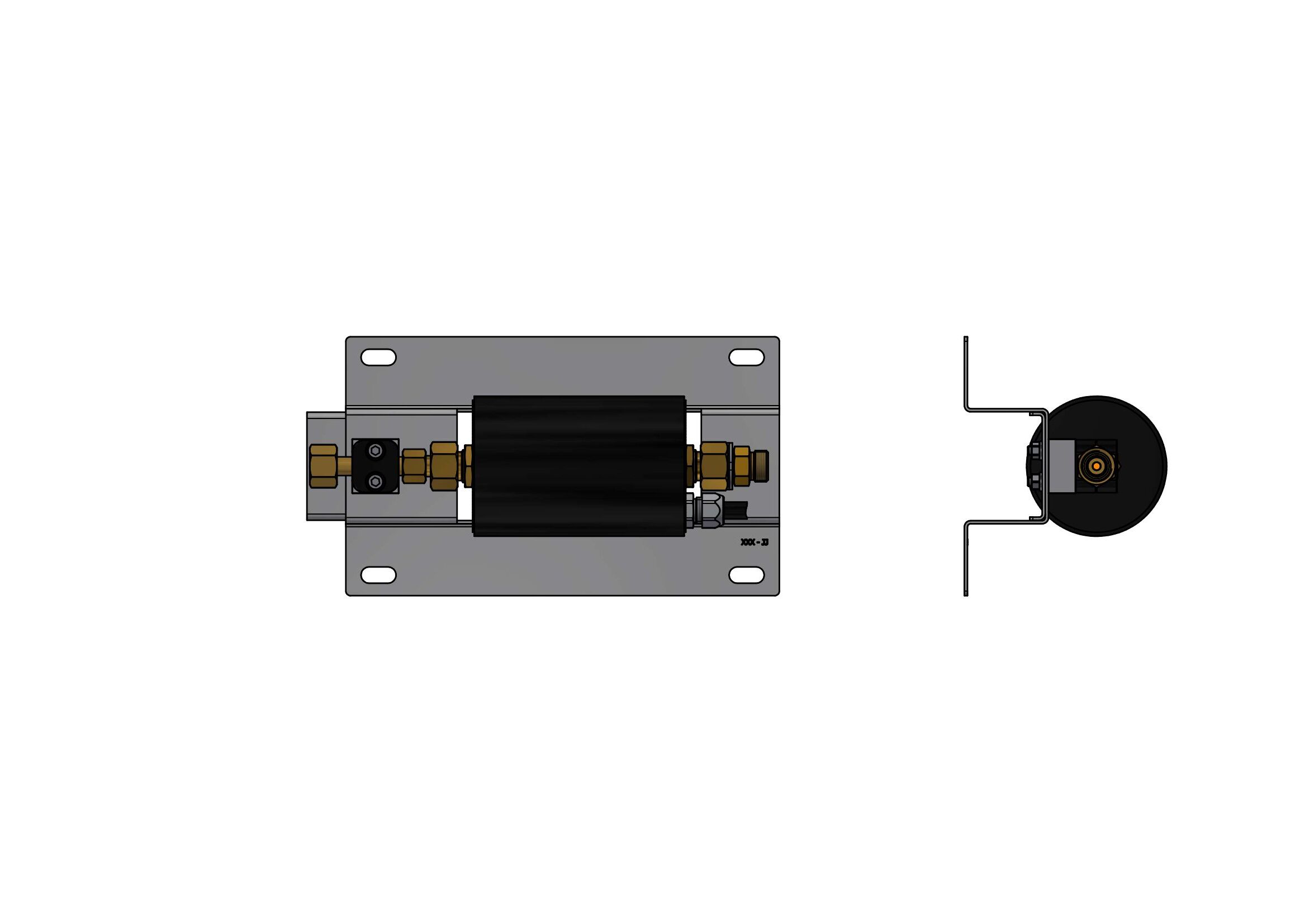

to pre heat the gas in the high pressure area,consisting of:
gas preheater GPH 200, PN 300, heating power 200 W, protection class housing: IP65, plug: IP44, supply voltage 230V/ 50 Hz, complete with electric cable 2m and plug,
inlet M20x1, 5RHak - 12S
outlet M20x1, 5RHk nut 12S
completely assembled on a base plate made of stainless steel
width x height x depth: 305 x 167 x 130 mm
With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "O", additional sticker on foil: "No cost-free redemption when foil is damaged "
The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.
Test report and test report 2.2
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Inlet Connection:
M 20 x 1
Linde Code:
32262400
Material:
Brass
Outlet Connection:
M 20 x 1,5 RHk
Product type:
Accessories and Spare Parts
Standard:
LFGB, Regulation (EC) 1935/2004, Regulation (EC) 2023/2006
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
305 x 167 x 130 mmmm.
