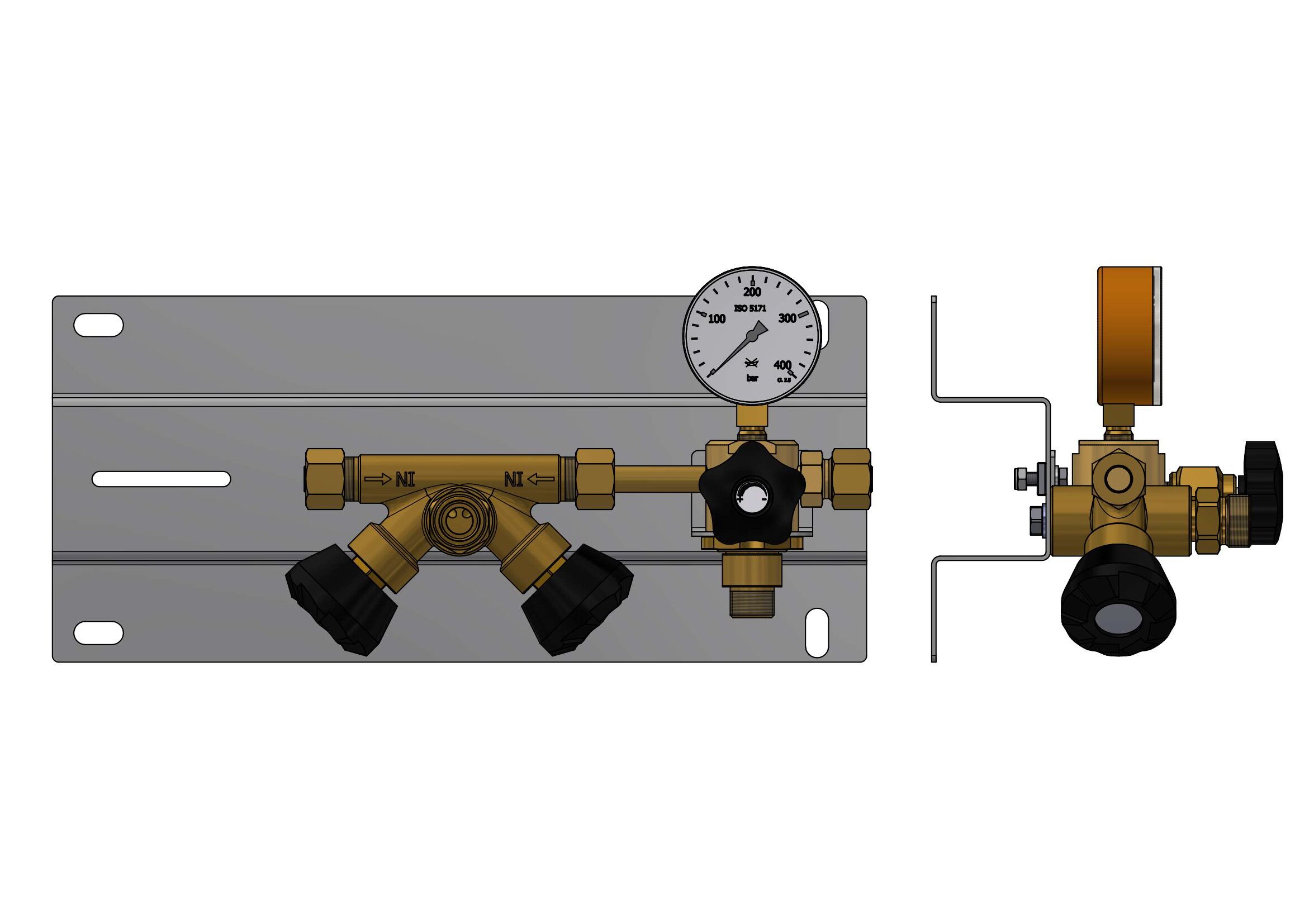

free of oil- and grease, for inert gas, fuel gas and oxygen, adiabatic compression tested,consisting of: HP double shut-off valve, with an input with sintered filter, non-return valve, purge valve and high-pressure gauge and connection for a cylinder/bundle manifold module, completely mounted on stainless steel base plate
inlet: M 20x1,5 RHak -12S usuage for 1 cylinder or bundles
outlet: M 24 x 1.5 RHak - 16S to connect a main pressure regulator
width x height x depth: 370 x 205 x 160 mm
With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "O",
The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.
Test report and test report 2.2
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Inlet Connection:
M 20 x 1,5 RHak
Linde Code:
32492400
Material:
Brass
Non-return valve:
Outlet Connection:
M 24 x 1,5 RHak
Product type:
Gas Panels (Manifolds)
Purge valve:
Shut off valve:
Standard:
LFGB, Regulation (EC) 1935/2004, Regulation (EC) 2023/2006
Temperature range:
-20 up to +60 °C
Type of Gas:
Inert gases(mixture)
W (Width) x H (Height) x D (Depth):
370 x 205 x 160 mmmm.
