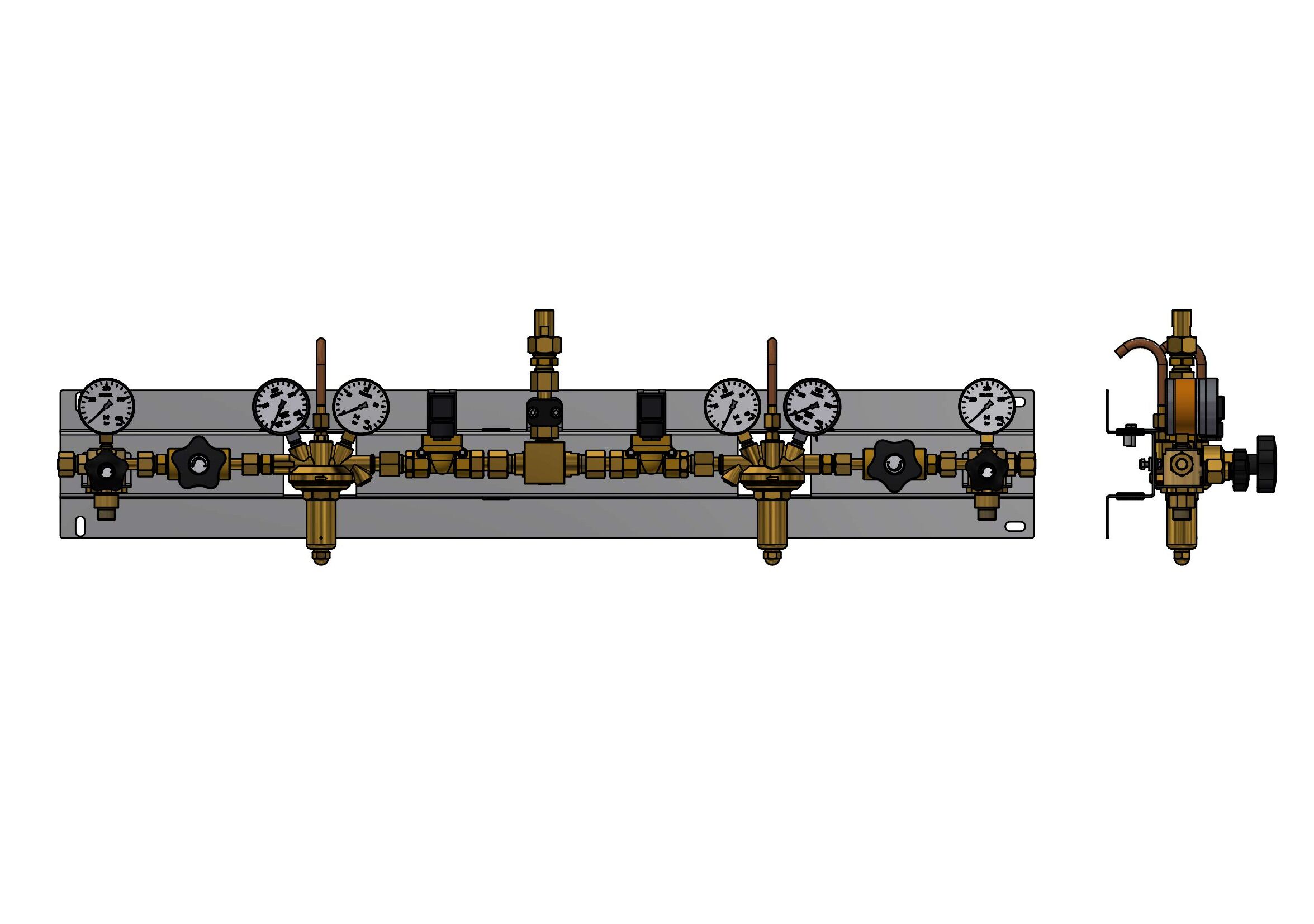

Linde Automatic manifold 300 bar FBA/BBA-21-AUM-300-15-75-H2/FG - EX

free of oil- and grease, for hydrogen and forming gas, consisting of: 2 HP shut-off valve, 2 pressure regulator H20 acc to ISO 7291, single stage, with metal diaphragm and HP-contact gauges with inductive-contact (NO), electric cable blue, length 2.000mm

2 solenoid valves 230VAC,

1 double non return valve and

2 distribution blocks, each with an input with sintered filter, non-return valve, purge valve and high-pressure gauge and connection for a cylinder/bundle manifold module, completely mounted on stainless steel base plate

inlet pressure max: 300 bar

outlet pressure: 15 bar fixed

flow max: 75 Nm³/h air at 15 bar outlet pressure

inlet: 2 x M 20x1,5 RHak -12S usuage for 2x1 cylinders or bundles

outlet: G 3/4 RH x 18 mm soldered bush

inlet gauge: 0 – 400/300 bar

outlet gauge: 0 – 40/20 bar

width x height x depth: 1095 x 300 x 195 mm

With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "H", additional sticker on foil: "No cost-free redemption when foil is damaged "

The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.

Test report and test report 2.2

with warning note:"not to use with oxygen"
