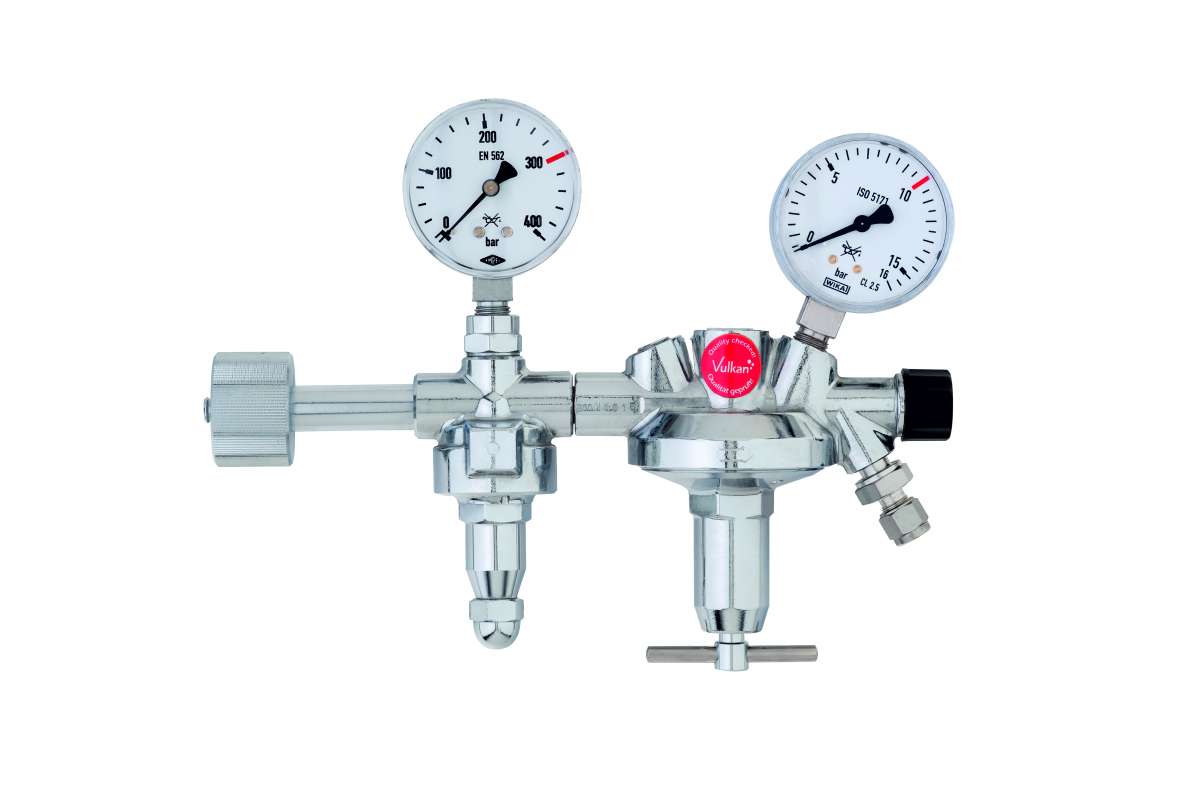

Cylinder pressure reducer - 2-stage - Sigma 2BCH series 2BCH-2-SK1R-009-PI315- PI005B-MA-VM6 Brass, bright chrome-plated Gas type: Oxygen Inlet pressure: 200 bar Control range: 0-3.5 bar Gas cylinder connection with hexagon nut
Standards & Design:
according to DIN 477-1 No
Technical data:
• Outlet: 6 mm compression fitting
• Inlet pressure gauge: 0 to 315 bar Back pressure gauge: -1 to 5 bar 2 relief valves Outlet: 6 mm compression fitting
Standards & Design:
according to DIN 477-1 No
Technical data:
• Outlet: 6 mm compression fitting
• Inlet pressure gauge: 0 to 315 bar Back pressure gauge: -1 to 5 bar 2 relief valves Outlet: 6 mm compression fitting
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Ultrapure gases
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 9 (G 3/4 RH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
-1 to 5 Bar
Material:
Brass
Outlet Connection:
G 3/8 LH x 9 mm (hose grommet)
Outlet pressure:
3,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Double stage
Relief valve:
Type of Gas:
Oxygen (O2)
