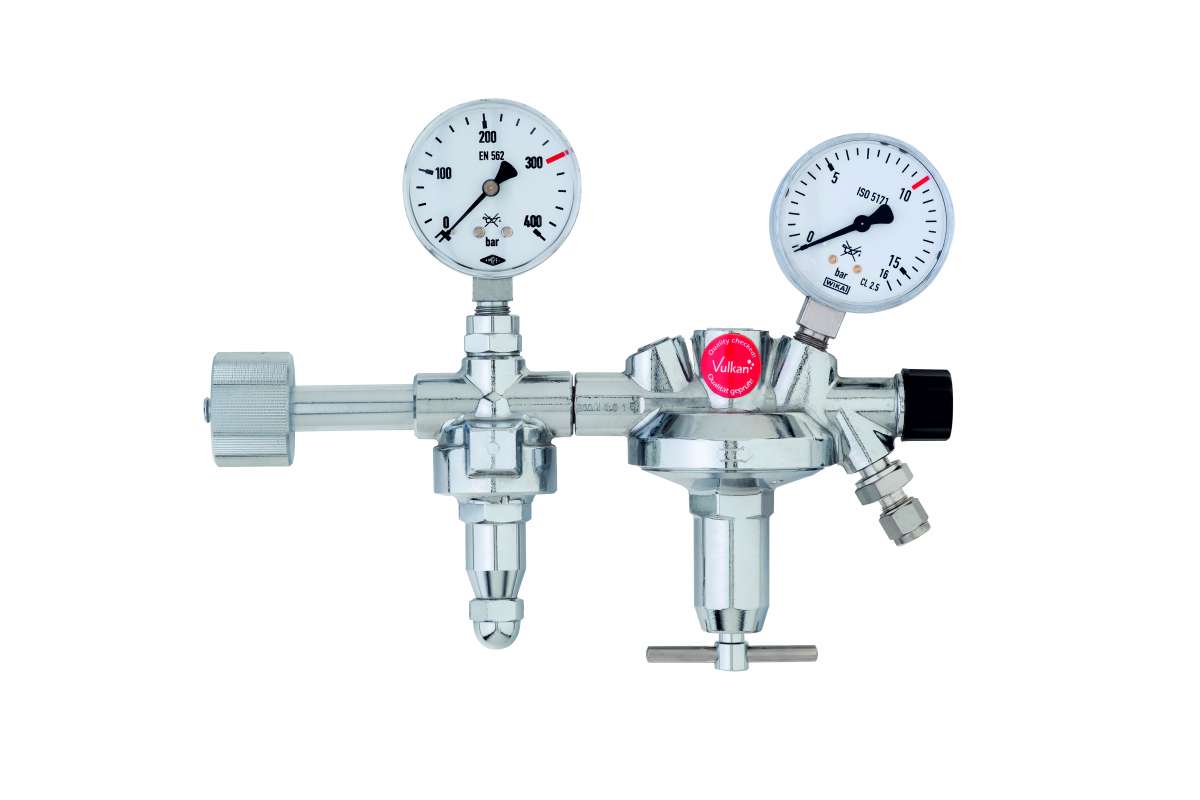

Vulkan F10/2 300 Effect LabLine Oxygen Cylinder Pressure Reducer 0-10 bar. Completely chrome-plated with metal diaphragms for gas purity 5.0
Standards & Design:
according to DIN EN ISO 2503, Class 3
Two-stage design, with safety gauges according to DIN EN ISO 5171
according to DIN 477-5 No
according to DIN 477 Part 5 and are NOT backward compatible
Technical data:
• Maximum inlet pressure: 300 bar
• outlet pressure
• Output pressure: 0-10 bar, adjustable
• Inlet: W30x2RH U-nut according to DIN 477-5 No
• Outlet: 6 mm stainless steel compression fitting
Dimensions:
Width x Height x Depth: 210 x 190 x 75 mm
Standards & Design:
according to DIN EN ISO 2503, Class 3
Two-stage design, with safety gauges according to DIN EN ISO 5171
according to DIN 477-5 No
according to DIN 477 Part 5 and are NOT backward compatible
Technical data:
• Maximum inlet pressure: 300 bar
• outlet pressure
• Output pressure: 0-10 bar, adjustable
• Inlet: W30x2RH U-nut according to DIN 477-5 No
• Outlet: 6 mm stainless steel compression fitting
Dimensions:
Width x Height x Depth: 210 x 190 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
48 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 59 (W 30 x 2 RH 17.3 / 18.7)
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Regulation Type:
Double stage
Type of Gas:
Oxygen (O2)
W (Width) x H (Height) x D (Depth):
210x190x75mm.
