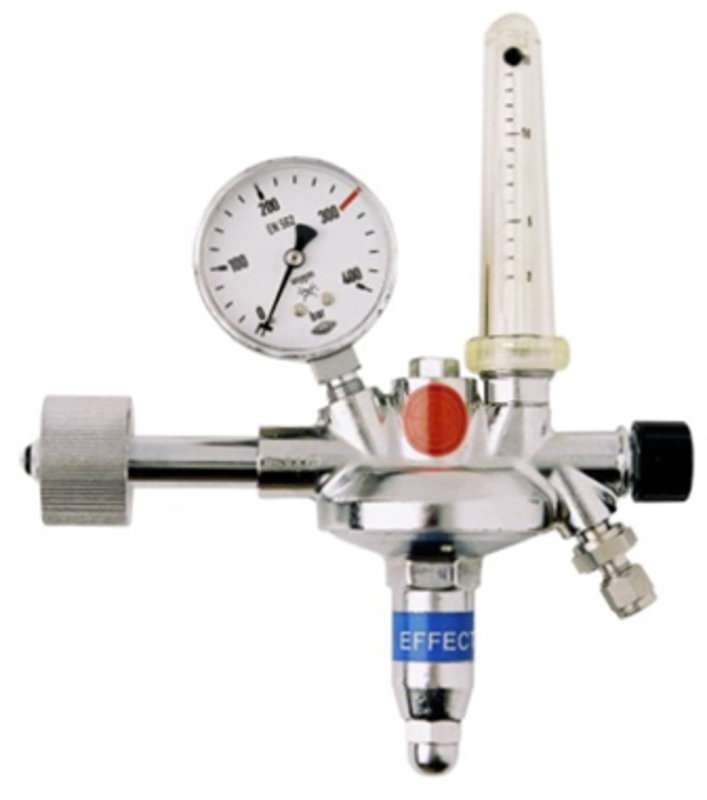

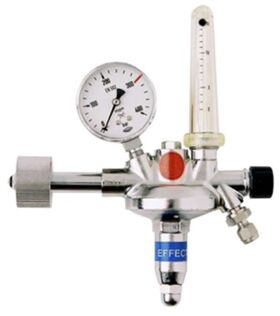

Cylinder pressure reducer Vulkan F10/300 F Effect LabLine Flowmeter Argon 0.9-5.0 Nl/min. LabLine completely chrome-plated with metal diaphragm for gas purity up to 5.0
Standards & Design:
according to EN 13918, Class 10
Single-stage design with flowmeter for monitoring the exact flow rate in Nl/min
according to ISO 5171, with shut-off valve
according to DIN 477-5 No
Functional elements:
• shut-off valve
Technical data:
• Outlet pressure: 4 bar, fixed output
• output
• Inlet: W 21
• Outlet: clamp ring VA 6 mmInlet pressure gauge: 0 - 400/300 barWidth x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
• Inlet pressure gauge: 0 - 400/300 barWidth x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
Standards & Design:
according to EN 13918, Class 10
Single-stage design with flowmeter for monitoring the exact flow rate in Nl/min
according to ISO 5171, with shut-off valve
according to DIN 477-5 No
Functional elements:
• shut-off valve
Technical data:
• Outlet pressure: 4 bar, fixed output
• output
• Inlet: W 21
• Outlet: clamp ring VA 6 mmInlet pressure gauge: 0 - 400/300 barWidth x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
• Inlet pressure gauge: 0 - 400/300 barWidth x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
0,3 Nm³/h
Flowmeter:
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 54 (W30 x 2 RH 15.9 / 20.1))
Inlet pressure:
300 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Argon (Ar)
W (Width) x H (Height) x D (Depth):
210x230x75mm.
