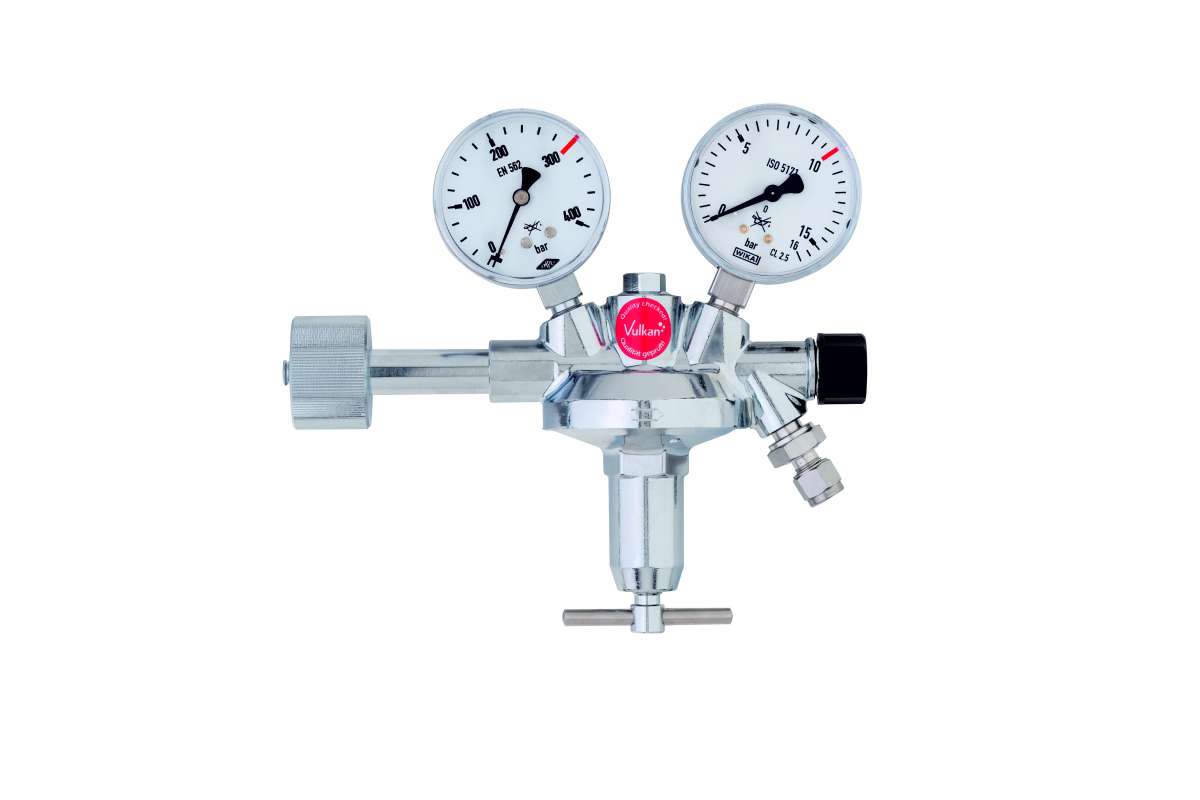

Vulkan F10/300 Effect LabLine Helium cylinder pressure reducer 0-10 bar, completely chrome-plated with metal diaphragm
Standards & Design:
according to DIN EN ISO 2503, single-stage design, with shut-off valve, with pre-pressure compensation for constant back pressure under all working conditions, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 300 bar, outlet pressure: 0-10 bar, adjustable, maximum output: 48 Nm³/h air at 10 bar back pressure
according to DIN 477-5 No
according to DIN 477 Part 5 and are NOT backward compatible
Functional elements:
• shut-off valve, with pre-pressure compensation for constant back pressure under all working conditions, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 300 bar, outlet pressure: 0-10 bar, adjustable, maximum output: 48 Nm³/h air at 10 bar back pressure
Technical data:
• maximum inlet pressure: 300 bar, outlet pressure: 0-10 bar, adjustable, maximum output: 48 Nm³/h air at 10 bar back pressure
• outlet pressure: 0-10 bar, adjustable, maximum output: 48 Nm³/h air at 10 bar back pressure
• output: 48 Nm³/h air at 10 bar back pressure
• Inlet: W30x2RHak U-nut according to DIN 477-5 No
• outlet: 6 mm stainless steel clamp ring, inlet pressure gauge: 0-400/300 bar, outlet pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 75 mm
• inlet pressure gauge: 0-400/300 bar, outlet pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 75 mm
• outlet pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 75 mm
Dimensions:
width x height x depth: 210 x 190 x 75 mm
Standards & Design:
according to DIN EN ISO 2503, single-stage design, with shut-off valve, with pre-pressure compensation for constant back pressure under all working conditions, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 300 bar, outlet pressure: 0-10 bar, adjustable, maximum output: 48 Nm³/h air at 10 bar back pressure
according to DIN 477-5 No
according to DIN 477 Part 5 and are NOT backward compatible
Functional elements:
• shut-off valve, with pre-pressure compensation for constant back pressure under all working conditions, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 300 bar, outlet pressure: 0-10 bar, adjustable, maximum output: 48 Nm³/h air at 10 bar back pressure
Technical data:
• maximum inlet pressure: 300 bar, outlet pressure: 0-10 bar, adjustable, maximum output: 48 Nm³/h air at 10 bar back pressure
• outlet pressure: 0-10 bar, adjustable, maximum output: 48 Nm³/h air at 10 bar back pressure
• output: 48 Nm³/h air at 10 bar back pressure
• Inlet: W30x2RHak U-nut according to DIN 477-5 No
• outlet: 6 mm stainless steel clamp ring, inlet pressure gauge: 0-400/300 bar, outlet pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 75 mm
• inlet pressure gauge: 0-400/300 bar, outlet pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 75 mm
• outlet pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 75 mm
Dimensions:
width x height x depth: 210 x 190 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
48 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 54 (W30 x 2 RH 15.9 / 20.1))
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Helium (He)
W (Width) x H (Height) x D (Depth):
210x190x75mm.
