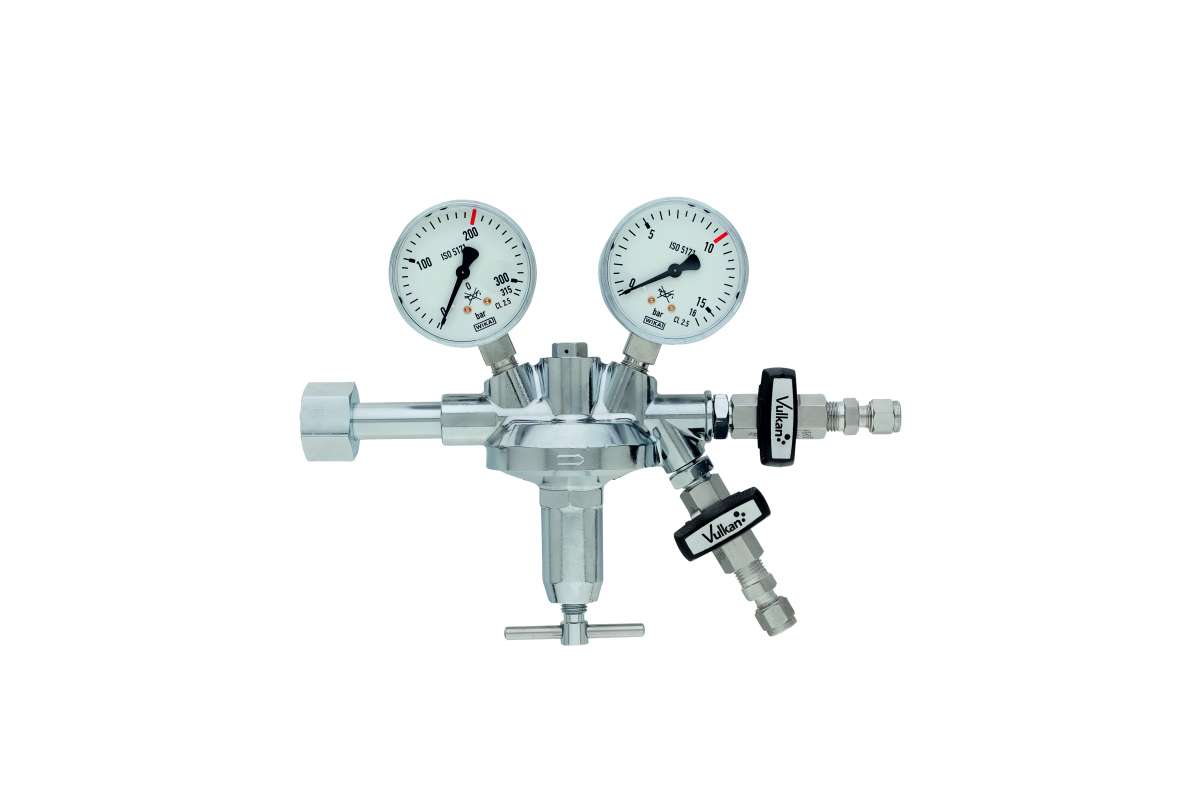

Vulkan F10/300 Effect LabLine LG cylinder pressure reducer for forming gas 0-10 bar. Completely chrome-plated with metal diaphragms for gas purity 5.0
Standards & Design:
according to DIN EN ISO 2503, Class 3, type-tested in accordance with the Pressure Equipment Directive 97/23/EC, single-stage design, with safety gauges according to DIN EN ISO 5171, with vent valve 427 037 in the angled outlet
according to DIN 477-5 No
according to DIN 477 Part 5 and are NOT backward compatible
Technical data:
• Maximum inlet pressure: 300 bar
• outlet pressure
• Output: 0-10 bar adjustable
• Inlet: W30x2LRH U-nut according to DIN 477-5 No
• Outlet: straight with ball valve G1/4 and clamping ring VA 6 mm
• Inlet pressure gauge: 0-400/300
Standards & Design:
according to DIN EN ISO 2503, Class 3, type-tested in accordance with the Pressure Equipment Directive 97/23/EC, single-stage design, with safety gauges according to DIN EN ISO 5171, with vent valve 427 037 in the angled outlet
according to DIN 477-5 No
according to DIN 477 Part 5 and are NOT backward compatible
Technical data:
• Maximum inlet pressure: 300 bar
• outlet pressure
• Output: 0-10 bar adjustable
• Inlet: W30x2LRH U-nut according to DIN 477-5 No
• Outlet: straight with ball valve G1/4 and clamping ring VA 6 mm
• Inlet pressure gauge: 0-400/300
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Blow-off valve:
Class (purpose):
- Laboratory gases
Flow rate:
48 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 57 (W 30 x 2 LH 15.2 / 20.8)
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Forming gases (mixture)
