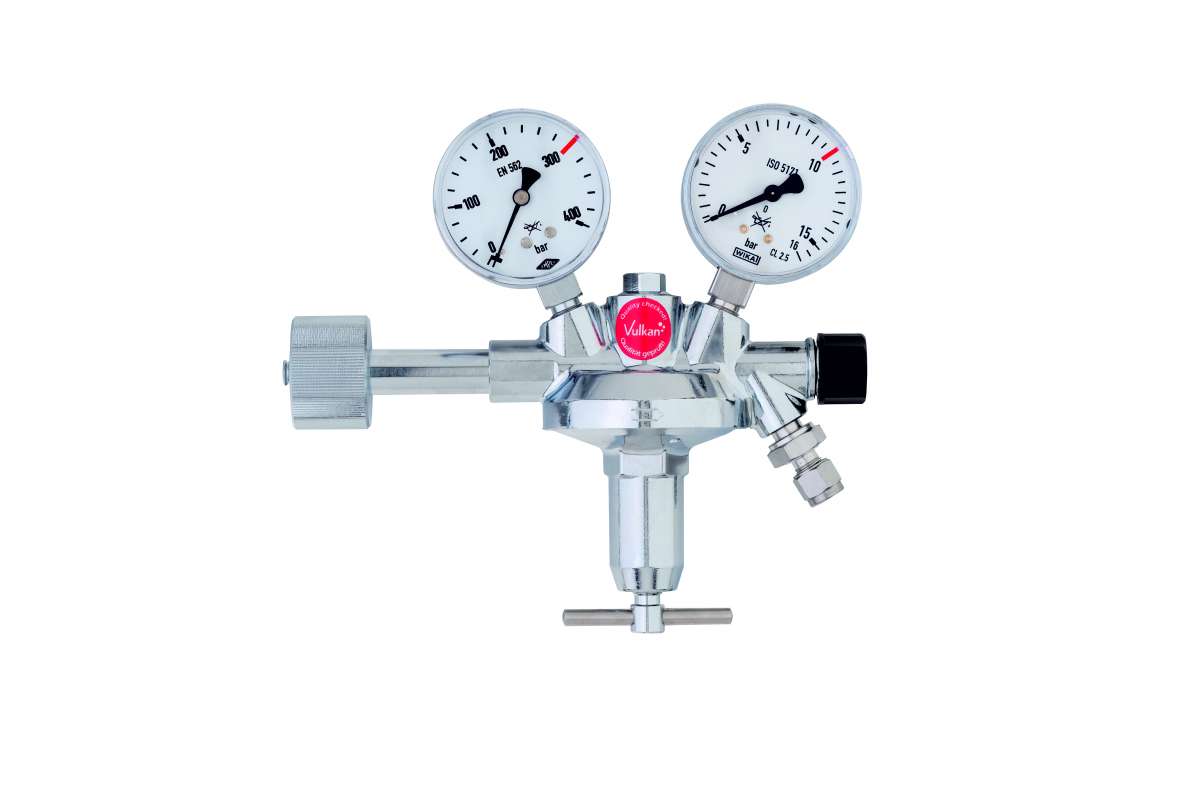

Cylinder pressure reducer Vulkan F10/300 Effect LabLine test gas 0 - 10 bar. Completely chrome-plated with metal diaphragms for gas purity 5.0
Standards & Design:
according to ISO 2503
Single-stage design, with shut-off valve, with safety gauges according to ISO 5171
according to DIN 477-5, No
according to DIN 477 Part 5 and are NOT backward compatible
Functional elements:
• shut-off valve, with safety gauges according to ISO 5171
Technical data:
• Maximum inlet pressure: 300 bar
• Output pressure: 0 - 10 bar adjustable
• Inlet: W 30x2 RHk knurled nut according to DIN 477-5, No
• Outlet: VA compression fitting 6 mm
Dimensions:
Width x Height x Depth: 210 x 190 x 75 mm
Standards & Design:
according to ISO 2503
Single-stage design, with shut-off valve, with safety gauges according to ISO 5171
according to DIN 477-5, No
according to DIN 477 Part 5 and are NOT backward compatible
Functional elements:
• shut-off valve, with safety gauges according to ISO 5171
Technical data:
• Maximum inlet pressure: 300 bar
• Output pressure: 0 - 10 bar adjustable
• Inlet: W 30x2 RHk knurled nut according to DIN 477-5, No
• Outlet: VA compression fitting 6 mm
Dimensions:
Width x Height x Depth: 210 x 190 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
48 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 57 (W 30 x 2 LH 15.2 / 20.8)
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Tracer gases (mixture)
W (Width) x H (Height) x D (Depth):
210x190x75mm.
