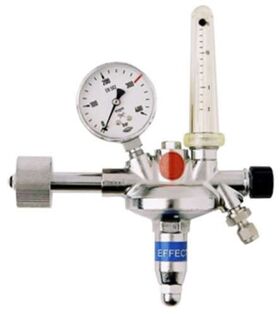

Vulkan F10/300 F Effect LabLine cylinder pressure reducer with flow meter, nitrogen 4-40 Nl/min. Completely chrome-plated with metal diaphragms for gas purity 5.0
Standards & Design:
according to DIN EN 13918, Class 10, single-stage design with flow meter for monitoring the exact flow rate in Nl/min, with upstream pressure compensation for constant downstream pressure when the upstream pressure drops, with safety pressure gauges according to DIN ISO 5171, with shut-off valve
according to DIN 477-5, No
Functional elements:
• shut-off valve
Technical data:
• Maximum inlet pressure: 300 bar
• Outlet pressure: 1
• Output: 4
• Inlet: W30x2RHK U-nut according to DIN 477-5, No
• Outlet: VA clamp ring 6 mmInlet pressure gauge: 0 - 400 / 300 barWidth x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
• Inlet pressure gauge: 0 - 400 / 300 barWidth x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
Standards & Design:
according to DIN EN 13918, Class 10, single-stage design with flow meter for monitoring the exact flow rate in Nl/min, with upstream pressure compensation for constant downstream pressure when the upstream pressure drops, with safety pressure gauges according to DIN ISO 5171, with shut-off valve
according to DIN 477-5, No
Functional elements:
• shut-off valve
Technical data:
• Maximum inlet pressure: 300 bar
• Outlet pressure: 1
• Output: 4
• Inlet: W30x2RHK U-nut according to DIN 477-5, No
• Outlet: VA clamp ring 6 mmInlet pressure gauge: 0 - 400 / 300 barWidth x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
• Inlet pressure gauge: 0 - 400 / 300 barWidth x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm Due to delivery bottlenecks for the flow meters, delivery times may be longer!
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
2,4 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 54 (W30 x 2 RH 15.9 / 20.1))
Inlet pressure:
300 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Nitrogen (N2)
W (Width) x H (Height) x D (Depth):
210x230x75mm.
