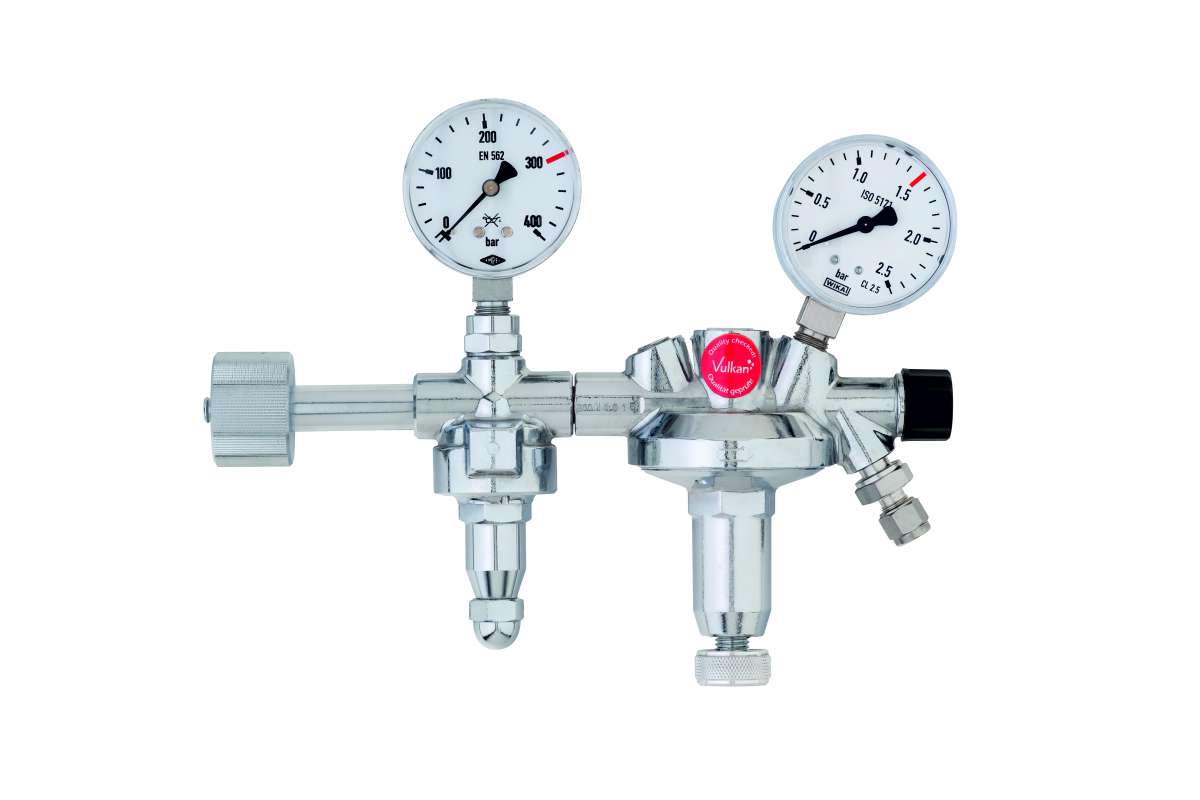

Vulkan F15/2 200 Effect LabLine test gas cylinder pressure reducer 0-1.5 bar. Completely chrome-plated with metal diaphragms for gas purity 5.0
Standards & Design:
according to DIN EN ISO 2503, Class 3
Two-stage design, with safety gauges according to DIN EN ISO 5171
according to DIN 477-1 No
Technical data:
• Maximum inlet pressure: 200 bar
• outlet pressure: 0-1
• output: 8 Nm³/h air at 10 bar outlet pressure
• Inlet: M19x1
• Outlet: 6 mm VA clamp ring
Dimensions:
Width x Height x Depth: 240 x 190 x 75 mm
Standards & Design:
according to DIN EN ISO 2503, Class 3
Two-stage design, with safety gauges according to DIN EN ISO 5171
according to DIN 477-1 No
Technical data:
• Maximum inlet pressure: 200 bar
• outlet pressure: 0-1
• output: 8 Nm³/h air at 10 bar outlet pressure
• Inlet: M19x1
• Outlet: 6 mm VA clamp ring
Dimensions:
Width x Height x Depth: 240 x 190 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Flow rate:
8 Nm³/h
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
Material:
Brass, Chrome-plated
Product type:
Cylinder regulators
Regulation Type:
Double stage
Type of Gas:
Tracer gases (mixture)
W (Width) x H (Height) x D (Depth):
240x190x75mm.
