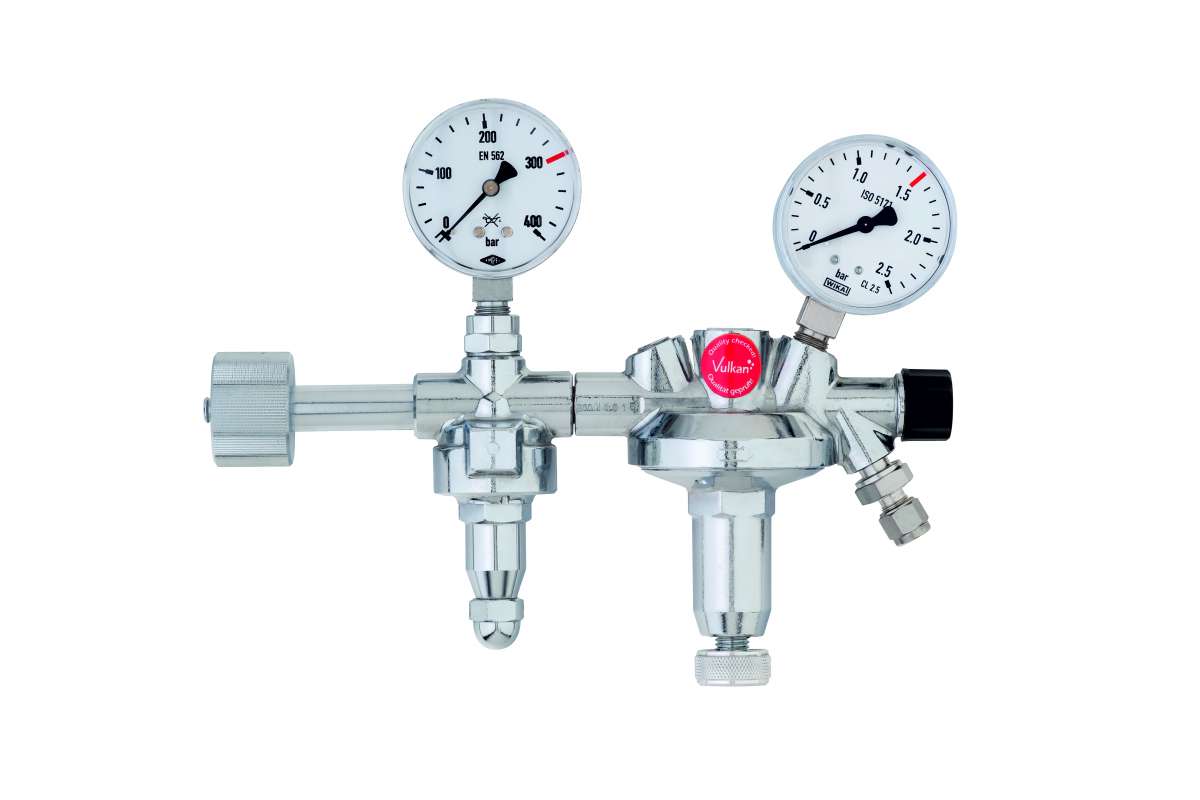

Vulkan F15/2 300 Effect LabLine compressed air cylinder pressure reducer 0 - 1.5 bar. Completely chrome-plated with metal diaphragms for gas purity 5.0
Standards & Design:
according to ISO 2503, Class 0
Two-stage design, with safety gauges according to DIN EN ISO 5171
according to DIN 477-5 No
according to DIN 477 Part 5 and are NOT backward compatible
Technical data:
• Maximum inlet pressure: 300 bar
• outlet pressure
• Output pressure: 0 - 1
• Inlet: W30x2RH U-nut according to DIN 477-5 No
• Outlet: Stainless steel compression fitting 6 mm
Dimensions:
Width x Height x Depth: 240 x 190 x 75 mm
Standards & Design:
according to ISO 2503, Class 0
Two-stage design, with safety gauges according to DIN EN ISO 5171
according to DIN 477-5 No
according to DIN 477 Part 5 and are NOT backward compatible
Technical data:
• Maximum inlet pressure: 300 bar
• outlet pressure
• Output pressure: 0 - 1
• Inlet: W30x2RH U-nut according to DIN 477-5 No
• Outlet: Stainless steel compression fitting 6 mm
Dimensions:
Width x Height x Depth: 240 x 190 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
8 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 56 (W 30 x 2 RH 16.6 / 19.4)
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Outlet pressure:
1,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Double stage
Type of Gas:
Compressed Air (mixture)
W (Width) x H (Height) x D (Depth):
240x190x75mm.
