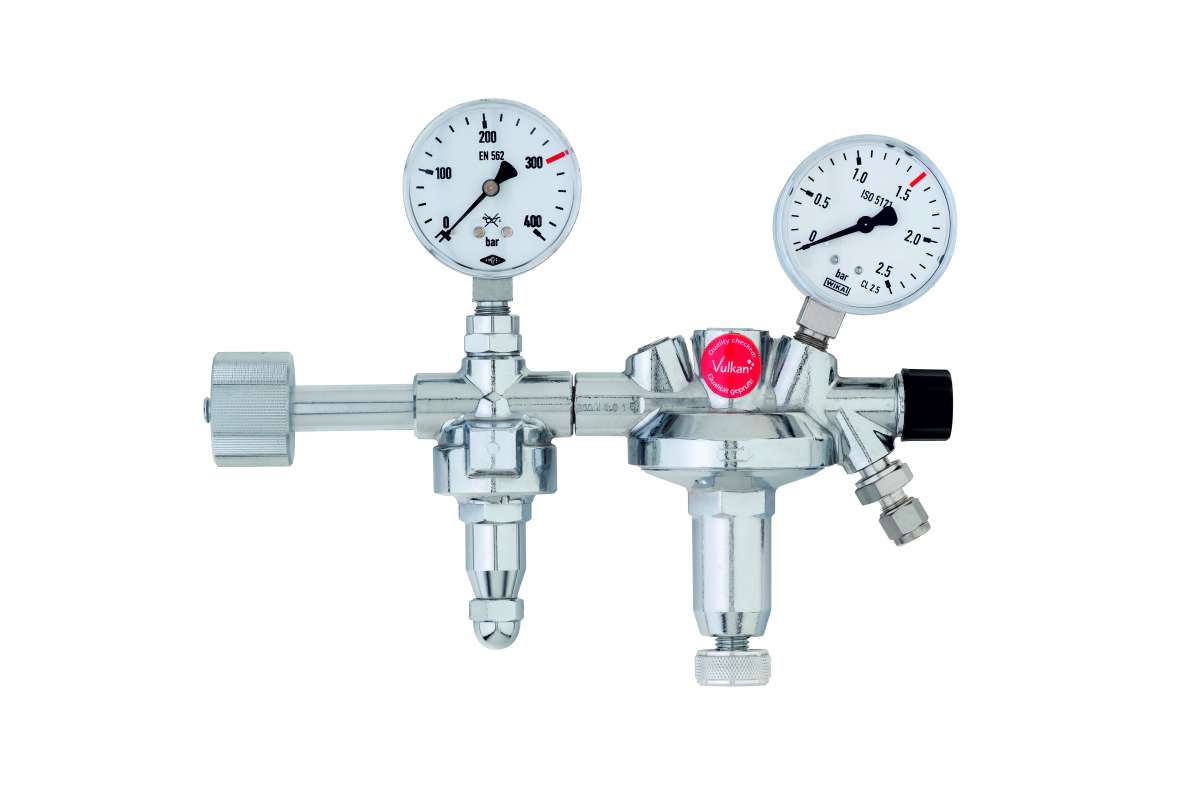

Cylinder pressure reducer Vulkan F15/2 300 Effect LabLine forming gas 0 - 1.5 bar, completely chrome-plated with metal diaphragm for gas purity 5.0
Standards & Design:
according to DIN EN ISO 2503, two-stage design, with inlet pressure compensation for constant outlet pressure when the inlet pressure falls, with safety pressure gauges according to DIN ISO 5171, with shut-off valve
according to DIN 477 Part 5 and are NOT backward compatible
Functional elements:
• shut-off valve
Technical data:
• Maximum inlet pressure: 300 bar
• outlet pressure when the inlet pressure falls, with safety pressure gauges according to DIN ISO 5171, with shut-off valve
• Output pressure: 0 - 1
• Inlet: W 30 x 2 LH U-nut DIN 477-5, No
• Outlet: VA compression fitting 6 mm
• Inlet pressure gauge: 0 - 400/300 bar
• Outlet pressure gauge: 0 - 2
Dimensions:
Width x Height x Depth: 240 x 190 x 75 mm Important note for 300 bar pressure regulators - Please check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible
Standards & Design:
according to DIN EN ISO 2503, two-stage design, with inlet pressure compensation for constant outlet pressure when the inlet pressure falls, with safety pressure gauges according to DIN ISO 5171, with shut-off valve
according to DIN 477 Part 5 and are NOT backward compatible
Functional elements:
• shut-off valve
Technical data:
• Maximum inlet pressure: 300 bar
• outlet pressure when the inlet pressure falls, with safety pressure gauges according to DIN ISO 5171, with shut-off valve
• Output pressure: 0 - 1
• Inlet: W 30 x 2 LH U-nut DIN 477-5, No
• Outlet: VA compression fitting 6 mm
• Inlet pressure gauge: 0 - 400/300 bar
• Outlet pressure gauge: 0 - 2
Dimensions:
Width x Height x Depth: 240 x 190 x 75 mm Important note for 300 bar pressure regulators - Please check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
8 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 57 (W 30 x 2 LH 15.2 / 20.8)
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Outlet pressure:
1,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Double stage
Shut off valve:
Type of Gas:
Forming gases (mixture)
W (Width) x H (Height) x D (Depth):
240x190x75mm.
