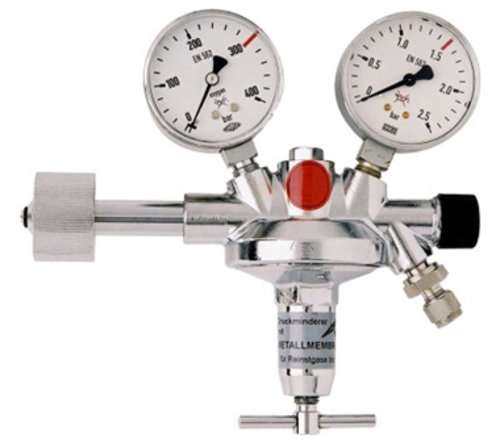

Vulkan F15/200 Effect LabLine Hydrogen Bottle Pressure Reducer 0-1.5 bar. Completely chrome-plated with metal diaphragms for gas purity 5.0. With pre-pressure compensation for constant
Standards & Design:
Single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171
according to DIN 477-1 No
Functional elements:
• shut-off valve, with safety gauges according to DIN EN ISO 5171
Technical data:
• Maximum inlet pressure: 200 bar
• outlet pressure under all operating conditions
• Output pressure: 0-1
• Inlet: W21
• Outlet: 6 mm stainless steel clamp ring
• Inlet pressure gauge: 0-315/200 bar
• Outlet pressure gauge: 0-2
Dimensions:
Width x Height x Depth: 210 x 190 x 75 mm
Standards & Design:
Single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171
according to DIN 477-1 No
Functional elements:
• shut-off valve, with safety gauges according to DIN EN ISO 5171
Technical data:
• Maximum inlet pressure: 200 bar
• outlet pressure under all operating conditions
• Output pressure: 0-1
• Inlet: W21
• Outlet: 6 mm stainless steel clamp ring
• Inlet pressure gauge: 0-315/200 bar
• Outlet pressure gauge: 0-2
Dimensions:
Width x Height x Depth: 210 x 190 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
8 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 1 (W 21.80 x 1/14 LH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Outlet pressure:
1,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Hydrogen (H2)
W (Width) x H (Height) x D (Depth):
210x190x75mm.
