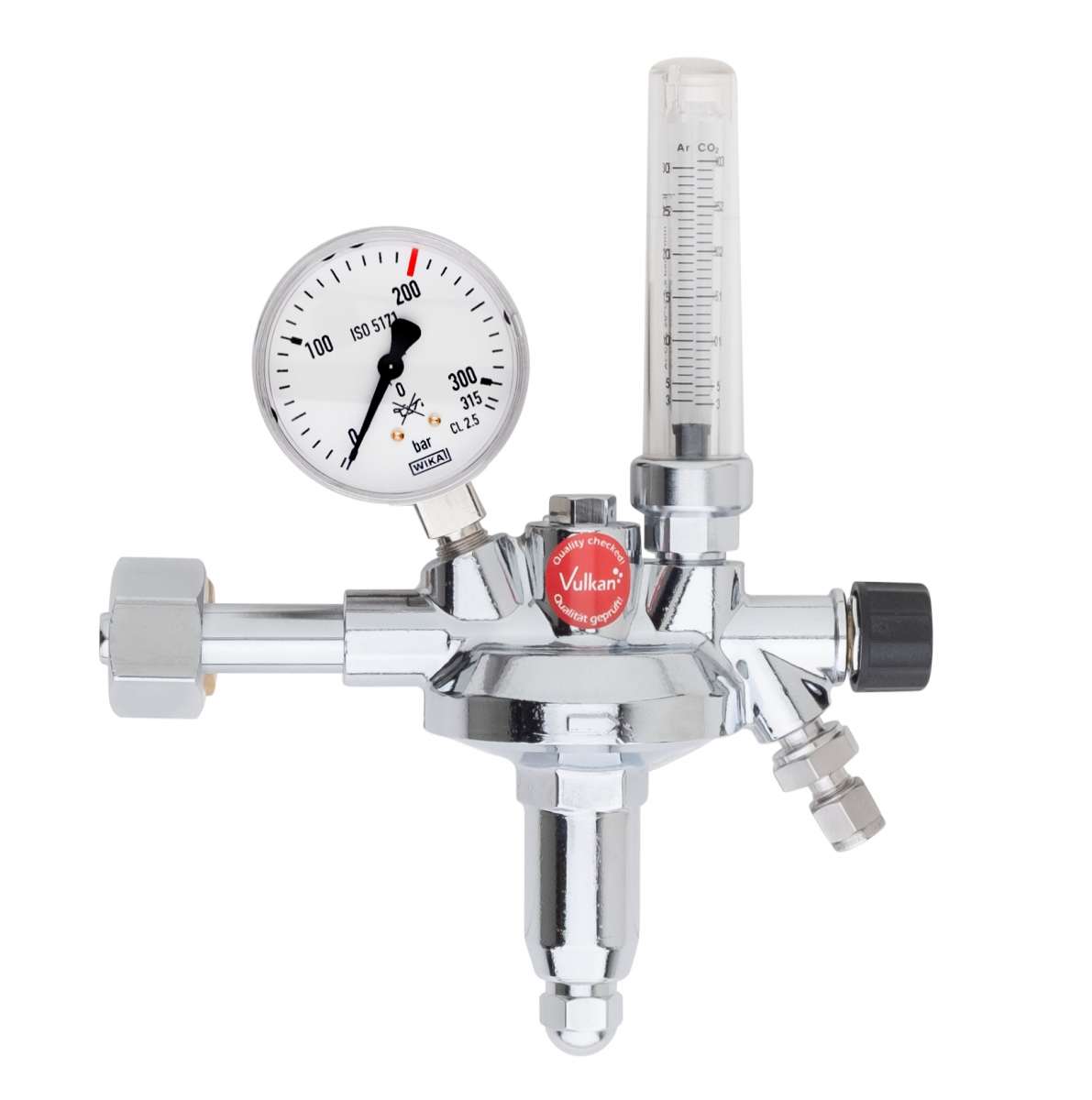

Vulkan F10/200 F Effect LabLine cylinder pressure reducer with flow meter for argon/CO2 1-15 Nl/min
Standards & Design:
according to ISO 2503, Class 20, single-stage design with flow meter for monitoring the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure drops, with safety gauges according to ISO 5171, with shut-off valve
according to DIN 477-1
Functional elements:
• shut-off valve
Technical data:
• Maximum inlet pressure: 200 bar
• Outlet pressure: 2
• Output: 1
• Inlet: W 21
• Outlet: 6 mm stainless steel compression fitting
• Inlet pressure gauge: 0 - 315/200 bar
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm
Standards & Design:
according to ISO 2503, Class 20, single-stage design with flow meter for monitoring the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure drops, with safety gauges according to ISO 5171, with shut-off valve
according to DIN 477-1
Functional elements:
• shut-off valve
Technical data:
• Maximum inlet pressure: 200 bar
• Outlet pressure: 2
• Output: 1
• Inlet: W 21
• Outlet: 6 mm stainless steel compression fitting
• Inlet pressure gauge: 0 - 315/200 bar
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
0,9 Nm³/h
Flowmeter:
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 6 (W 21.8 x 1/14 RH
Inlet pressure:
200 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Carbon Dioxide (CO2)
W (Width) x H (Height) x D (Depth):
210x230x75mm.
