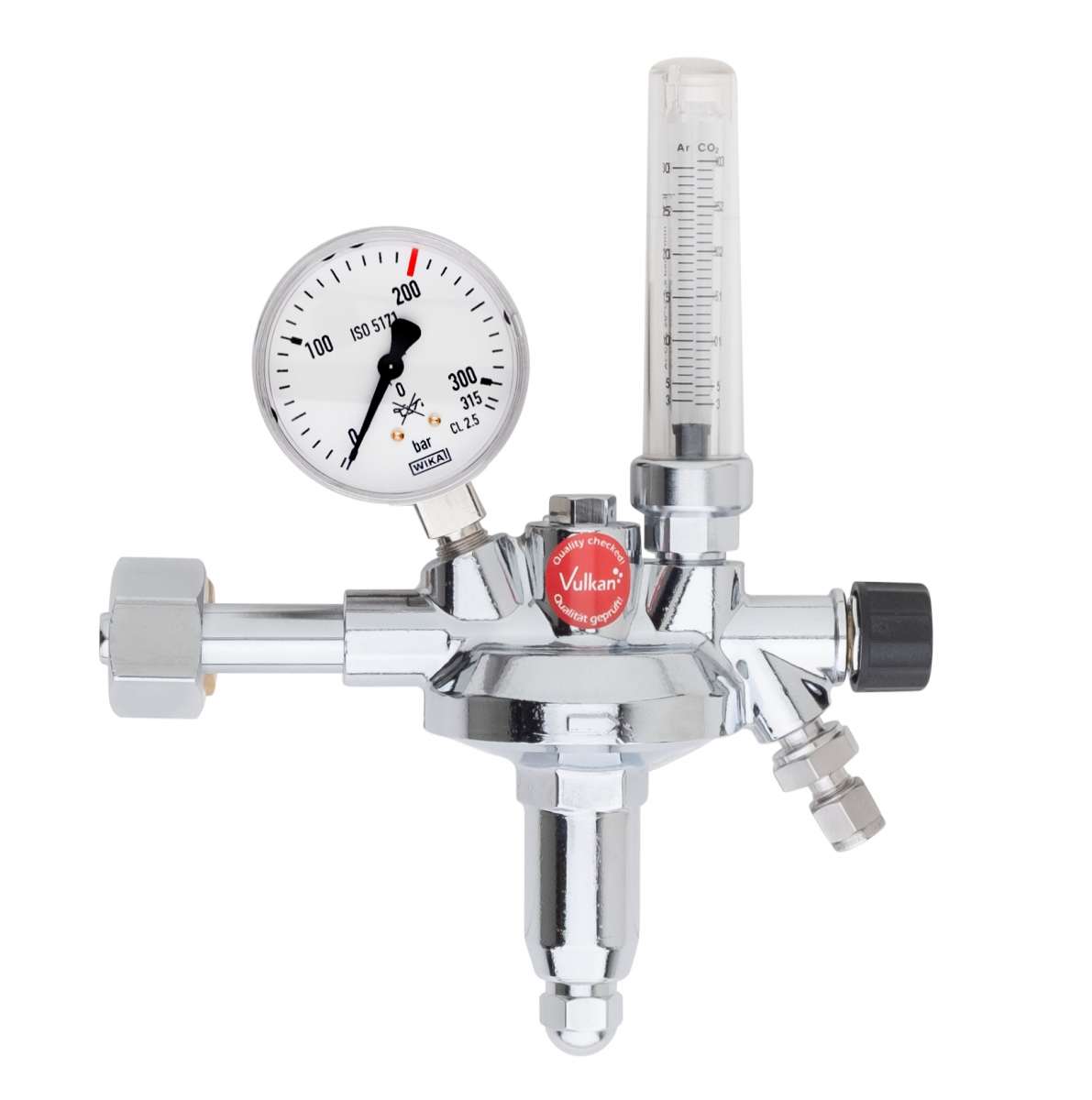

Cylinder pressure reducer Vulkan F10/300 F Effect LabLine flow meter argon/CO2 30 Nl/min, completely chrome-plated with metal diaphragm
Standards & Design:
according to ISO 2503, class 20, single-stage design with flow meter for monitoring the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure falls, with safety pressure gauges according to ISO 5171, with shut-off valve
according to DIN 477-5
according to DIN EN 560
according to DIN 477 Part 5 and are NOT backward compatible
Functional elements:
• shut-off valve
Technical data:
• Outlet pressure: 2
• output
• Inlet: W30x2RH U-nut according to DIN 477-5
• Outlet: G 1/4RHk x 6mm nozzle according to DIN EN 560
• Inlet pressure gauge: 0 - 400/300 bar
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm
Standards & Design:
according to ISO 2503, class 20, single-stage design with flow meter for monitoring the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure falls, with safety pressure gauges according to ISO 5171, with shut-off valve
according to DIN 477-5
according to DIN EN 560
according to DIN 477 Part 5 and are NOT backward compatible
Functional elements:
• shut-off valve
Technical data:
• Outlet pressure: 2
• output
• Inlet: W30x2RH U-nut according to DIN 477-5
• Outlet: G 1/4RHk x 6mm nozzle according to DIN EN 560
• Inlet pressure gauge: 0 - 400/300 bar
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
1,8 Nm³/h
Flowmeter:
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 54 (W30 x 2 RH 15.9 / 20.1))
Inlet pressure:
200 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
G 1/4 RH x 6 mm (hose grommet)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Carbon Dioxide (CO2)
W (Width) x H (Height) x D (Depth):
210x230x75mm.
