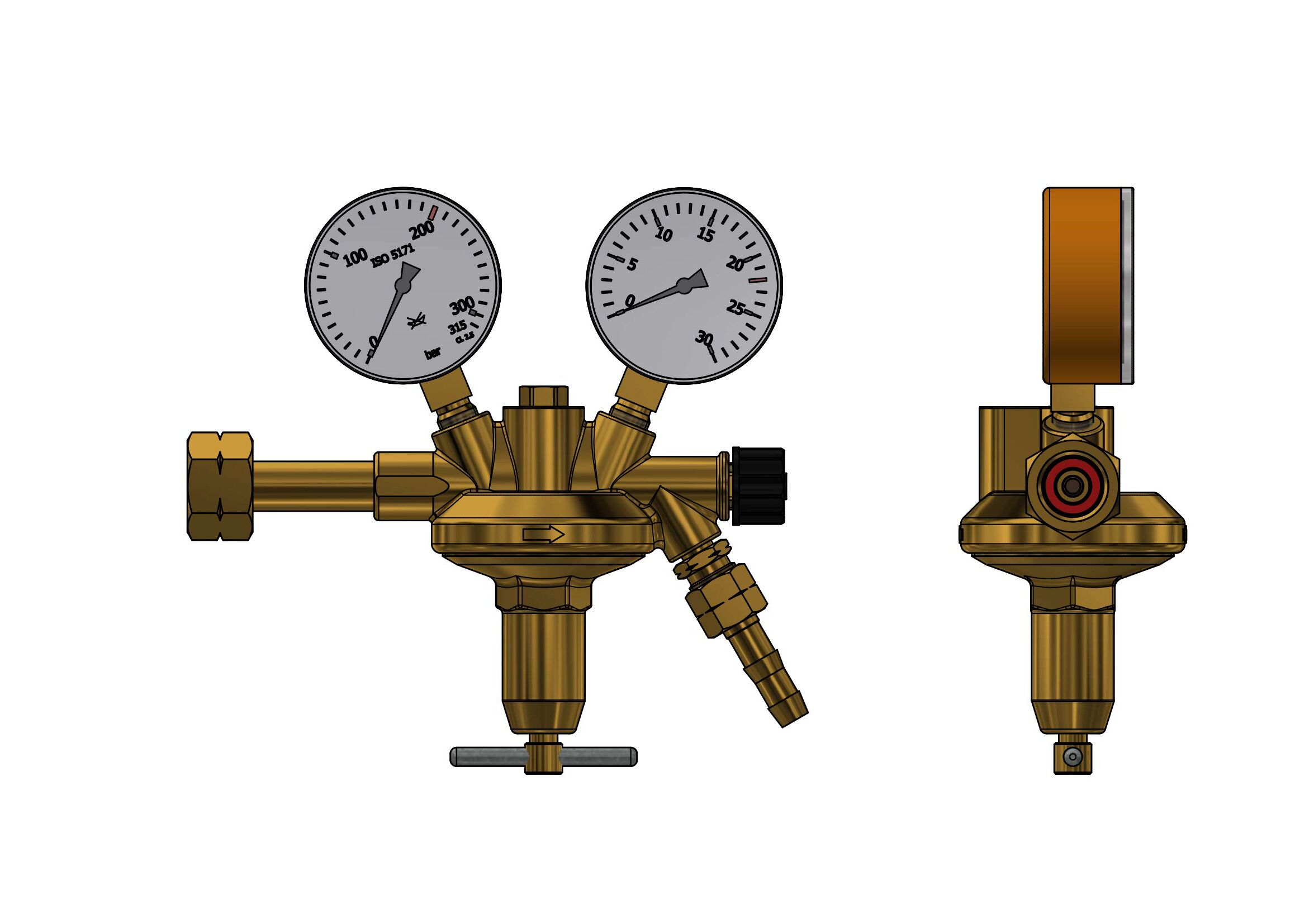

acc to DIN EN ISO 2503, class 3, single stage, with safety gauges acc. to DIN ISO 5171,
with shut off valve
inlet pressure max: 200 bar
outlet pressure: 0 - 30 Nl/min. (0 – 10 bar) adjustable
flow max: 30 Nl/min. at 10 bar outlet pressure
inlet connection: W 21,8x1/14 LH nut acc. to DIN 477-1, no. 1
outlet connection: G 3/8 LHk x 9 mm tail-piece acc. EN560
inlet gauge: 0 – 315 /200 bar
working gauge: 0 – 30 Nl/min.
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Linde Code:
32492238
Standard:
DIN EN ISO 2503
Type of Gas:
Forming gases (mixture)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 10 Bar
Inlet Connection:
W 21,8 x 1/14 LH
Outlet Connection:
G 3/8 LHk x 9mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Shut off valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
200 Bar
LP Gauge:
LP gauge scale:
10 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
