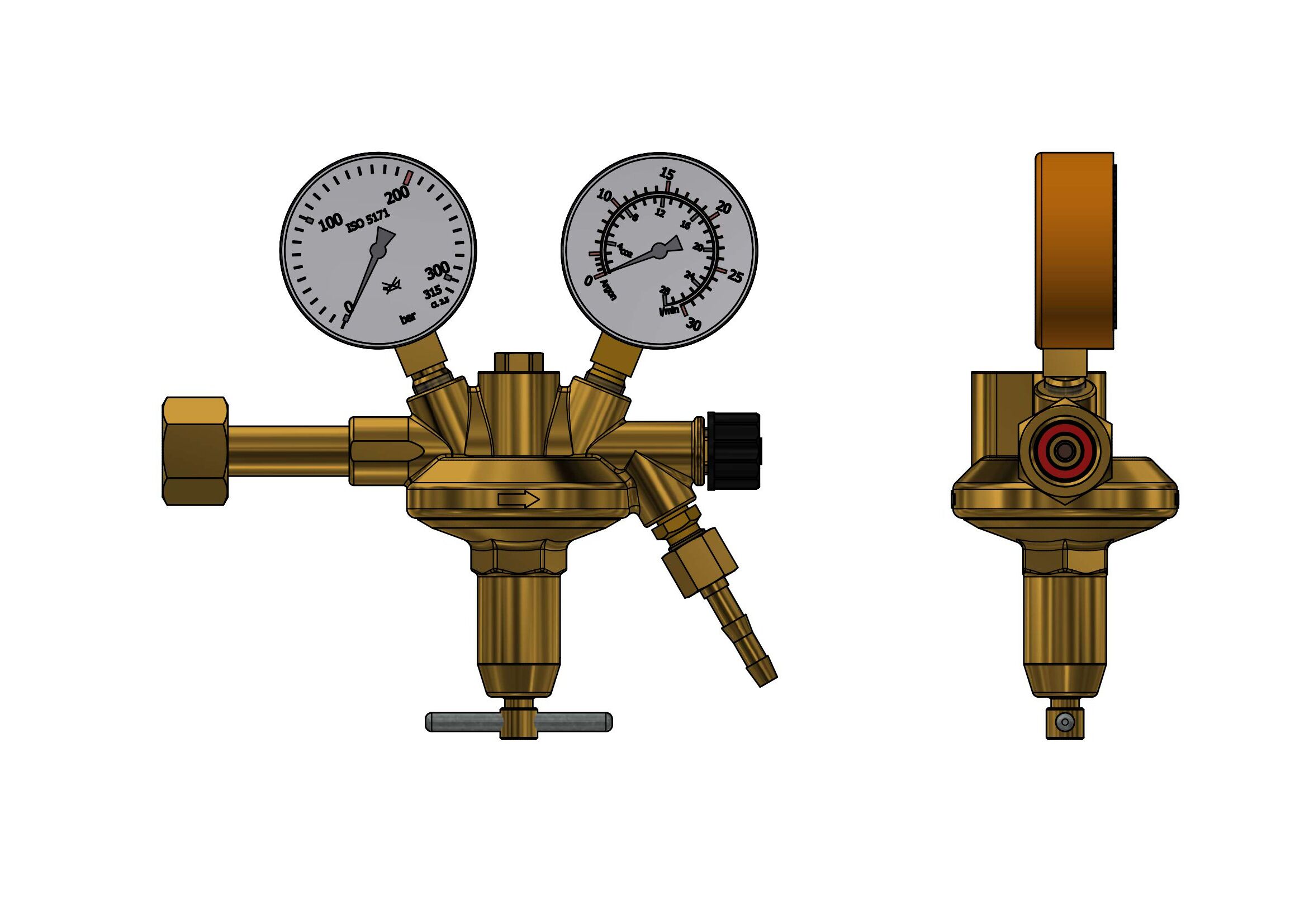

acc to DIN EN ISO 2503, class 3, single stage, with safety gauges acc. to DIN ISO 5171inlet pressure max: 200 bar
outlet pressure: 0-10 bar
flow: 0 – 20 Nl/min. adjustable
Inlet connection: W 21,8x1/14 RH nut acc. to DIN 477-1, no. 6
outlet connection: G 1/4 RHk x 6 mm tailpiece acc. to EN 560
inlet gauge: 0 – 315/200 bar
outlet gauge: 0 – 30 Nl/min. double scale Ar/CO2 (0 - 10 bar)
width x height x depth: 210 x 230 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 0-10 bar
flow: 0 – 20 Nl/min. adjustable
Inlet connection: W 21,8x1/14 RH nut acc. to DIN 477-1, no. 6
outlet connection: G 1/4 RHk x 6 mm tailpiece acc. to EN 560
inlet gauge: 0 – 315/200 bar
outlet gauge: 0 – 30 Nl/min. double scale Ar/CO2 (0 - 10 bar)
width x height x depth: 210 x 230 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
HP gauge scale:
200 Bar
Inlet Connection:
W 21,8 x 1/14 RH
Inlet pressure:
200 Bar
Linde Code:
32492240
LP Gauge:
LP gauge scale:
10 Bar
Material:
Brass
Outlet Connection:
G 1/4 RHk x 6mm
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Standard:
DIN EN ISO 2503
Temperature range:
-20 up to +60 °C
Type of Gas:
MISON®
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
