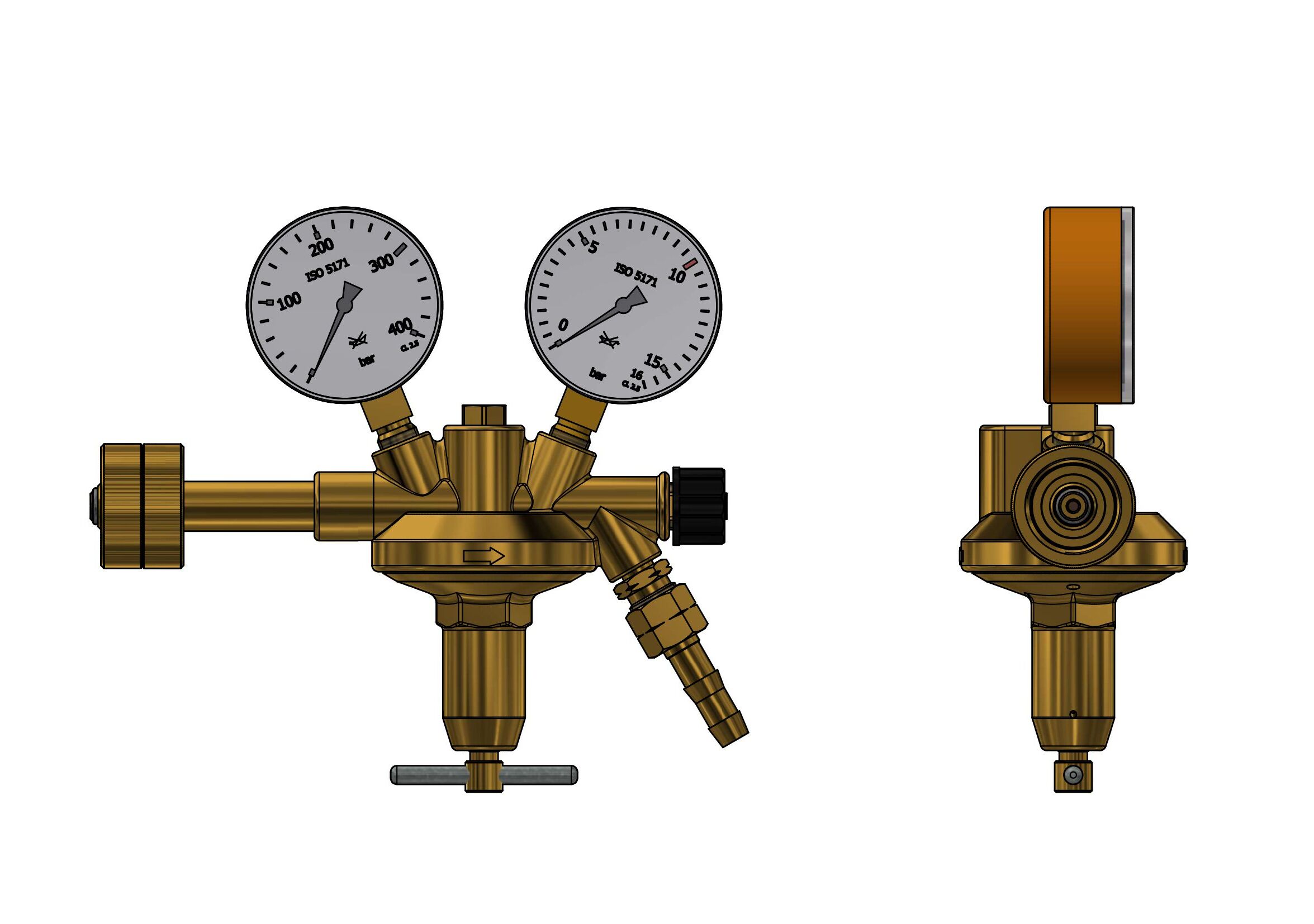

acc. to ISO 2503, class3, with high pressure compensation, single stage with safety gauges acc. to DIN ISO 5171inlet pressure max:300 bar
outlet pressure: 0 – 10 bar adjustable
flow max: 48 Nm³/h at 10 bar outlet pressure
inlet connection: W 30x2LHk nut acc. to DIN 477-5, Nr. 57
outlet connection: G 3/8 LHk x 9mm tail-piece acc. to DIN EN 560
inlet gauge: 0 – 400 / 300 bar
working gauge: 0 – 16/10 bar
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 0 – 10 bar adjustable
flow max: 48 Nm³/h at 10 bar outlet pressure
inlet connection: W 30x2LHk nut acc. to DIN 477-5, Nr. 57
outlet connection: G 3/8 LHk x 9mm tail-piece acc. to DIN EN 560
inlet gauge: 0 – 400 / 300 bar
working gauge: 0 – 16/10 bar
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Linde Code:
32492249
Standard:
ISO 2503
Type of Gas:
Hydrogen (H2)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 10 Bar
Flow rate:
48 Nm³/h
Inlet Connection:
W 30 x 2 LHk
Outlet Connection:
G 3/8 LHk x 9mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
300 Bar
LP Gauge:
LP gauge scale:
10 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 210 x 75 mmmm.
