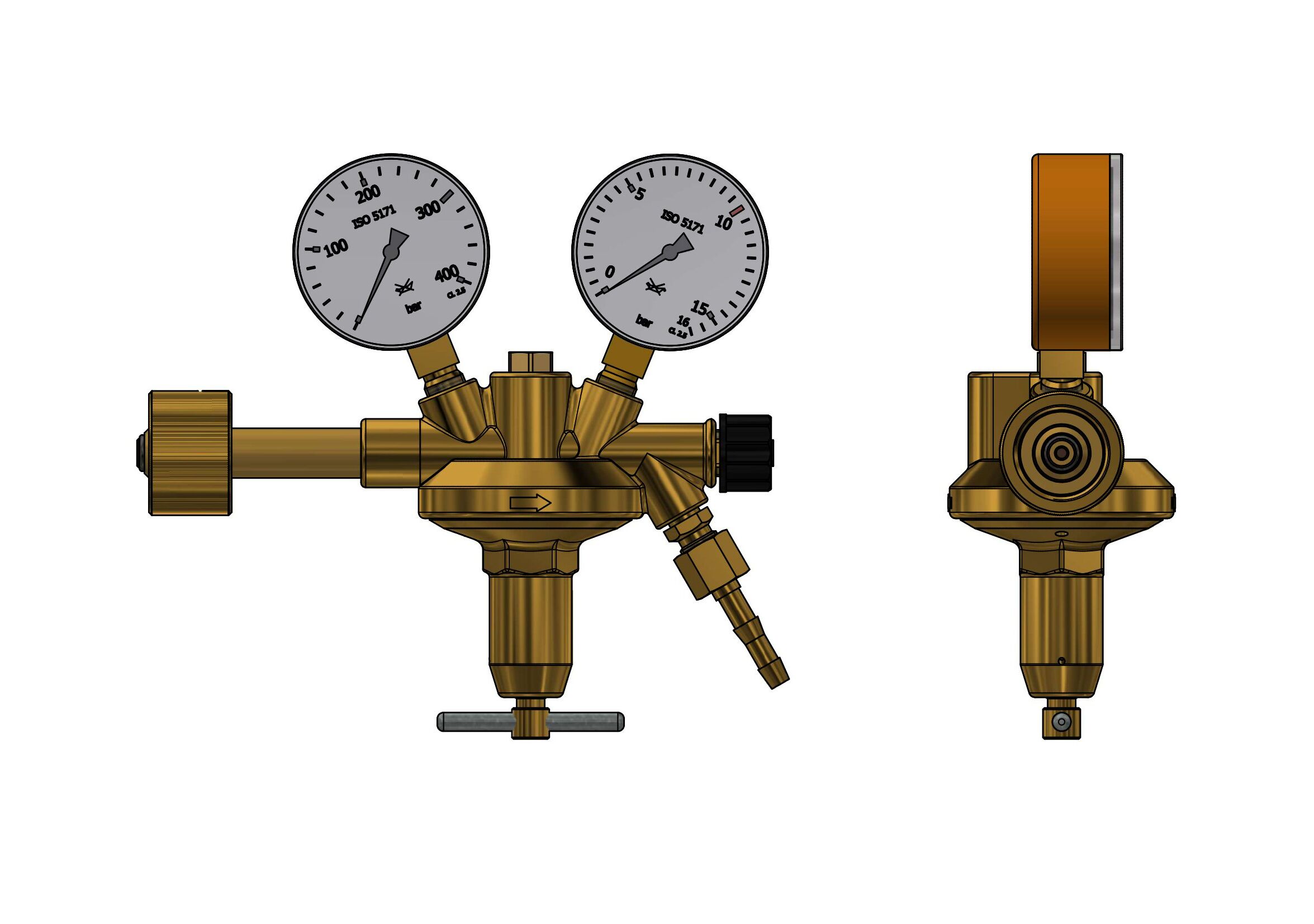

according to ISO 2503, class 3, adiabatic compression tested, single stage with high-pressure compensation, with safety gauges according to ISO 5171, including shut off valveinlet pressure max.: 300 bar
working pressure: 0 - 10 bar adjustable
flow max. 48 Nm³/h compressed air at 10 bar working pressure
inlet connection: W 30x2 RH acc. to DIN 477-5, no. 59
outlet connection: G 1/4 RH x 6 mm acc. to EN 560
cylinder gauge 0 - 400/300 bar
working gauge: 0 - 16/10 bar
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
working pressure: 0 - 10 bar adjustable
flow max. 48 Nm³/h compressed air at 10 bar working pressure
inlet connection: W 30x2 RH acc. to DIN 477-5, no. 59
outlet connection: G 1/4 RH x 6 mm acc. to EN 560
cylinder gauge 0 - 400/300 bar
working gauge: 0 - 16/10 bar
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Linde Code:
32497530
Standard:
ISO 2503
Type of Gas:
Compressed Air (mixture)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 10 Bar
Flow rate:
48 Nm³/h
Inlet Connection:
W 30 x 2 RH
Outlet Connection:
G 1/4 RH x 6mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Shut off valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
300 Bar
LP Gauge:
LP gauge scale:
10 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
