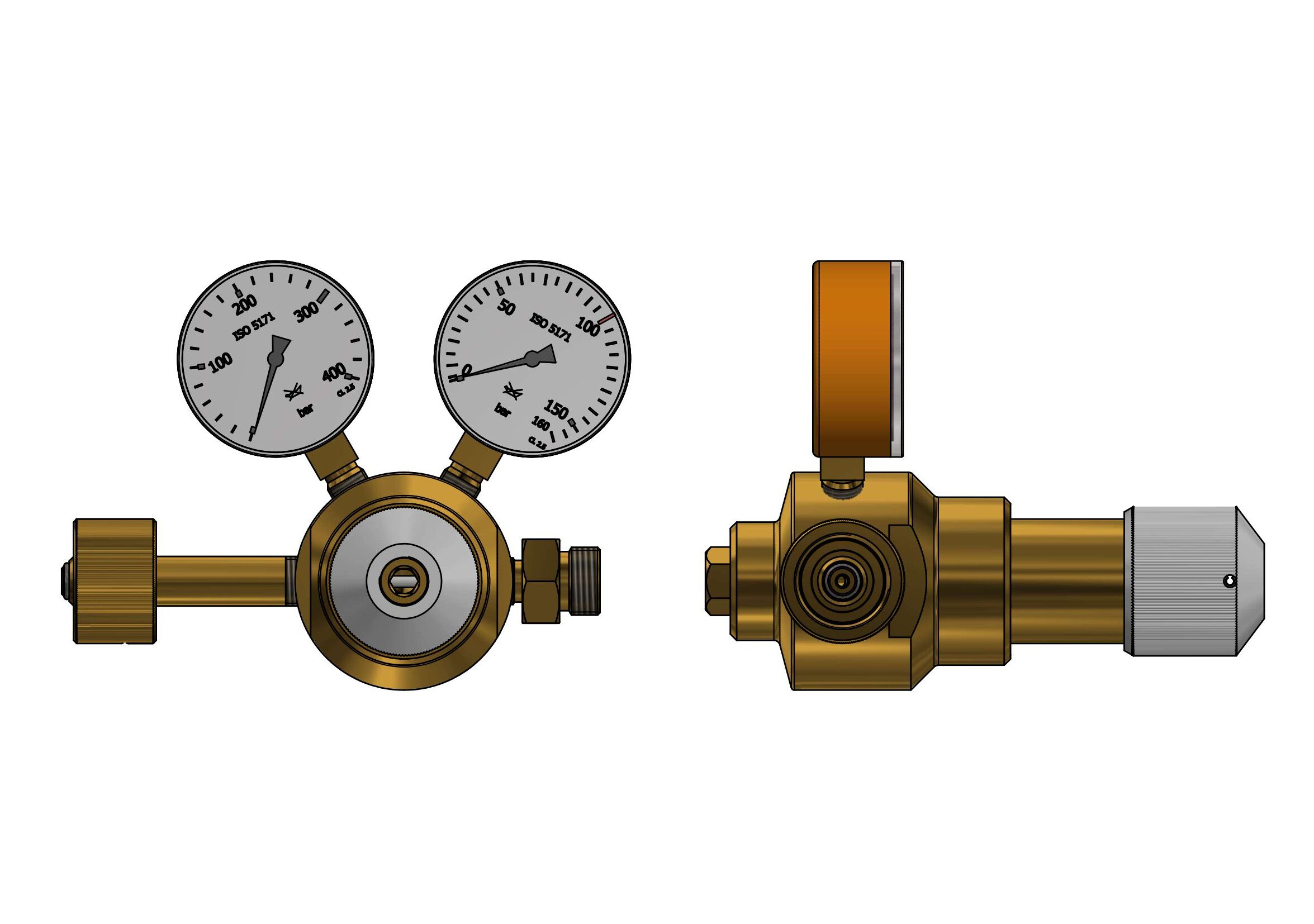

acc. to ISO 2503, single stage with safety gauges acc. to ISO 5171inlet pressure max:300 bar
outlet pressure: 10 - 100 bar adjustable
flow max: 380 Nm³/h at 50 bar outlet pressure
inlet connection: W 30x2 RH nut acc. to DIN 477-5, no. 54
outlet connection: W 21,8x1/14 RH male DIN 477-1, no. 6
inlet gauge: 0 – 400/300 bar
working gauge: 0 – 160/100 bar
width x height x depth: 170 x 140 x 180 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 10 - 100 bar adjustable
flow max: 380 Nm³/h at 50 bar outlet pressure
inlet connection: W 30x2 RH nut acc. to DIN 477-5, no. 54
outlet connection: W 21,8x1/14 RH male DIN 477-1, no. 6
inlet gauge: 0 – 400/300 bar
working gauge: 0 – 160/100 bar
width x height x depth: 170 x 140 x 180 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flow rate:
380 Nm³/h
HP gauge scale:
300 Bar
Inlet Connection:
W 30 x 2 RH
Inlet pressure:
300 Bar
Linde Code:
32497506
LP Gauge:
LP gauge scale:
100 Bar
Material:
Brass
Outlet Connection:
W 21,8 x 1/14 RH
Outlet pressure:
100 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Standard:
ISO 2503
Temperature range:
-20 up to +60 °C
Type of Gas:
Noble gases(mixture)
W (Width) x H (Height) x D (Depth):
170 x 140 x 180 mmmm.
