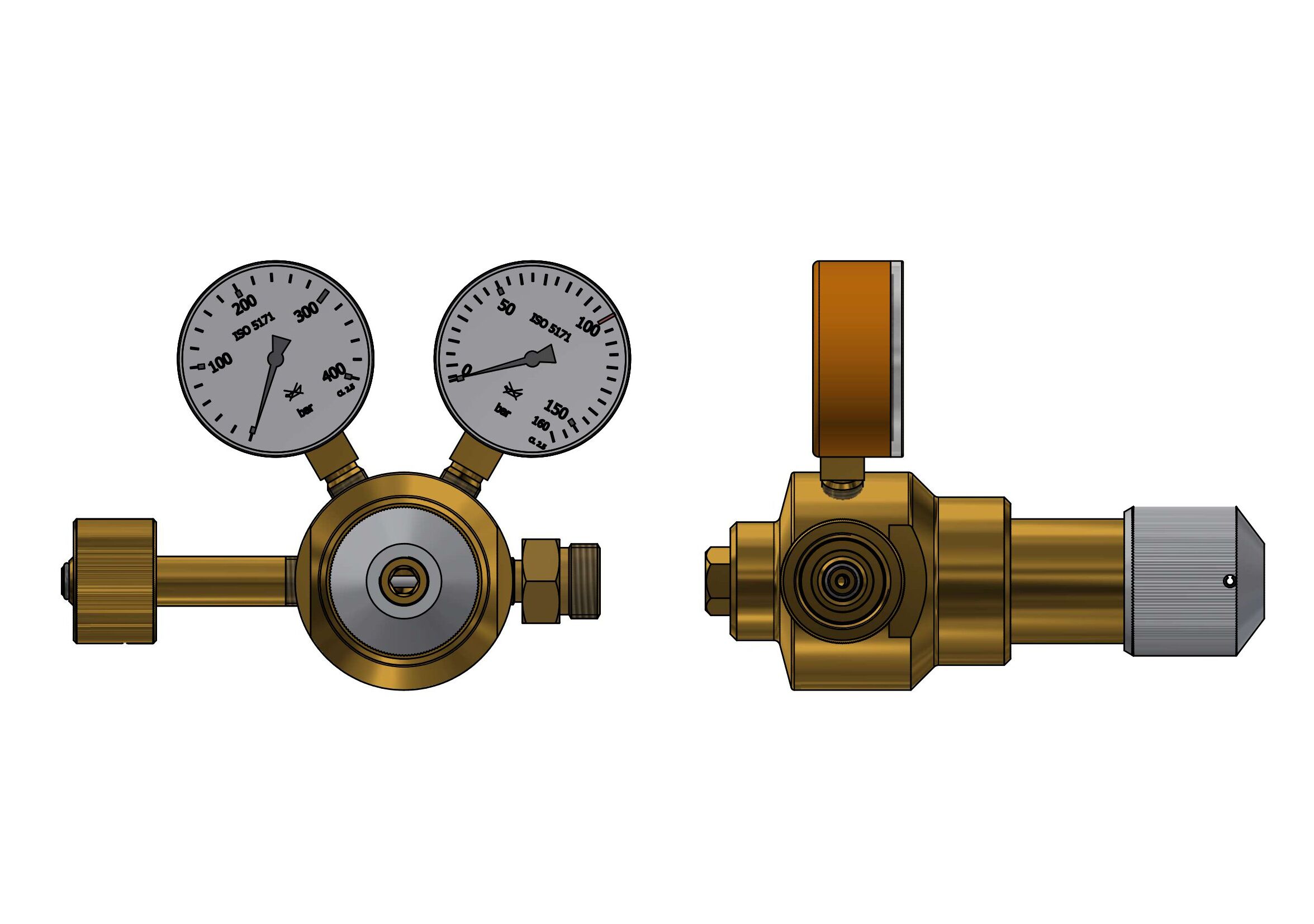

acc. to ISO 2503, single stage with safety gauges acc. to EN562inlet pressure max:300 bar
outlet pressure: 10 - 100 bar adjustable
flow max:380 Nm³/h at 50 bar outlet pressure
inlet connection: W 30x2 RH nut acc. to DIN 477-5, no. 54
outlet connection: W 24,32x1/14 RH male DIN 477-1, no. 10
inlet gauge: 0 – 400/300 bar
working gauge: 0 – 160/100 bar
width x height x depth: 170 x 140 x 180 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 10 - 100 bar adjustable
flow max:380 Nm³/h at 50 bar outlet pressure
inlet connection: W 30x2 RH nut acc. to DIN 477-5, no. 54
outlet connection: W 24,32x1/14 RH male DIN 477-1, no. 10
inlet gauge: 0 – 400/300 bar
working gauge: 0 – 160/100 bar
width x height x depth: 170 x 140 x 180 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Linde Code:
32497522
Standard:
ISO 2503
Type of Gas:
Nitrogen (N2)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 100 Bar
Flow rate:
380 Nm³/h
Inlet Connection:
W 30 x 2 RH
Outlet Connection:
W 24,32 x 1/14 RH
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
300 Bar
LP Gauge:
LP gauge scale:
100 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
170 x 140 x 180 mmmm.
