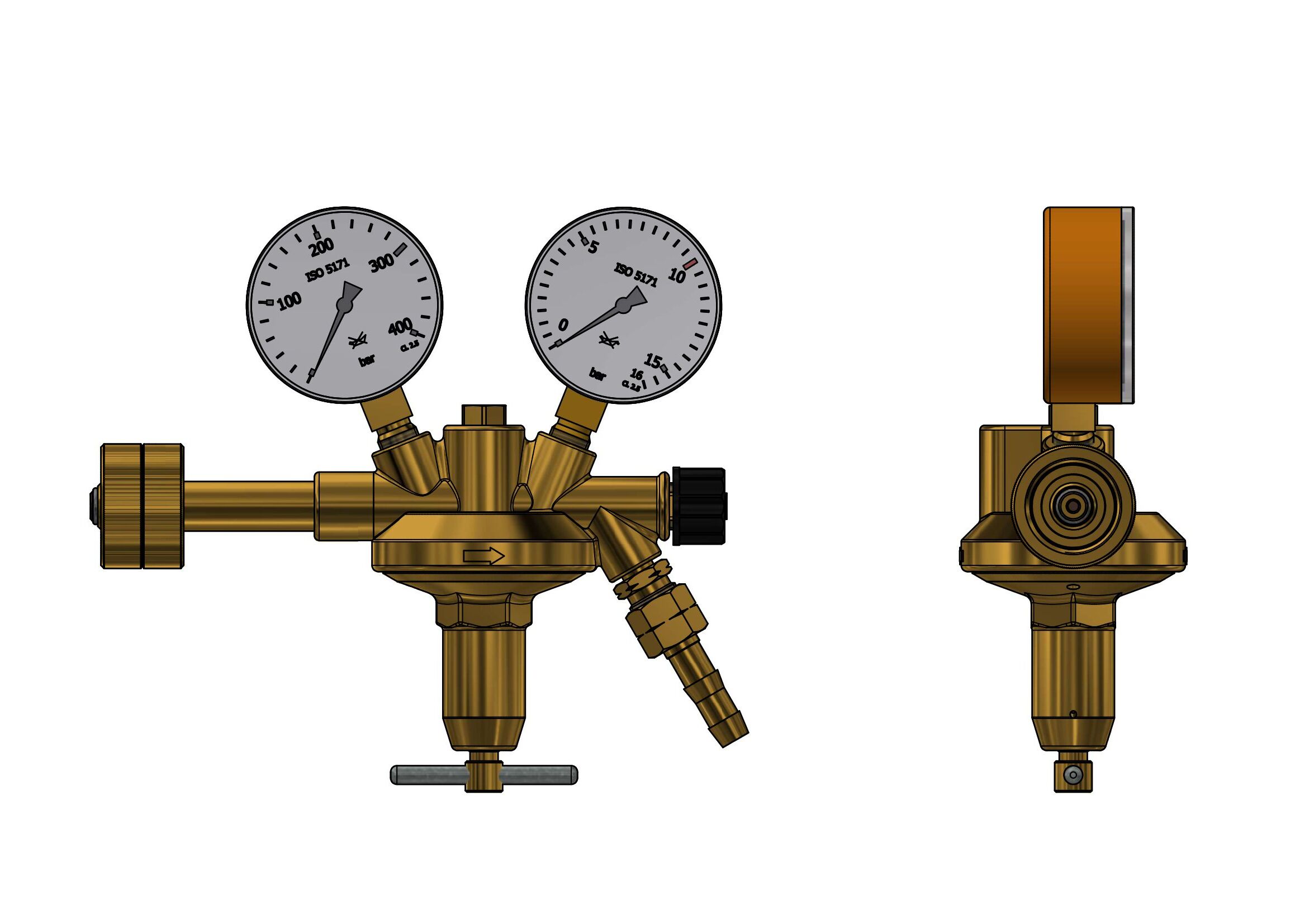

acc. to ISO 2503, class 5, single stage, with high pressure compensation for constant working pressure, with safety gauges acc. to ISO 5171, with shut off valve,inlet pressure max.: 300 bar
outlet pressure: 0 – 20 bar adjustable
flow max.: 75 Nm³/h air at 10 bar working pressure
Inlet connection: W30x2LH nut acc. to DIN 477-5 no. 57
outlet connection: G 3/8 LHk x 9 mm tailpiece acc. to EN 560
inlet gauge: 0 - 400/300 bar
working gauge: 0 - 40/20 bar
width x height x depth: 210 x 210 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 0 – 20 bar adjustable
flow max.: 75 Nm³/h air at 10 bar working pressure
Inlet connection: W30x2LH nut acc. to DIN 477-5 no. 57
outlet connection: G 3/8 LHk x 9 mm tailpiece acc. to EN 560
inlet gauge: 0 - 400/300 bar
working gauge: 0 - 40/20 bar
width x height x depth: 210 x 210 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flow rate:
75 Nm³/h
HP gauge scale:
300 Bar
Inlet Connection:
W 30 x 2 LH
Inlet pressure:
300 Bar
Linde Code:
32492218
LP Gauge:
LP gauge scale:
20 Bar
Material:
Brass
Outlet Connection:
G 3/8 LHk x 9mm
Outlet pressure:
20 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Shut off valve:
Standard:
ISO 2503
Temperature range:
-20 up to +60 °C
Type of Gas:
Hydrogen (H2)
W (Width) x H (Height) x D (Depth):
210 x 210 x 75 mmmm.
