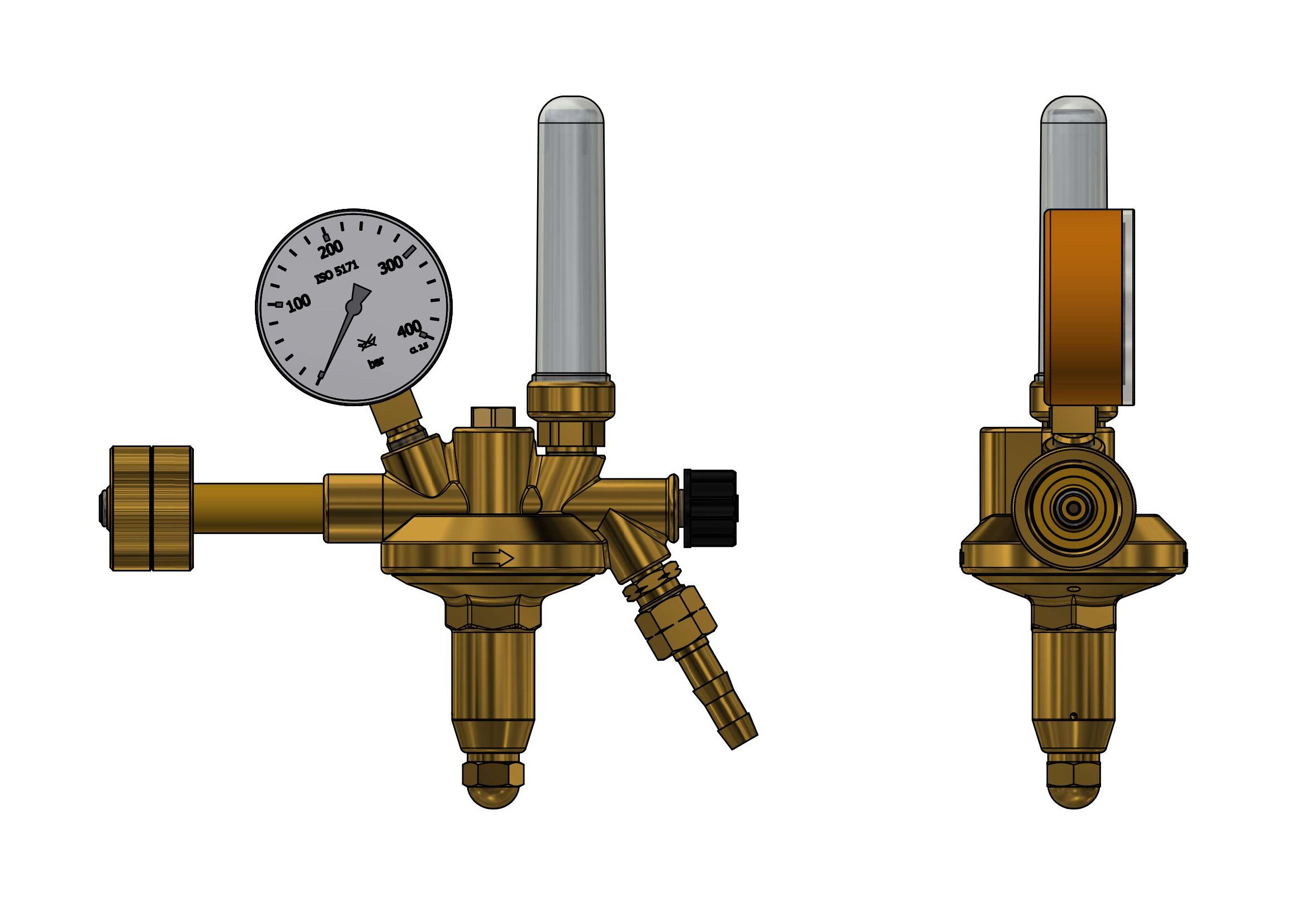

acc to ISO2503, single stage, with flowmeter for exact control of the flow in Nl/min, TÜV – approved following Pressure equipment Directive 97/23/EG with high pressure compensation for constant working pressure with safety gauge acc. to ISO 5171, with shut off valveinlet pressure max: 300 bar
outlet pressure: 1,5 bar pre adjusted
flow: 2 – 23 Nl/min. adjustable
inlet: W 30x2 LH nut acc. to DIN 477-5
outlet: G 3/8 LHk x 9 mm tail-piece acc. EN 560
inlet gauge: 0 – 400/300 bar
width x height x depth:: 210 x 230 x 75 mm
Linde Code:
32492250
Standard:
ISO 5171
Type of Gas:
Forming gases (mixture)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 1,5 Bar
Inlet Connection:
W 30 x 2 LH
Outlet Connection:
G 3/8 LHk x 9mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Shut off valve:
Y
Diaphragm Material:
EPDM
Flowmeter:
Y
HP Gauge:
HP gauge scale:
300 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 230 x 75 mmmm.
