Linde Pressure Regulator MINICAN

Linde
Write a review
Ask a question
37610008
+ −
Buy now with 1-click

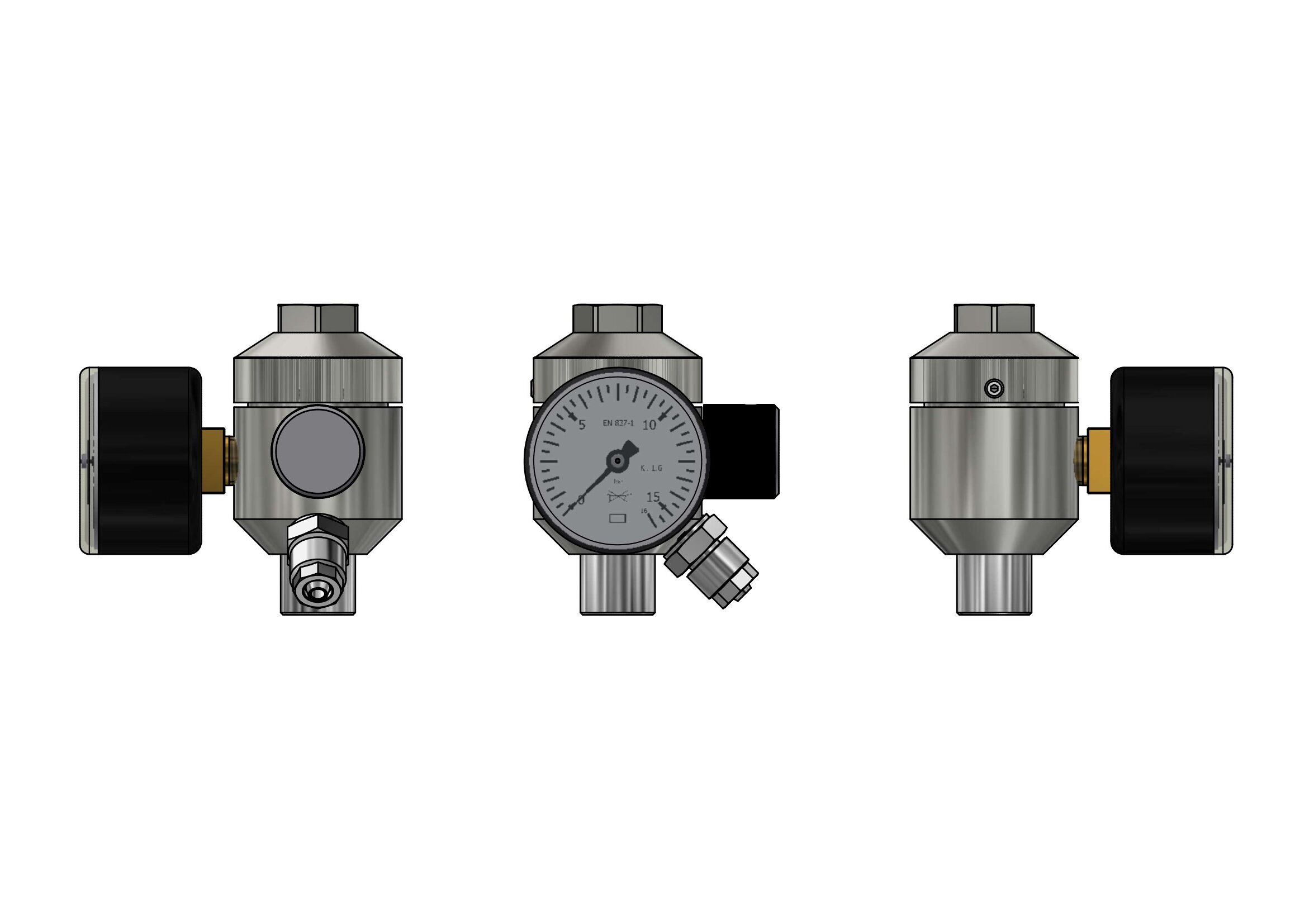

according to drawing no. 95 100 130, with inlet pressure gauge and shut-off valve,Inlet pressure max: 12 bar
Outlet pressure: fixed at approx. 0.5 - 0.7 bar
Inlet: 7/16" x 28 NS2
Output: compression fitting 4 mm Ms nickel-plated
Inlet pressure gauge: 0 - 16 bar
Output pressure gauge: without (no connection available)
With flyer provided by Linde - Linde #43586000
Accessory pack: bag with 3 O-rings #11207000

Minimum order quantity 300 pieces
Linde Code:
37610008
Product type:
Cylinder regulators
Inlet pressure (max):
12 Bar
Outlet pressure:
0 - 0,7 Bar
Inlet Connection:
7/16" x 28 NS2
Outlet Connection:
compression fitting 4 mm Ms nickel-plated
Application:
  • Automotive Industry
  • Cutting
  • Manufacturing Industry
  • Medical Technology
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Research & Development
  • Welding
Class (purpose):
  • Technical gases
Material:
Aluminium
Shut off valve:
Y
Diaphragm Material:
Alum.
HP Gauge:
HP gauge scale:
16 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
