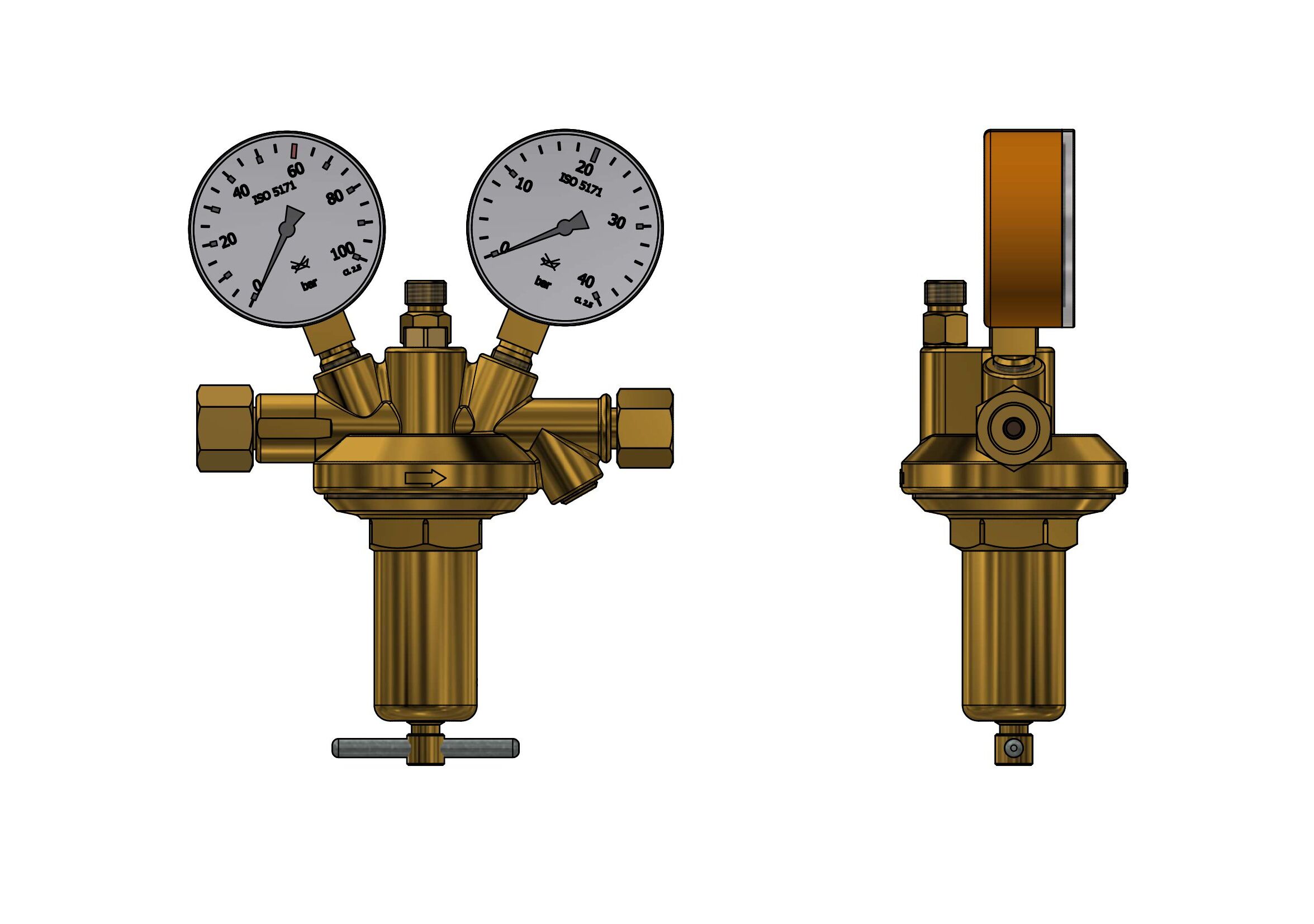

single stage, with safety gauges acc. to ISO 5171inlet pressure max: 60 bar
outlet pressure: 0 – 20 bar adjustable
flow max: 90 Nm³/h compressed air at 20 bar outlet pressure
in- and outlet: G3/8 RH female
inlet gauge: 0- 100/60 bar
outlet gauge: 0 – 40/20 bar
width x height x depth: 220 x 200 x 75 mm
with label on regulator
outlet pressure: 0 – 20 bar adjustable
flow max: 90 Nm³/h compressed air at 20 bar outlet pressure
in- and outlet: G3/8 RH female
inlet gauge: 0- 100/60 bar
outlet gauge: 0 – 40/20 bar
width x height x depth: 220 x 200 x 75 mm
with label on regulator
Linde Code:
32490820
Standard:
ISO 5171
Type of Gas:
Compressed Air (mixture)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
60 Bar
Outlet pressure:
0 - 20 Bar
Flow rate:
90 Nm³/h
Inlet Connection:
G 3/8 RH
Outlet Connection:
G 3/8 RH
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
60 Bar
LP Gauge:
LP gauge scale:
20 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
220 x 200 x 75 mmmm.
