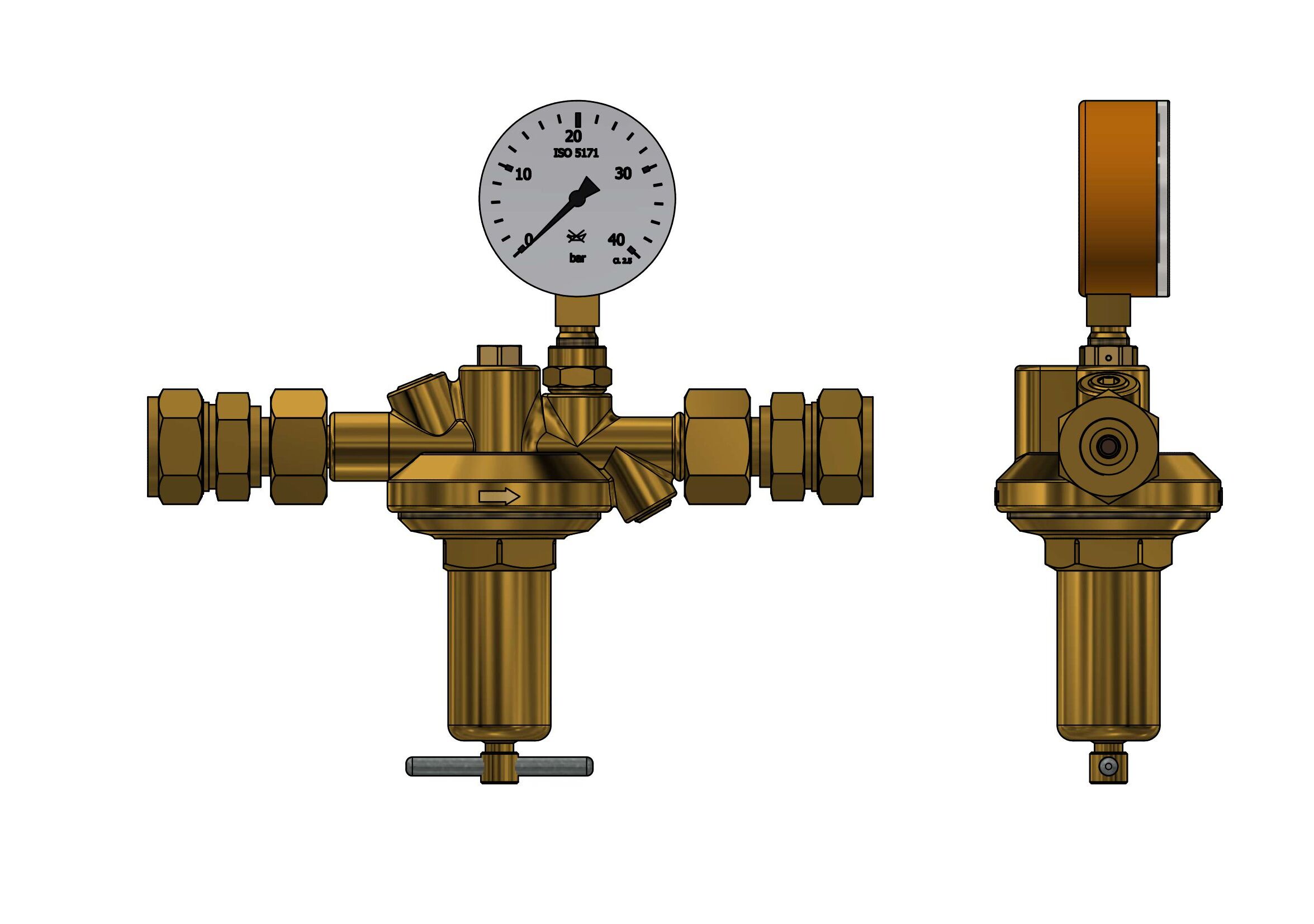

In-line regulator, single stage,inlet pressure: max. 40 bar
working pressure : 0 - 20 bar adjustable
membrane : PTFE coatet
inlet gauge: without
working gauge : acc. to ISO 5171, 0- 40/20 bar
inlet an doutlet connection: 18 mm brass two ferrule compression type fitting
flow : max. 90 m3/h
free of oil- and grease
width x height x depth: 220 x 200 x 75 mm
With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "O", additional sticker on foil: "No cost-free redemption when foil is damaged "
The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.
Test report and test report 2.2
working pressure : 0 - 20 bar adjustable
membrane : PTFE coatet
inlet gauge: without
working gauge : acc. to ISO 5171, 0- 40/20 bar
inlet an doutlet connection: 18 mm brass two ferrule compression type fitting
flow : max. 90 m3/h
free of oil- and grease
width x height x depth: 220 x 200 x 75 mm
With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "O", additional sticker on foil: "No cost-free redemption when foil is damaged "
The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.
Test report and test report 2.2
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flow rate:
90 Nm³/h
Inlet Connection:
18 mm brass two ferrule compression type fitting
Inlet pressure:
40 Bar
Linde Code:
32490869
LP Gauge:
LP gauge scale:
20 Bar
Material:
Brass
Outlet Connection:
18 mm brass two ferrule compression type fitting
Outlet pressure:
20 Bar
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Relief valve:
Standard:
ISO 5171
Temperature range:
-20 up to +60 °C
Type of Gas:
Oxygen (O2)
W (Width) x H (Height) x D (Depth):
220 x 200 x 75 mmmm.
