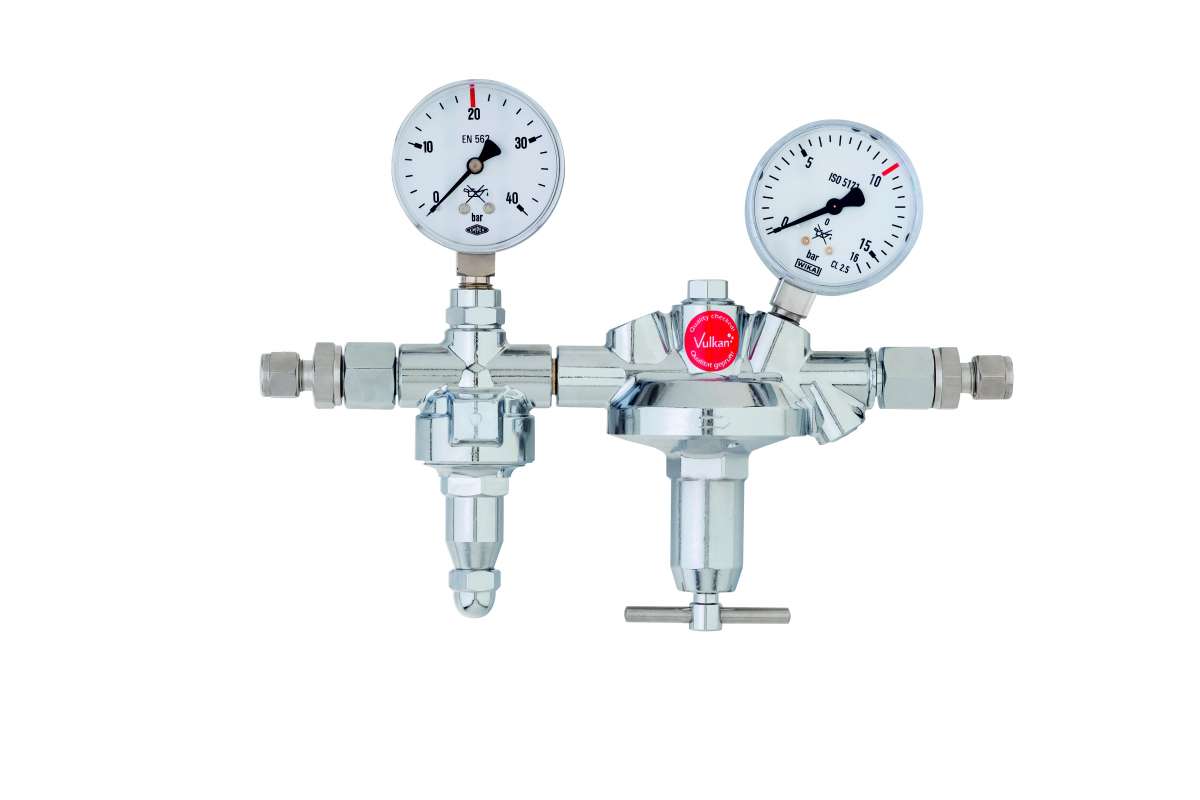

Vulkan L10/2 LabLine Nitrogen Line Pressure Reducer 0-10 bar, fully chrome-plated, with metal diaphragm for gas purity 5.0
Standards & Design:
two-stage design, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 20 bar, adjustable outlet pressure: 0-10 bar, maximum output: 30 Nm³/h air at 10 bar outlet pressure
Technical data:
• maximum inlet pressure: 20 bar, adjustable outlet pressure: 0-10 bar, maximum output: 30 Nm³/h air at 10 bar outlet pressure
• outlet pressure: 0-10 bar, maximum output: 30 Nm³/h air at 10 bar outlet pressure
• output: 30 Nm³/h air at 10 bar outlet pressure
• Inlet: 8 mm stainless steel compression fitting
• Outlet: 8 mm stainless steel compression fitting
Dimensions:
Width x Height x Depth: 240 x 190 x 75 mm
Standards & Design:
two-stage design, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 20 bar, adjustable outlet pressure: 0-10 bar, maximum output: 30 Nm³/h air at 10 bar outlet pressure
Technical data:
• maximum inlet pressure: 20 bar, adjustable outlet pressure: 0-10 bar, maximum output: 30 Nm³/h air at 10 bar outlet pressure
• outlet pressure: 0-10 bar, maximum output: 30 Nm³/h air at 10 bar outlet pressure
• output: 30 Nm³/h air at 10 bar outlet pressure
• Inlet: 8 mm stainless steel compression fitting
• Outlet: 8 mm stainless steel compression fitting
Dimensions:
Width x Height x Depth: 240 x 190 x 75 mm
Type of Gas:
Nitrogen (N2)
Product type:
Line Pressure Regulators
Regulation Type:
Double stage
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 10 Bar
Gas Quality:
up to 5.0 (laboratory gases / laser gases)
Flow rate:
30 Nm³/h
Inlet Connection:
Clamping ring 8 mm
Outlet Connection:
Clamping ring 8 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases | laser gases
Material:
Chrome-plated
HP Gauge:
HP gauge scale:
0 to 40 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
W (Width) x H (Height) x D (Depth):
240x190x75mm.
