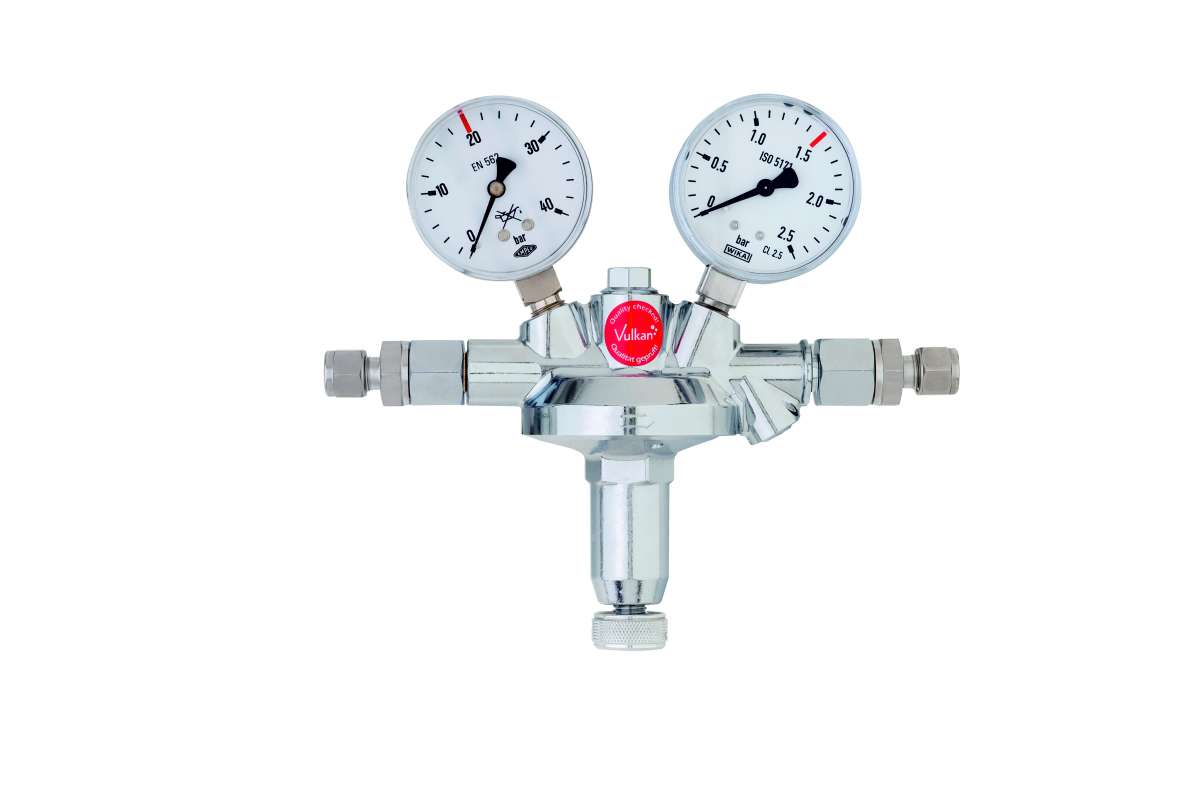

Vulkan L15 LabLine Nitrogen Line Pressure Reducer 0-1.5 bar, fully chrome-plated, with metal diaphragm for gas purity 5.0
Standards & Design:
single-stage design, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 20 bar, adjustable outlet pressure: 0-1
Technical data:
• maximum inlet pressure: 20 bar, adjustable outlet pressure: 0-1
• outlet pressure: 0-1
• output: 8 Nm³/h compressed air at 1
• Inlet: 8 mm stainless steel compression fitting, Outlet: 8 mm stainless steel compression fitting, input pressure gauge: 0-40/20 bar, output pressure gauge: 0-2
• Outlet: 8 mm stainless steel compression fitting, input pressure gauge: 0-40/20 bar, output pressure gauge: 0-2
Dimensions:
width x height x depth: 200 x 190 x 75 mm
Standards & Design:
single-stage design, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 20 bar, adjustable outlet pressure: 0-1
Technical data:
• maximum inlet pressure: 20 bar, adjustable outlet pressure: 0-1
• outlet pressure: 0-1
• output: 8 Nm³/h compressed air at 1
• Inlet: 8 mm stainless steel compression fitting, Outlet: 8 mm stainless steel compression fitting, input pressure gauge: 0-40/20 bar, output pressure gauge: 0-2
• Outlet: 8 mm stainless steel compression fitting, input pressure gauge: 0-40/20 bar, output pressure gauge: 0-2
Dimensions:
width x height x depth: 200 x 190 x 75 mm
Type of Gas:
Nitrogen (N2)
Product type:
Line Pressure Regulators
Regulation Type:
Single stage
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 1,5 Bar
Gas Quality:
up to 5.0 (laboratory gases / laser gases)
Flow rate:
8 Nm³/h
Inlet Connection:
Clamping ring 8 mm
Outlet Connection:
Clamping ring 8 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases | laser gases
Material:
Chrome-plated
HP Gauge:
HP gauge scale:
0 to 40 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
W (Width) x H (Height) x D (Depth):
200x190x75mm.
