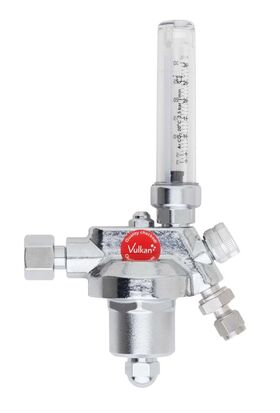

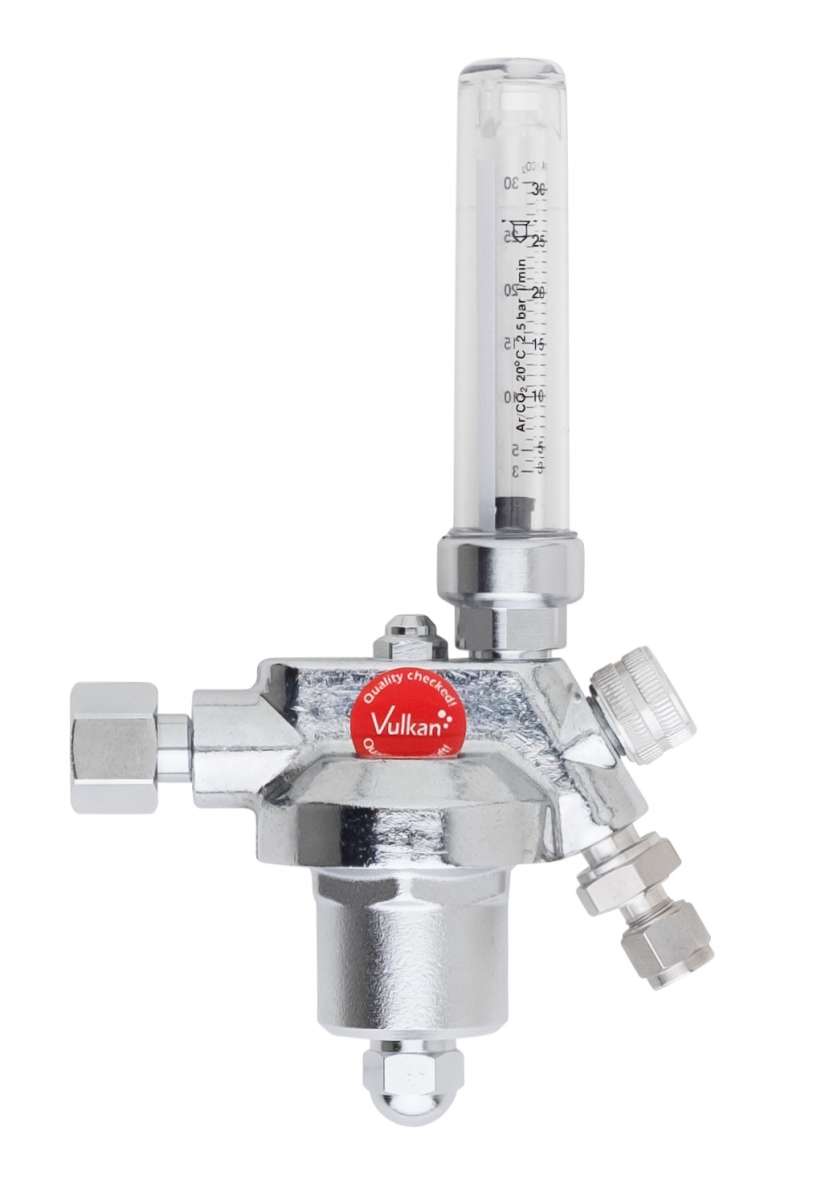

Vulkan E10 F LabLine tapping point pressure regulator with Argon flow meter 1-15 Nl/min. LabLine, fully chrome-plated, based on ISO 2503
Standards & Design:
Class 10
single-stage design, with flow meter for monitoring the exact flow rate in Nl/min for flawless shielded gas welding
according to DIN EN 560
Technical data:
• Maximum inlet pressure: 20 bar
• Output pressure: 2
• Inlet: G 3/8 RHk U-nut according to DIN EN 560
• Outlet: 6 mm double clamp ring
Dimensions:
Width x Height x Depth: 120 x 210 x 65 mm
Standards & Design:
Class 10
single-stage design, with flow meter for monitoring the exact flow rate in Nl/min for flawless shielded gas welding
according to DIN EN 560
Technical data:
• Maximum inlet pressure: 20 bar
• Output pressure: 2
• Inlet: G 3/8 RHk U-nut according to DIN EN 560
• Outlet: 6 mm double clamp ring
Dimensions:
Width x Height x Depth: 120 x 210 x 65 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
0,9 Nm³/h
Flowmeter:
Gas Quality:
up to 5.0
Inlet Connection:
G 3/8 RHak (according to EN 560)
Inlet pressure:
20 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
Clamping ring 6 mm
Product type:
Tapping Points
Regulation Type:
Single stage
Type of Gas:
Carbon Dioxide (CO2)
W (Width) x H (Height) x D (Depth):
120x210x65mm.
