Cylinder regulator 0-10 bar Vulkan F10/200 Effect

Vulkan

Write a review

Gas Quality:

Outlet pressure:

Bar

Type of Gas:

Inlet Connection:

Outlet Connection:

Inlet pressure:

Bar

Material:

HP gauge scale:

Bar

Ask a question

CODE: 226025-006

Description
Features
View all variations as list

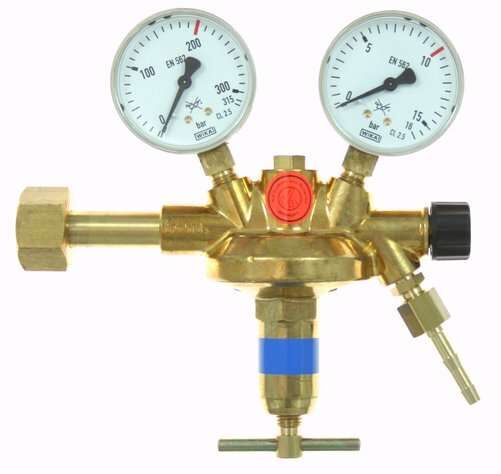

Vulkan F10/200 Effect compressed air cylinder pressure reducer DIN 477-1, 0-10 bar according to ISO 2503 with pre-pressure compensation for constant back pressure under all operating conditions, single-stage design, with shut-off valve, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 0-10 bar adjustable, maximum output: 48 Nm³/h compressed air at 10 bar back pressure. Inlet: G 5/8 RHaf connection screw according to DIN 477-1 No. 13, Outlet (optional special outlet): G 1/4 RHk x 6 mm nozzle according to EN 560, input pressure gauge: 0-315/200 bar, output pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/4 RHk x 6 mm nozzle according to EN 560 Options (surcharge): Item numberGas purityOutlet connection 207005 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 207005-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 207005-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 207005-870 for technical gases up to 4.5, with Standard membrane external thread G3/8" RHk according to EN 560 207005-838 for technical gases up to 4.5, with standard membrane external thread G1/2" RHk according to EN 560 207005-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 207005-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 207005-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 207005-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 207005-2 for technical gases up to 4.5, with standard membrane compression fitting VA 1/8" 207005-4 for technical gases up to 4.5, with standard diaphragm compression fitting VA 1/4" 207005-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G1/4" RHk x 6mm 207005-MM-812 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" RHk x 9mm 207005-MM-800 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G1/4" RHk according to EN560 207005-MM-870 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" RHk according to EN 560 207005-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 207005-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 207005-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 207005-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 207005-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 207005-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 207005-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"

Application:

Automotive Industry
Chemical Industry
Cutting
Manufacturing Industry
Petrochemical Industry
Pharmaceutical Industry
Research & Development
Welding

Blow-off valve:

Class (purpose):

Technical gases

Flow rate:

48 Nm³/h

Flowmeter:

Gas Quality:

up to 4.5

HP Gauge:

HP gauge scale:

0 to 315 Bar

Inlet Connection:

DIN 477-1 No. 6 (W 21.8 x 1/14 RH

Inlet pressure:

200 Bar

LP Gauge:

LP gauge scale:

0 to 16 Bar

Material:

Brass

Non-return valve:

Outlet Connection:

Compression fitting front 6 mm

Outlet pressure:

10 Bar

Product type:

Cylinder regulators

Purge valve:

Regulation Type:

Single stage

Relief valve:

Shut off valve:

Solenoid valve:

Type of Gas:

Helium (He)

W (Width) x H (Height) x D (Depth):

210x190x75mm.

Outlet pressure:

10Bar

CODE	Gas Quality	Outlet pressure	Type of Gas	Inlet Connection	Outlet Connection	Inlet pressure	Material	HP gauge scale	Price
226005-021	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226005-019	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226005-017	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226005-015	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226005-013	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226005-011	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226005-009	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226005-007	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226005-005	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226005-003	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226005-001	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
205676-019	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
205676-017	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
205676-015	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
205676-013	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
205676-011	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
205676-009	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
205676-007	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
205676-005	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
205676-003	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
205676-001	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203061-021	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 1/8"	80	Brass	0 to 160	Contact us for a price
203061-019	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 10 mm	80	Brass	0 to 160	Contact us for a price
203061-017	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 6 mm	80	Brass	0 to 160	Contact us for a price
203061-015	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	External thread G3/8" RHk according to EN 560	80	Brass	0 to 160	Contact us for a price
203061-013	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Hose nozzle G3/8" RHk x 9 mm	80	Brass	0 to 160	Contact us for a price
203061-011	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression ring fitting front 1/4"	80	Brass	0 to 160	Contact us for a price
203061-009	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 12 mm	80	Brass	0 to 160	Contact us for a price
203061-007	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 8 mm	80	Brass	0 to 160	Contact us for a price
203061-005	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	External thread G1/2" RHk according to EN 560	80	Brass	0 to 160	Contact us for a price
203061-003	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	External thread G1/4" RHk according to EN 560	80	Brass	0 to 160	Contact us for a price
203061-001	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	G 1/4 RH x 6 mm (hose grommet)	80	Brass	0 to 160	Contact us for a price
203805-019	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203805-017	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203805-015	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203805-013	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203805-011	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203805-009	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203805-007	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203805-005	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203805-003	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203805-001	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
207005-021	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
207005-019	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
207005-017	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
207005-015	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207005-013	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
207005-011	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
207005-009	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
207005-007	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
207005-005	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207005-003	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207005-001	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204805-019	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204805-017	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204805-015	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204805-013	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204805-011	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204805-009	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204805-007	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204805-005	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204805-003	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204805-001	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
208100-021	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
208100-019	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
208100-017	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
208100-015	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208100-013	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
208100-011	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
208100-009	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
208100-007	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
208100-005	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208100-003	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208100-001	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
226025-021	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226025-019	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226025-017	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226025-015	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226025-013	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226025-011	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226025-009	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226025-007	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226025-005	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226025-003	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226025-001	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204005-019	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204005-017	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204005-015	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204005-013	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204005-011	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204005-009	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204005-007	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204005-005	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204005-003	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204005-001	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203005-022	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203005-020	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203005-018	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203005-016	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203005-014	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203005-012	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	G 1/2 RHak (according to EN 560), G 1/4 RHak (according to EN 560), G 1/4 RH x 6 mm (hose grommet), G 3/8 LH x 9 mm (hose grommet), G 3/8 RHak (according to EN 560), clamping ring 6 mm, clamping ring 8 mm, clamping ring 10 mm, clamping ring 12 mm	200	Brass	0 to 315	Contact us for a price
203005-010	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203005-008	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203005-006	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203005-004	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203005-002	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226005-022	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226005-020	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226005-018	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226005-016	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226005-014	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226005-012	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
226005-010	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226005-008	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226005-006	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226005-004	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226005-002	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
205676-020	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
205676-018	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
205676-016	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
205676-014	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
205676-012	up to 5.0	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
205676-010	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
205676-008	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
205676-006	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
205676-004	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
205676-002	up to 4.5	10	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
203061-022	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression ring fitting front 1/4"	80	Brass	0 to 160	Contact us for a price
203061-020	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 12 mm	80	Brass	0 to 160	Contact us for a price
203061-018	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 8 mm	80	Brass	0 to 160	Contact us for a price
203061-016	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	External thread G1/2" RHk according to EN 560	80	Brass	0 to 160	Contact us for a price
203061-014	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	External thread G1/4" RHk according to EN 560	80	Brass	0 to 160	Contact us for a price
203061-012	up to 5.0	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	G 1/4 RH x 6 mm (hose grommet)	80	Brass	0 to 160	Contact us for a price
203061-010	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 1/8"	80	Brass	0 to 160	Contact us for a price
203061-008	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 10 mm	80	Brass	0 to 160	Contact us for a price
203061-006	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Compression fitting front 6 mm	80	Brass	0 to 160	Contact us for a price
203061-004	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	External thread G3/8" RHk according to EN 560	80	Brass	0 to 160	Contact us for a price
203061-002	up to 4.5	10	Nitrous oxide (N2O)	DIN 477-1 No. 11 (G 3/8 RH)	Hose nozzle G3/8" RHk x 9 mm	80	Brass	0 to 160	Contact us for a price
203805-020	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203805-018	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203805-016	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203805-014	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203805-012	up to 5.0	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
203805-010	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203805-008	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203805-006	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203805-004	up to 4.5	10	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207005-022	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
207005-020	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
207005-018	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
207005-016	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207005-014	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207005-012	up to 5.0	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
207005-010	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
207005-008	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
207005-006	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
207005-004	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207005-002	up to 4.5	10	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
204805-020	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204805-018	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204805-016	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204805-014	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204805-012	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
204805-010	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204805-008	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204805-006	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204805-004	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204805-002	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
208100-022	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
208100-020	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
208100-018	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
208100-016	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208100-014	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208100-012	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
208100-010	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
208100-008	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
208100-006	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
208100-004	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208100-002	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226025-022	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226025-020	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226025-018	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226025-016	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226025-014	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226025-012	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
226025-010	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226025-008	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226025-006	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226025-004	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226025-002	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
204005-020	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204005-018	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204005-016	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204005-014	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204005-012	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
204005-010	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204005-008	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204005-006	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204005-004	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204005-002	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price

Similar products

Cylinder regulator 0-1,5 bar Vulkan F15/2 200 Effect

Gas Quality: up to 4.5, up to 5.0

Outlet Connection: Compression fitting front 1/8", Compression fitting front 6 mm, Compression fitting front 8 mm, Compression fitting front 10 mm, Compression fitting front 12 mm, Compression ring fitting front 1/4", External thread G1/2" RHk according to EN 560, External thread G1/4" RHk according to EN 560, External thread G3/8" RHk according to EN 560, G 1/4 RH x 6 mm (hose grommet), Hose nozzle G3/8" RHk x 9 mm

Quick view
