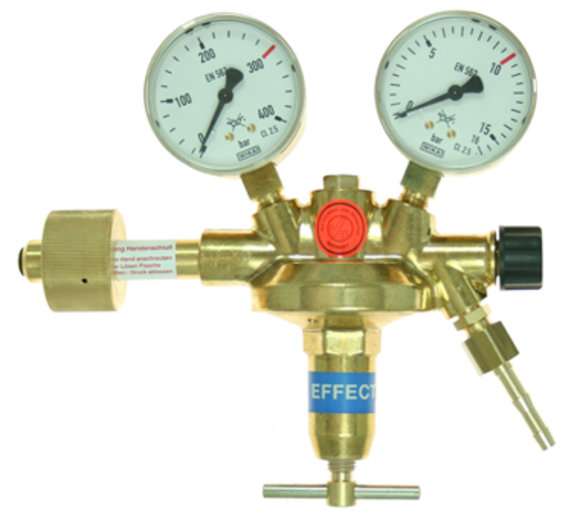

Cylinder regulator forming gas 0-30 Nl/min Vulkan F10/200 Effect

Vulkan

Write a review

Gas Quality:

Outlet pressure:

Bar

Type of Gas:

Inlet Connection:

Outlet Connection:

Inlet pressure:

Bar

Material:

HP gauge scale:

Bar

Ask a question

CODE: 204835-010

Description
Features
View all variations as list

Vulkan F10/200 Effect cylinder pressure reducer for forming gas according to DIN 477-1, 0-30 Nl/min. With pre-pressure compensation for constant back pressure under all operating conditions. Single-stage design, with shut-off valve, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 200 bar. Output pressure: 0-30 Nl/min. 0-10 bar. Maximum output: 30 Nl/min. Forming gas adjustable. Inlet: W21.8x1/14LH U-nut according to DIN 477-1 No. 1. Outlet (optional special outlet): G 3/8 LHk x 9 mm nozzle according to EN 560. Inlet pressure gauge: 0-315/200 bar. Outlet pressure gauge: 0-30 Nl/min. (0-10 bar) Width x Height x Depth: 210 x 190 x 75 mm This cylinder pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G3/8 LHk x 9 mm nozzle according to EN 560 Options (surcharge): Order number Gas purity/diaphragm Outlet screw connection 204835 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 204835-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 204835-814 for technical gases up to 4.5, with standard membrane, external thread G3/8" LHk according to EN 560 204835-830 for technical gases up to 4.5, with standard membrane, external thread G1/2" LHk according to EN 560 204835-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 204835-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 204835-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 204835-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 204835-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 204835-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 204835-MM-815 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" LHk x 6mm 204835-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" LHk x 9mm 204835-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" LHk according to EN 560 204835-MM-830 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/2" LHk according to EN 560 204835-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 204835-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 204835-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 204835-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 204835-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 1/8" 204835-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 1/4"

Application:

Automotive Industry
Chemical Industry
Cutting
Manufacturing Industry
Petrochemical Industry
Pharmaceutical Industry
Research & Development
Welding

Class (purpose):

Technical gases

Flow rate:

1,8 Nm³/h

Gas Quality:

up to 4.5

HP Gauge:

HP gauge scale:

0 to 315 Bar

Inlet Connection:

DIN 477-1 No. 1 (W 21.80 x 1/14 LH)

Inlet pressure:

200 Bar

LP Gauge:

LP gauge scale:

0 to 30 Bar

Material:

Brass

Outlet Connection:

Compression fitting front 1/4"

Outlet pressure:

10 Bar

Product type:

Cylinder regulators

Regulation Type:

Single stage

Shut off valve:

Type of Gas:

Forming gases (mixture)

W (Width) x H (Height) x D (Depth):

210x190x75mm.

Outlet pressure:

10Bar

CODE	Gas Quality	Outlet pressure	Type of Gas	Inlet Connection	Outlet Connection	Inlet pressure	Material	HP gauge scale	Price
204835-019	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204835-017	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204835-015	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204835-013	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204835-011	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204835-009	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204835-007	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204835-005	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204835-003	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204835-001	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204835-020	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204835-018	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204835-016	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204835-014	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204835-012	up to 5.0	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
204835-010	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204835-008	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204835-006	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204835-004	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204835-002	up to 4.5	10	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
