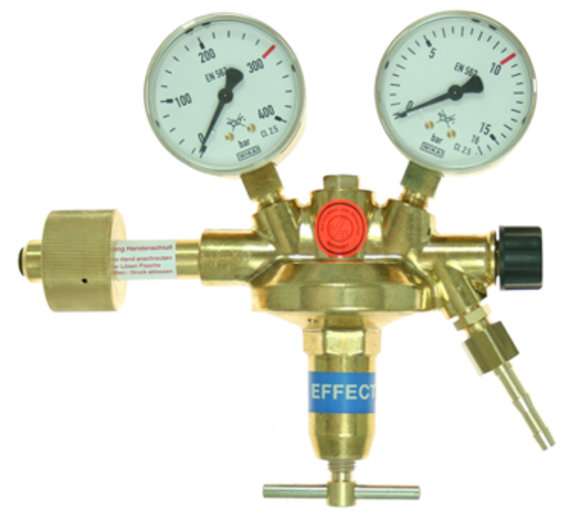

Cylinder regulator forming gas 0-50 Nl/min Vulkan F10/200 Effect

Bottle pressure reducer Vulkan F10/200 Effect forming gas DIN 477-1, 0-50 Nl/min. with pre-pressure compensation for constant back pressure under all working conditions, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve, maximum inlet pressure: 200 bar, maximum output: 50 Nl/min. Forming gas adjustable. Inlet: W 21.8 x 1/14 LH U-nut according to DIN 477-1 No. 1. Outlet: G 3/8 LHk x 9 mm nozzle according to EN 560. Inlet pressure gauge: 0-315/200 bar. Outlet pressure gauge: 0-75/50 Nl/min (0-10 / 6.7 bar). Width x Height x Depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with a standard diaphragm. Optional (surcharge): - for pure gases up to a gas purity of 5.0 with a stainless steel diaphragm made of SS321 (1.4541). Special outlet screw connection: Standard: - G 3/8 LHk x 9 mm nozzle according to EN 560. Options (surcharge): Order number Gas type/Membrane Outlet screw connection 204855 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 204855-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 204855-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 204855-830 for technical gases up to 4.5, with standard membrane External thread G1/2" LHk according to EN 560 204855-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 204855-8M for technical gases up to 4.5, with standard membrane Compression fitting VA 8mm 204855-10M for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 10mm 204855-12M for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 12mm 204855-2 for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 1/8" 204855-4 for technical gases up to 4.5, with standard membrane, compression fitting made of stainless steel 1/4" 204855-MM-815 for pure gases up to 5.0, with metal membrane made of SS321 (1.4541), hose nozzle G3/8" LHk x 6mm 204855-MM for pure gases up to 5.0, with metal membrane made of SS321 (1.4541), hose nozzle G3/8" LHk x 9mm 204855-MM-814 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" LHk according to EN 560 204855-MM-830 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" LHk according to EN 560 204855-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 204855-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 204855-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 204855-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm 204855-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 1/8" 204855-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 1/4"
