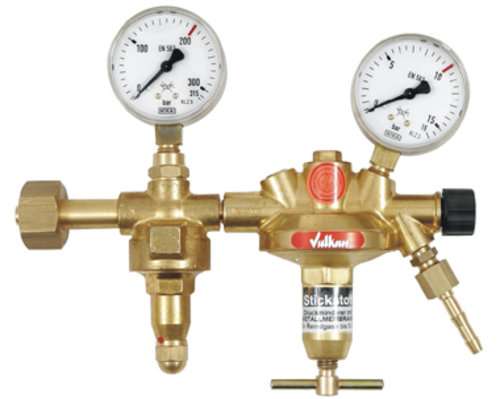

Cylinder regulator Test gas 0-1,5 bar Vulkan F15/2 200 Effect

Cylinder pressure reducer Vulkan F15/2 200 test gases DIN 477-1, 0 - 1.5 bar according to DIN EN ISO 2503, Class 3, two-stage design, TÜV type-tested in accordance with Pressure Equipment Directive 97/23/EC, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 200 bar. Output pressure: 0 - 1.5 bar adjustable. Maximum output: 8 Nm³/h air at 1.5 bar outlet pressure. Inlet: M19x1.5LH U-nut according to DIN 477-1 No. 14. Outlet: G3/8LHk x 9mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 315 / 200 bar. Outlet pressure gauge: 0 - 2.5 / 1.5 bar. Width x Height x Depth: 240 x 190 x 75 mm This cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - hose nozzle G3/8" LHk x 9mm Options (surcharge): Order number Gas purity/membrane Outlet screw connection 203851 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 203851-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 203851-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 203851-838 for technical gases up to 4.5, with standard membrane External thread G1/2" LHk according to EN 560 203851-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 203851-8M for technical gases up to 4.5, with standard membrane Compression fitting VA 8mm 203851-10M for technical gases up to 4.5, with standard membrane Compression fitting VA 10mm 203851-12M for technical gases up to 4.5, with standard membrane Compression fitting VA 12mm 203851-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 203851-4 for technical gases up to 4.5, with Standard diaphragm compression fitting VA 1/4" 203851-MM-815 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 203851-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 203851-MM-814 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" LHk according to EN 560 203851-MM-838 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G1/2" LHk according to EN 560 203851-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 203851-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 203851-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 203851-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 203851-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 203851-MM-4 for pure gases up to 5.0, with Metal membrane SS321 (1.4541) compression fitting VA 1/4"
