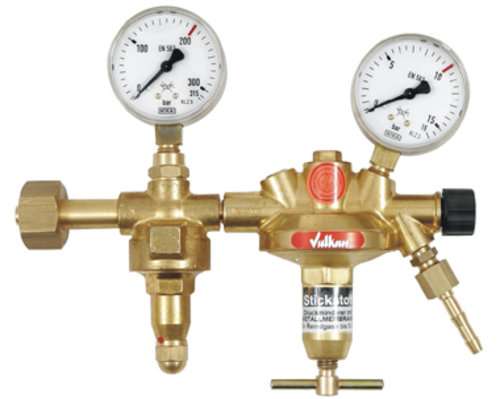

Cylinder regulator 0-1,5 bar Vulkan F15/2 200 Effect

Vulkan

Write a review

Gas Quality:

Outlet pressure:

Bar

Type of Gas:

Inlet Connection:

Outlet Connection:

Inlet pressure:

Bar

Material:

HP gauge scale:

Bar

Ask a question

CODE: 226250-003

Description
Features
View all variations as list

Cylinder pressure reducer Vulkan F15/2 200 test gases DIN 477-1, 0 - 1.5 bar according to DIN EN ISO 2503, Class 3, two-stage design, TÜV type-tested in accordance with Pressure Equipment Directive 97/23/EC, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 200 bar. Output pressure: 0 - 1.5 bar adjustable. Maximum output: 8 Nm³/h air at 1.5 bar outlet pressure. Inlet: M19x1.5LH U-nut according to DIN 477-1 No. 14. Outlet: G3/8LHk x 9mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 315 / 200 bar. Outlet pressure gauge: 0 - 2.5 / 1.5 bar. Width x Height x Depth: 240 x 190 x 75 mm This cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - hose nozzle G3/8" LHk x 9mm Options (surcharge): Order number Gas purity/membrane Outlet screw connection 203851 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 203851-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 203851-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 203851-838 for technical gases up to 4.5, with standard membrane External thread G1/2" LHk according to EN 560 203851-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 203851-8M for technical gases up to 4.5, with standard membrane Compression fitting VA 8mm 203851-10M for technical gases up to 4.5, with standard membrane Compression fitting VA 10mm 203851-12M for technical gases up to 4.5, with standard membrane Compression fitting VA 12mm 203851-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 203851-4 for technical gases up to 4.5, with Standard diaphragm compression fitting VA 1/4" 203851-MM-815 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 203851-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 203851-MM-814 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" LHk according to EN 560 203851-MM-838 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G1/2" LHk according to EN 560 203851-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 203851-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 203851-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 203851-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 203851-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 203851-MM-4 for pure gases up to 5.0, with Metal membrane SS321 (1.4541) compression fitting VA 1/4"

Application:

Automotive Industry
Chemical Industry
Cutting
Manufacturing Industry
Petrochemical Industry
Pharmaceutical Industry
Research & Development
Welding

Blow-off valve:

Flow rate:

8 Nm³/h

Flowmeter:

Gas Quality:

up to 4.5

HP Gauge:

HP gauge scale:

0 to 315 Bar

Inlet Connection:

DIN 477-1 No. 6 (W 21.8 x 1/14 RH

Inlet pressure:

200 Bar

LP Gauge:

LP gauge scale:

0 to 2,5 Bar

Material:

Brass

Non-return valve:

Outlet Connection:

External thread G1/4" RHk according to EN 560

Outlet pressure:

1,5 Bar

Product type:

Cylinder regulators

Purge valve:

Regulation Type:

Double stage

Relief valve:

Shut off valve:

Solenoid valve:

Type of Gas:

Argon (Ar)

W (Width) x H (Height) x D (Depth):

240x190x75mm.

Outlet pressure:

1,5Bar

CODE	Gas Quality	Outlet pressure	Type of Gas	Inlet Connection	Outlet Connection	Inlet pressure	Material	HP gauge scale	Price
208250-022	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
208250-020	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
208250-018	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
208250-016	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208250-014	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208250-012	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
208250-010	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
208250-008	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
208250-006	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
208250-004	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208250-002	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
22625026-022	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
22625026-020	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
22625026-018	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
22625026-016	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
22625026-014	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
22625026-012	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
22625026-010	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
22625026-008	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
22625026-006	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
22625026-004	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
22625026-002	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226250-022	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226250-020	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226250-018	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226250-016	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226250-014	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226250-012	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
226250-010	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226250-008	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226250-006	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226250-004	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226250-002	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
204250-019	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204250-017	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204250-015	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204250-013	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204250-011	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204250-009	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204250-007	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204250-005	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204250-003	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204250-001	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203250-022	up to 5.0	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203250-020	up to 5.0	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203250-018	up to 5.0	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203250-016	up to 5.0	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203250-014	up to 5.0	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203250-012	up to 5.0	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203250-010	up to 4.5	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203250-008	up to 4.5	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203250-006	up to 4.5	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203250-004	up to 4.5	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203250-002	up to 4.5	1,5	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
208250-021	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
208250-019	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
208250-017	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
208250-015	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208250-013	up to 5.0	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
208250-011	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
208250-009	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
208250-007	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
208250-005	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208250-003	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208250-001	up to 4.5	1,5	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
22625026-021	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
22625026-019	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
22625026-017	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
22625026-015	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
22625026-013	up to 5.0	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
22625026-011	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
22625026-009	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
22625026-007	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
22625026-005	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
22625026-003	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
22625026-001	up to 4.5	1,5	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
226250-021	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226250-019	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226250-017	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226250-015	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226250-013	up to 5.0	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226250-011	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226250-009	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226250-007	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226250-005	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226250-003	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226250-001	up to 4.5	1,5	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204250-020	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204250-018	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204250-016	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204250-014	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204250-012	up to 5.0	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
204250-010	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204250-008	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204250-006	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/4" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204250-004	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
204250-002	up to 4.5	1,5	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203250-021	up to 4.5	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203250-019	up to 4.5	1,5	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting 15 mm	200	Brass	0 to 315	Contact us for a price
203250-017	up to 4.5	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203250-015	up to 4.5	1,5	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 18 mm	200	Brass	0 to 315	Contact us for a price
203250-013	up to 4.5	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203250-011	up to 4.5	1,5	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression ring fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203250-009	up to 4.5	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203250-007	up to 4.5	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203250-005	up to 5.0	1,5	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	G 1/2 RHak (according to EN 560)	200	Brass	0 to 315	Contact us for a price
203250-003	up to 5.0	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203250-001	up to 5.0	1,5	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting 15 mm	200	Brass	0 to 315	Contact us for a price
