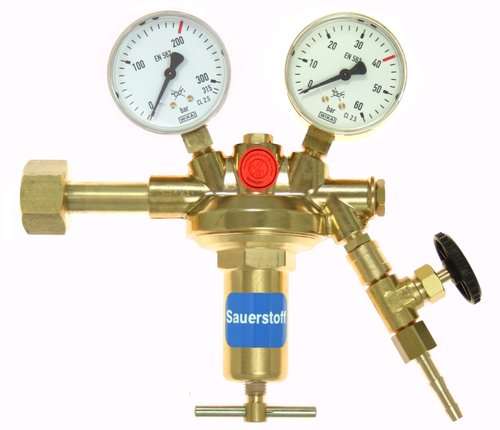

Main regulator 0-40 bar Vulkan H40/200 Effect

Vulkan

Write a review

Gas Quality:

Outlet pressure:

Bar

Type of Gas:

Inlet Connection:

Outlet Connection:

Inlet pressure:

Bar

Material:

HP gauge scale:

Bar

Ask a question

CODE: 203350-002

Description
Features
View all variations as list

Main pressure reducer Vulkan H40/200 Effect Nitrogen DIN 477-1, 0-40 bar, 120 Nm?/h according to DIN EN ISO 7291, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN 562. Maximum inlet pressure: 200 bar. Output pressure: 0-40 bar adjustable. Maximum output: 120 Nm?/h compressed air at 40 bar back pressure. Inlet: W24.32x1/14RHf U-nut according to DIN 477, Outlet: G 1/2 RHak according to DIN EN 560. Inlet pressure gauge: 0-315/200 bar. Outlet pressure gauge: 0-100/40 bar. Width x Height x Depth: 200 x 210 x 75 mm. This main pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/2RHak according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 203540 for technical gases up to 4.5, with standard membrane G1/2RHak according to EN 560 203540-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 203540-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 203540-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 203540-8M for technical gases up to 4.5, with standard membrane Compression fitting VA 8mm 203540-10M for technical gases up to 4.5, with standard membrane Compression fitting VA 10mm 203540-12M for technical gases up to 4.5, with standard membrane Compression fitting VA 12mm 203540-15M for technical gases up to 4.5, with standard membrane Compression fitting VA 15mm 203540-18M for technical gases up to 4.5, with standard membrane Compression fitting VA 18mm 203540-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) G1/2RHak according to EN 560 203540-MM-800 for pure Gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 203540-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 203540-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 203540-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 203540-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 203540-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 203540-MM-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 15mm 203540-MM-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 18mm

Application:

Automotive Industry
Chemical Industry
Cutting
Manufacturing Industry
Petrochemical Industry
Pharmaceutical Industry
Research & Development
Welding

Blow-off valve:

Class (purpose):

Technical gases

Flow rate:

120 Nm³/h

Flowmeter:

Gas Quality:

up to 4.5

HP Gauge:

HP gauge scale:

0 to 315 Bar

Inlet Connection:

DIN 477-1 No. 10 (W 24.32 x 1/14 RH)

Inlet pressure:

200 Bar

LP Gauge:

LP gauge scale:

0 to 100 Bar

Material:

Brass

Non-return valve:

Outlet Connection:

Hose nozzle G3/8" RHk x 9 mm

Outlet pressure:

40 Bar

Product type:

Cylinder regulators

Purge valve:

Regulation Type:

Single stage

Relief valve:

Shut off valve:

Solenoid valve:

Type of Gas:

Nitrogen (N2)

W (Width) x H (Height) x D (Depth):

200x210x75mm.

Outlet pressure:

40Bar

CODE	Gas Quality	Outlet pressure	Type of Gas	Inlet Connection	Outlet Connection	Inlet pressure	Material	HP gauge scale	Price
203350-008	up to 5.0	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203350-006	up to 5.0	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
203350-004	up to 4.5	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203350-002	up to 4.5	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
203350-007	up to 5.0	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression ring fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203350-005	up to 5.0	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203350-003	up to 5.0	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203350-001	up to 4.5	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	G 1/2 RHak (according to EN 560)	200	Brass	0 to 315	Contact us for a price
